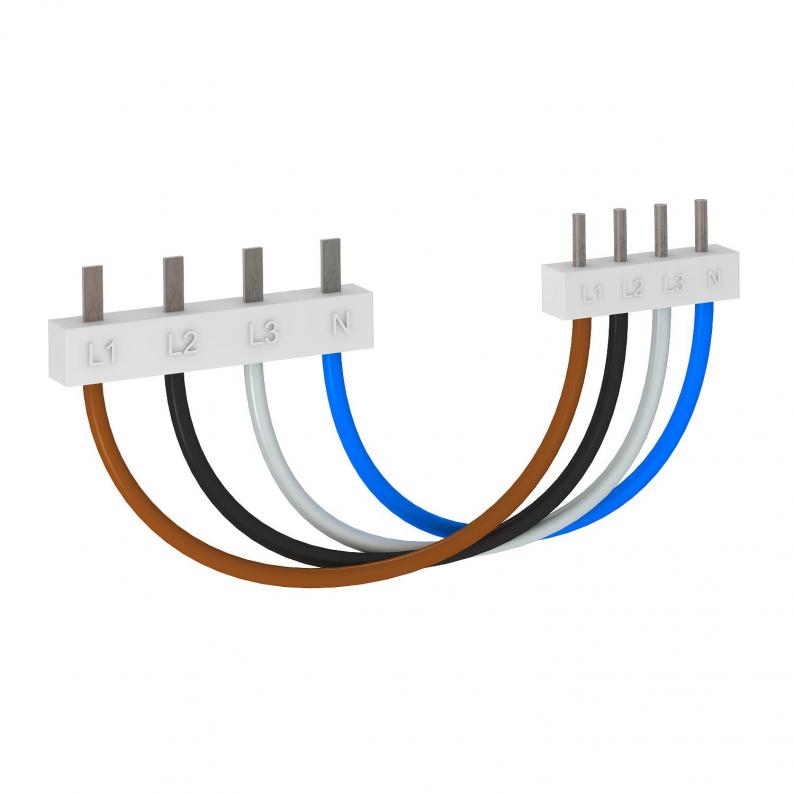

Connecting bridge for V10 Compact 200 mm
Type VB-V10 COMPACT-2 | Item no. 5089650 | EAN 4012195237341
Item no. / Type
5089650 / VB-V10 COMPACT-2
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description
To bridge V10 Compact e.g. to FI protection switches in a 17.5 mm grid.
• 4-pole version (L1; L2; L3; N)
• Conductor: H07V-K 4 mm²
• V10 Compact connection via pin contact (diameter: 2.7 mm)
• FI protection switch connection via flat contact (4 x 1.5 mm)
• 4-pole version (L1; L2; L3; N)
• Conductor: H07V-K 4 mm²
• V10 Compact connection via pin contact (diameter: 2.7 mm)
• FI protection switch connection via flat contact (4 x 1.5 mm)
Technical data

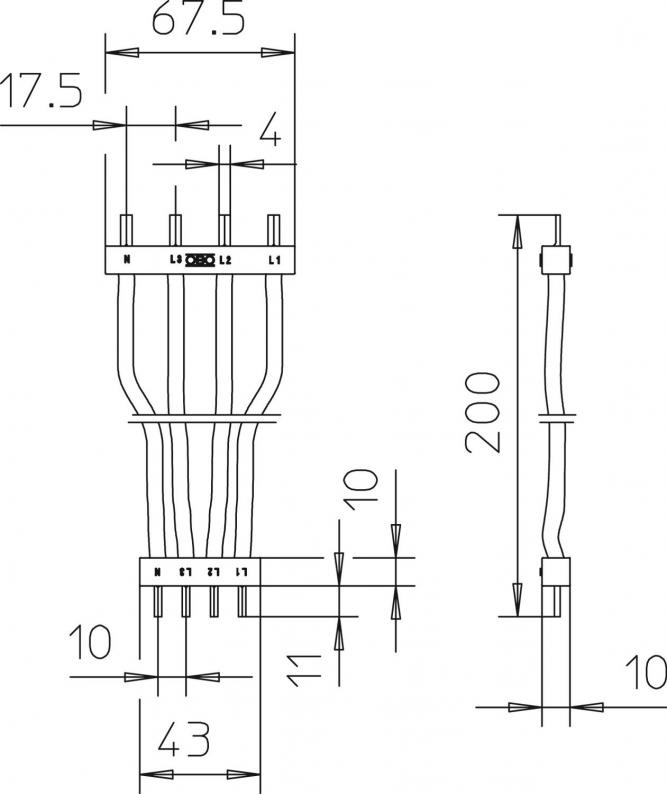

Dimensions
| Length | 200 mm |
|---|---|
| Width | 67,5 mm |
| Height | 10 mm |
Technical data
| Protection rating | IP20 |
|---|---|
| Pole version | 4 |
| Version for | 200 mm |
| Connecting cable length | 0,2 m |
| Dimension | 200mm |
