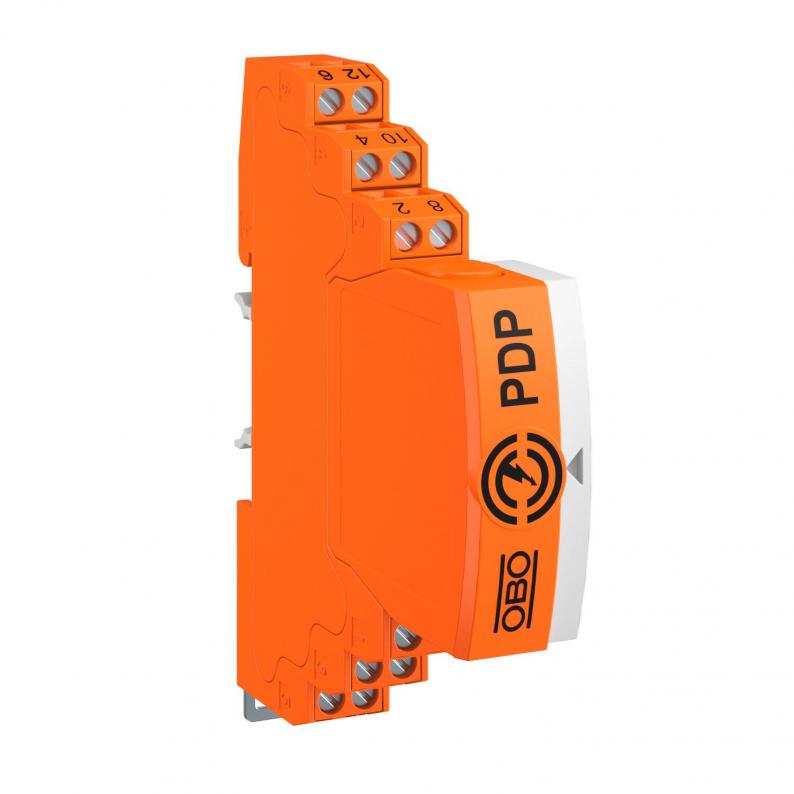

Connectable data cable protection, 2x2-pole, direct earthing, with visual signalling, 5 V

Connectable data cable protection, 2x2-pole, direct earthing, with visual signalling, 5 V

Type PDP-2x2-5-D-OS | Item no. 5080357 | EAN 4012196742240

Show all variants
Item no. / Type
Maximum continuous voltage AC
Maximum continuous voltage DC
Number of poles
4
Plug-in system
Terminal
Version for
2x2-pole

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Plug-in data cable protection type 1+2/D1=C2 for the use in measurement, control and regulation technology

• Protective device for multi-wire systems
• Direct shield earthing
• Frequency range to 100 MHz
• Earthing possible via the DIN rail or the connection cable
• Narrow structural width of 17.5 mm
• Hight level of system availability – no signal disruption without protection module
• With visual signalling and the option for remote signalling via the voltage supply PDP-PS
• Integrated bus connector included

Application: Universal lightning and surge protection for data transmission devices in MCR technology.
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Measuring, controlling and regulating systems
  • Transition from LPZ 0 to LPZ 2
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)

Technical data

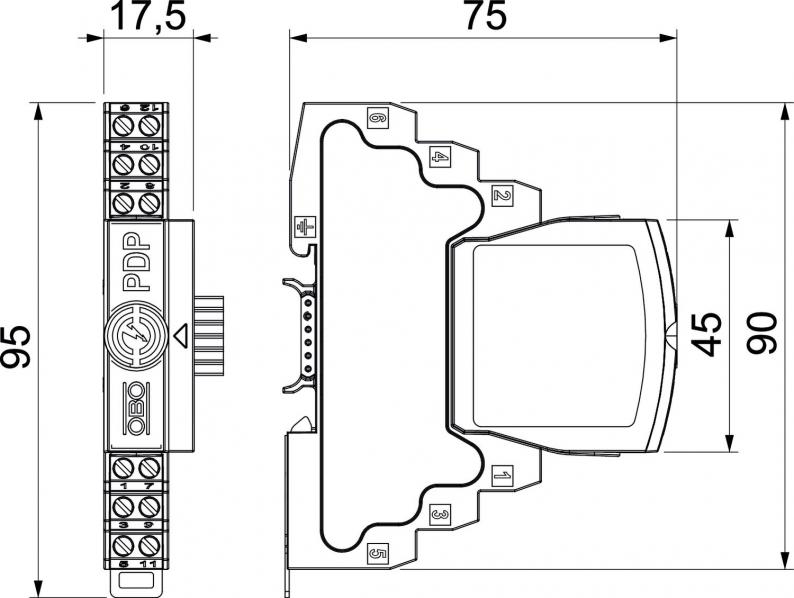

Dimensions

Length75 mm
Width17,5 mm
Height95 mm

Technical data

Number of poles4
Lengthwise resistance1.2 ± 5%
Signalling on deviceNone
Plug-in systemTerminal
Protection level wire-wire100 V
Protection level wire-earth850 V
Protection ratingIP20
Testing standardIEC 61643-21
Series resistance per wire1,2 Ω ± 5%
Total impulse durability into C2 (8/20)20 kA
Capacity (wire-wire)≤30 pF
Capacity (wire-earth)≤30 pF
Earthing via:Connection cable / DIN rail
Mounting of input / outputScrew terminals
Shielding connection availableyes
ScreeningDirect
Impulse durability wire-wire10 kV / 5 kA
Impulse durability wire-earth10 kV / 5 kA
Total discharge current (10/350)5 kA
Total discharge current (8/20)20 kA
Nominal load current DC0,6 A
Nominal load current AC0,425 A
Maximum continuous voltage AC4,2 V
Maximum continuous voltage DC6 V
Nominal discharge current (8/20 µs)10 kA
Cut-off frequency100 MHz
Version for2x2-pole
SPD to IEC 61643-21Class I+II / D1+C2
KategorieType 1+2 / D1+C2
SPD to IEC 61643-1Class I+II
SPD to EN 61643-11Type 1+2
Lightning protection zone LPZ0→2
Lightning impulse current2,5 kA
Insertion loss≤3 dB
Connection cross-section, rigid, max.2,5 mm²
Connection cross-section, multi-wire, max.2,5 mm²
Connection cross-section, multi-wire, min.0,14 mm²
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Dimension5V
CO2 Footprint (GWP) Cradle-to-Gate0,7765 kg CO2e / 1 Piece

Connectivity options

Connection cross-section, rigid, min.0,14 mm²
Connection cross-section, flexible, max.1,5 mm²
Connection cross-section, flexible, min.0,14 mm²

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (1)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

Maximum continuous voltage AC
Maximum continuous voltage DC
PDP-2x2-5-D-OS
Item no.
5080357
Number of poles
4
Plug-in system
Terminal
Maximum continuous voltage AC
4,2
Maximum continuous voltage DC
6
Version for
2x2-pole
PDP-2x2-12-D-OS
Item no.
5080359
Number of poles
4
Plug-in system
Terminal
Maximum continuous voltage AC
12
Maximum continuous voltage DC
16
Version for
2x2-pole
PDP-2x2-24-D-OS
Item no.
5080361
Number of poles
4
Plug-in system
Terminal
Maximum continuous voltage AC
21
Maximum continuous voltage DC
30
Version for
2x2-pole
PDP-2x2-48-D-OS
Item no.
5080364
Number of poles
4
Plug-in system
Terminal
Maximum continuous voltage AC
37
Maximum continuous voltage DC
52
Version for
2x2-pole
