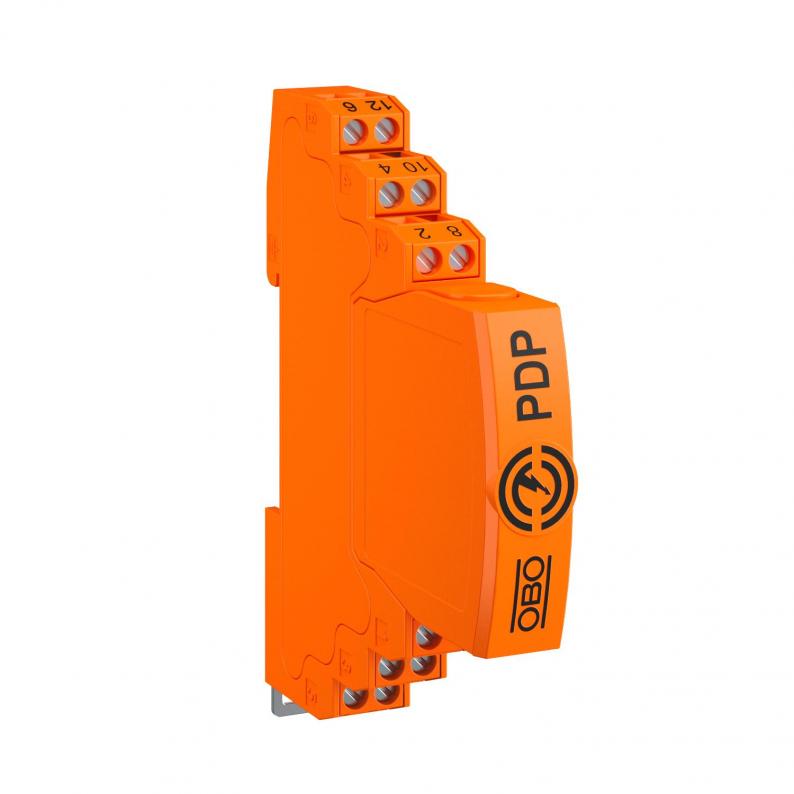

Connectable data cable protection, 2-pole, direct earthing, 24 V

Connectable data cable protection, 2-pole, direct earthing, 24 V

Type PDP-2-24-D | Item no. 5080305 | EAN 4012196741922

Show all variants
Item no. / Type
Maximum continuous voltage AC
Maximum continuous voltage DC
Number of poles
2
Plug-in system
Terminal
Version for
2-pole

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Pluggable data line protection, type 1+2/D1+C2 for use in measurement and control technology


• Protection device for multi-wire systems

• Direct shield earthing

• Frequency range up to 100 MHz

• Earthing via DIN rail or connection cable

• Installation width from 12.5 mm

• High system availability – no signal interruption without protection module


Application: Universal lightning and surge protection for MCR data transmission devices.
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Measuring, controlling and regulating systems
  • Transition from LPZ 0 to LPZ 2
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)

Technical data

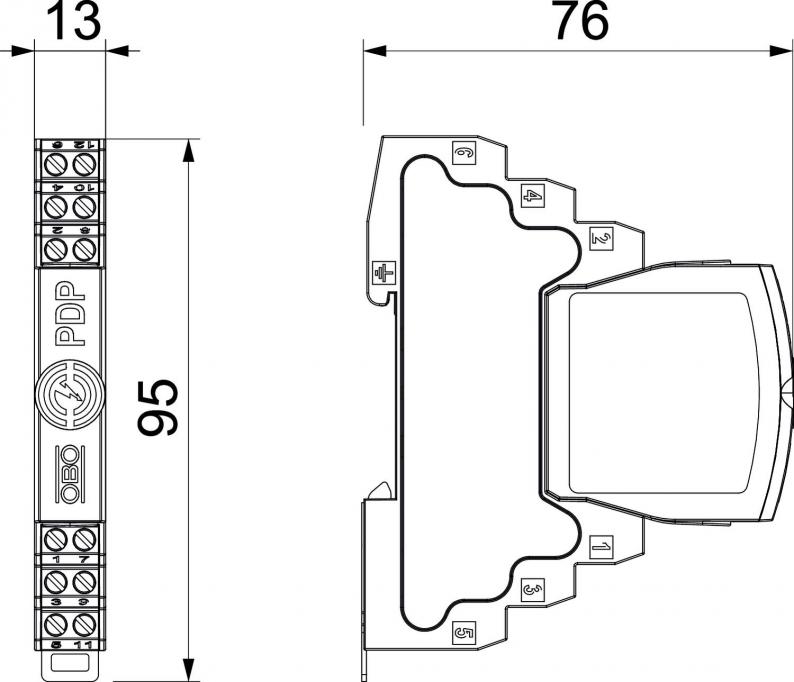

Dimensions

Length76 mm
Width13 mm
Height95 mm

Technical data

Number of poles2
Lengthwise resistance1.2 ± 5%
Signalling on deviceNone
Plug-in systemTerminal
Protection level wire-wire150 V
Protection level wire-earth850 V
Protection ratingIP20
Testing standardIEC 61643-21
Series resistance per wire1,2 Ω ± 5%
Total impulse durability into C2 (8/20)20 kA
Capacity (wire-wire)≤30 pF
Capacity (wire-earth)≤30 pF
Earthing via:Connection cable / DIN rail
Mounting of input / outputScrew terminals
Shielding connection availableyes
ScreeningDirect
Impulse durability wire-wire10 kV / 5 kA
Impulse durability wire-earth10 kV / 5 kA
Total discharge current (10/350)5 kA
Total discharge current (8/20)20 kA
Nominal load current DC0,6 A
Nominal load current AC0,425 A
Maximum continuous voltage AC21 V
Maximum continuous voltage DC30 V
Nominal discharge current (8/20 µs)10 kA
Cut-off frequency100 MHz
Version for2-pole
SPD to IEC 61643-21Class I+II / D1+C2
KategorieType 1+2 / D1+C2
SPD to IEC 61643-1Class I+II
SPD to EN 61643-11Type 1+2
Lightning protection zone LPZ0→2
Lightning impulse current2,5 kA
Insertion loss≤3 dB
Connection cross-section, rigid, max.2,5 mm²
Connection cross-section, multi-wire, max.2,5 mm²
Connection cross-section, multi-wire, min.0,14 mm²
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Dimension24V
CO2 Footprint (GWP) Cradle-to-Gate0,6555 kg CO2e / 1 Piece

Connectivity options

Connection cross-section, rigid, min.0,14 mm²
Connection cross-section, flexible, max.1,5 mm²
Connection cross-section, flexible, min.0,14 mm²

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Maximum continuous voltage AC
Maximum continuous voltage DC
PDP-2-5-D
Item no.
5080301
Number of poles
2
Plug-in system
Terminal
Maximum continuous voltage AC
4,2
Maximum continuous voltage DC
6
Version for
2-pole
PDP-2-12-D
Item no.
5080303
Number of poles
2
Plug-in system
Terminal
Maximum continuous voltage AC
12
Maximum continuous voltage DC
16
Version for
2-pole
PDP-2-24-D
Item no.
5080305
Number of poles
2
Plug-in system
Terminal
Maximum continuous voltage AC
21
Maximum continuous voltage DC
30
Version for
2-pole
PDP-2-48-D
Item no.
5080307
Number of poles
2
Plug-in system
Terminal
Maximum continuous voltage AC
37
Maximum continuous voltage DC
52
Version for
2-pole
