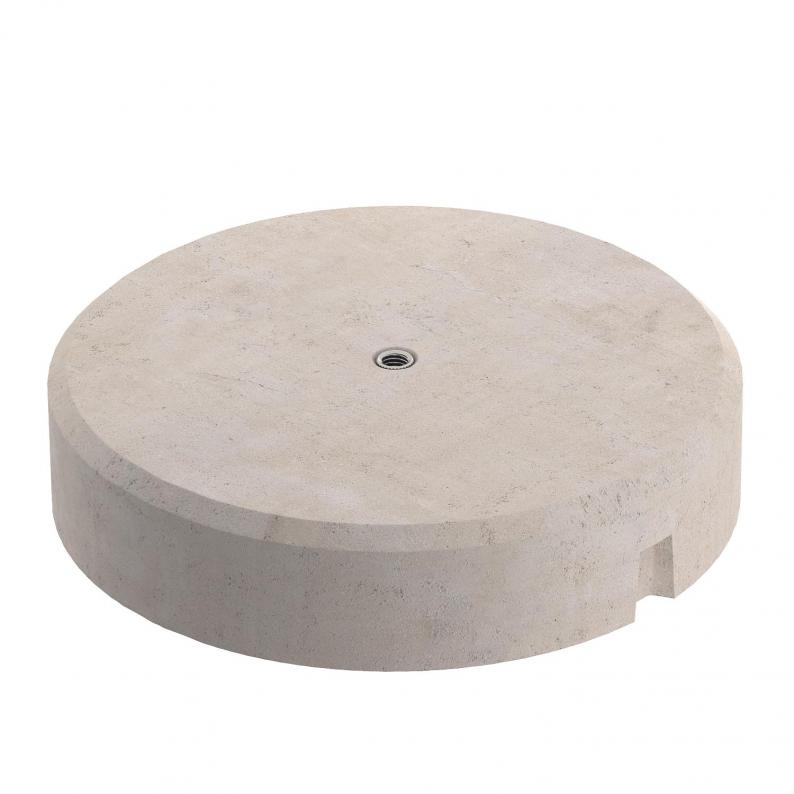

Concrete base min. 16 kg with female thread
Type 101 B2-16 M16
|Item no. 5402958
|EAN 4012196389766
Item no. / Type
5402958 / 101 B2-16 M16
Smallest selling unit: 1 piece
1piece
piece
Description
• Weight min. 16 kg
• Frost-resistant concrete
• Female thread M16
• Recommended air-termination rod length max. 3.0 m, depending on wind load zone
• Frost-resistant concrete
• Female thread M16
• Recommended air-termination rod length max. 3.0 m, depending on wind load zone
Technical data
Technical data

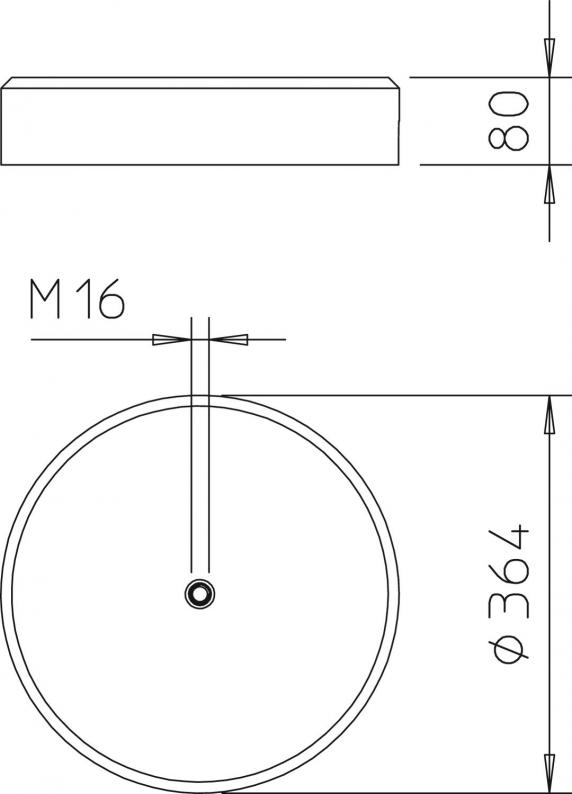

| Nominal size Ø | 364 mm |
|---|---|
| Diameter | 364 mm |
| Thread | M16 |
| Air-termination rod holder | Thread |
| Weight | 16 kg |
| Version for | Base |
| Dimension | M16 |
| Material | Concrete |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,3656 kg CO2e / 1 Piece |
