Compressed air tap for industrial pole
Type ISS160160DLA | Item no. 6290495 | EAN 4012196258659
Item no. / Type
6290495 / ISS160160DLA
Smallest selling unit: 1 piece
1piece
Description

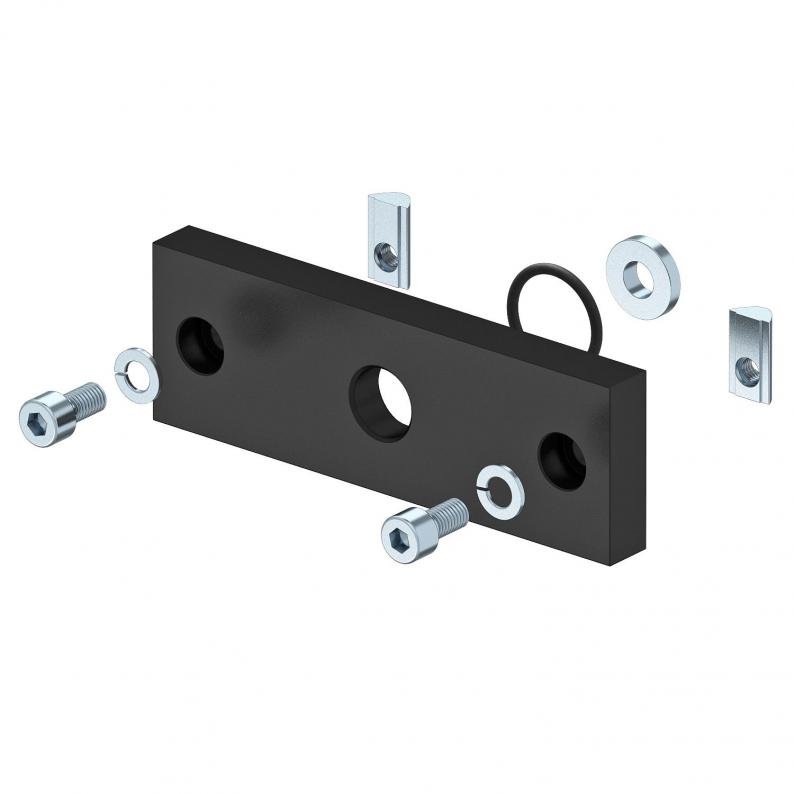

Tap to take off compressed air from the ISS industrial pole profile. The compressed air tap has a G 1/2 (ISO 228-1) threaded hole to accept a standard compressed air coupling. The unit can be mounted onto the pole profile using slot nuts and fastening screws. For the creation of an appropriate outlet for the compressed air a drilling template is supplied.
Technical data

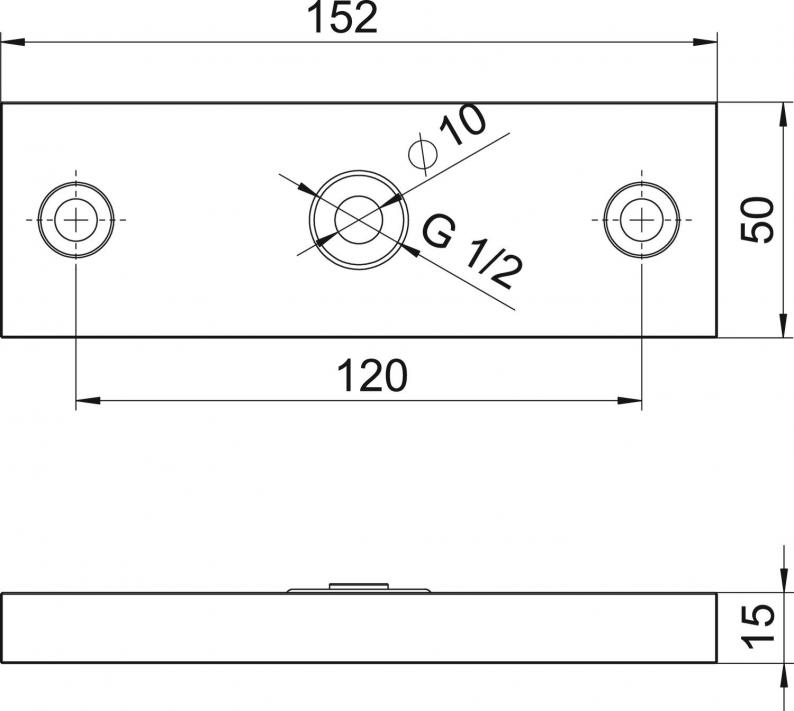

Dimensions
| Length | 152 mm |
|---|---|
| Width | 50 mm |
| Height | 15 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Dimension | 152x50x15mm |
| Material | Aluminium |
| Colour | Jet black; RAL 9005 |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,9956 kg CO2e / 1 Piece |
