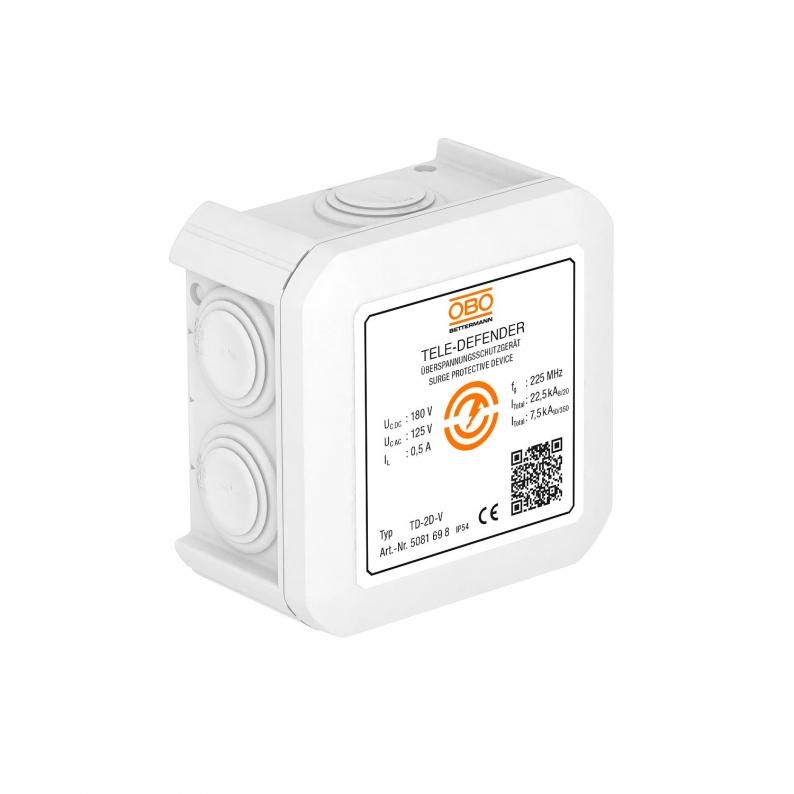

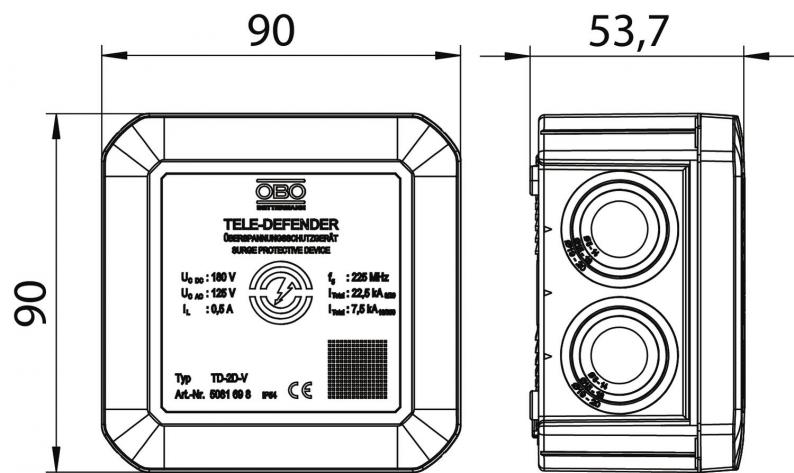

Combination protection device TD-2D-V for VDSL systems

Combination protection device TD-2D-V for VDSL systems

Type TD-2D-V
|
Item no. 5081698
|
EAN 4012196427444
Show all variants
Item no. / Type
5081698 / TD-2D-V
Number of poles
2
Plug-in system
Terminal

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Data cable protection device for telecommunications equipment


• Low protection level at a high current load

• "Push-in" clamps for quick installation

• Bandwidth-optimised for secure transmission up to 225 MHz

• Surface mounting


Application: Ideal for all DSL systems, IP connections, ISDN or analogue telecommunications


  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Transition from LPZ 0 to LPZ 3
  • Integrated Service Digital Network, ISDN applications
  • Digital Subscriber Line, DSL applications
  • Analogue telecommunication
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Number of poles2
Telecommunications contactno
Signalling on deviceWithout
Plug-in systemTerminal
Protection level wire-wire<350 V
Protection level wire-earth<600 V
Protection ratingIP54
Testing standardIEC 61643-21
Series resistance per wire2,2 Ω ± 5 %
Capacity (wire-wire)<10 pF
Capacity (wire-earth)<20 pF
Explosion-tested versionno
Insulation resistance>10 MΩ
Shielding connection availableyes
ScreeningDirect
Impulse durability wire-wireC2: 15 kV / 7,5 kA (8/20µs)
Impulse durability wire-earthC2: 15 kV / 7,5 kA (8/20µs)
Total discharge current (10/350)D1: 7,5 kA
Total discharge current (8/20)22,5 kA
Nominal load current DC0,5 A
Nominal load current AC0,35 A
Arrestor monitoringno
Maximum continuous voltage AC125 V
Maximum continuous voltage DC180 V
Cut-off frequency225 MHz
SPD to IEC 61643-21Class I+II+III / D1+C2+C1
KategorieType 1+2+3 / D1+C2+C1
Lightning protection zone LPZ0→3
Lightning impulse current2,5 kA
Insertion loss≤3 dB
Connection cross-section, rigid, max.1,5 mm²
Connection cross-section, multi-wire, min.0,14 mm²
Connection cross-section, multi-wire, max.1 mm²
Permitted temperature range, min.-40 °C
Permitted temperature range, max.80 °C
Dimension180V
MaterialPlastic
ColourWhite
CO2 Footprint (GWP) Cradle-to-Gate0,3886 kg CO2e / 1 Piece

Connectivity options

Connection cross-section, rigid, min.0,08 mm²
Connection cross-section, flexible, min.0,14 mm²
Connection cross-section, flexible, max.1 mm²
