Combination arrester V50, 1-pole + NPE 280 V

Combination arrester V50, 1-pole + NPE 280 V

Type VG-V50-1+NPE-280 | Item no. 5093594 | EAN 4012196423217

Show all variants
Item no. / Type
Maximum continuous voltage AC
Pole version
Protection rating
IP66

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Lightning current combination arrester, type 1+2 to DIN EN 61643-11

• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)

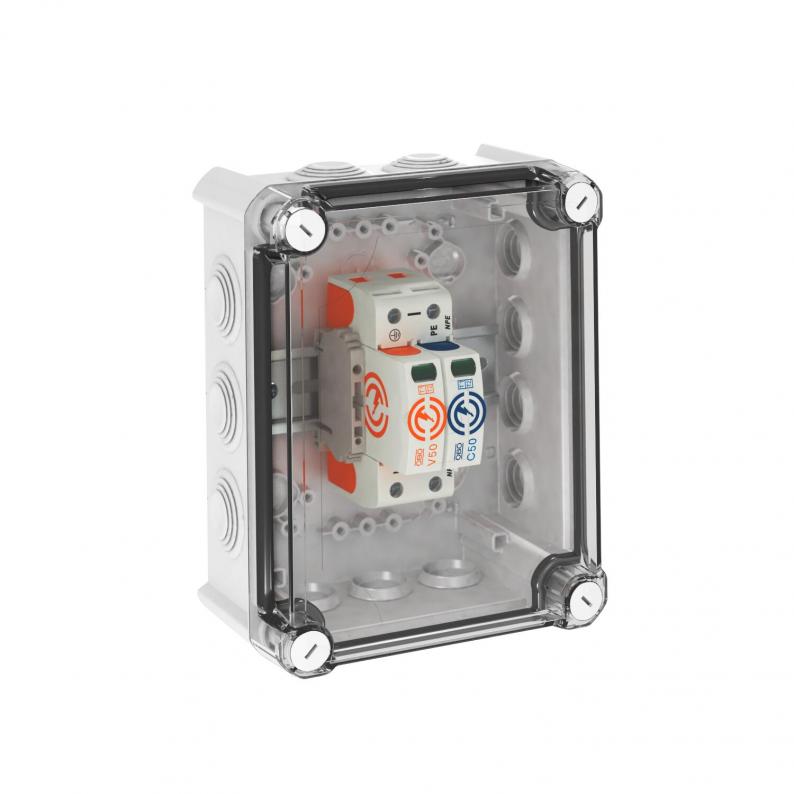

• Complete unit, pre-mounted and ready for connection in polycarbonate housing (IP66)
• Lightning current arresting capacity 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total

Application: Lightning protection equipotential bonding for buildings of Class III and IV.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!




* Complete = upper part and base
  • Underwriters Laboratories Inc., USA
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • 5-year warranty
  • Transition from LPZ 0 to LPZ 2
  • Combination protection device made of type 1 and type 2
  • Halogen-free; without chlorine, fluorine and bromine
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Pole number1
Network formOther
Blow-outno
Signalling on deviceVisual
Protection ratingIP66
Maximum continuous voltage (L-N)280 V
Maximum continuous voltage (N-PE)255 V
Nominal discharge current (8/20 µs) [L-N]30 kA
Lightning surge current (10/350)25 kA
Maximum discharge current (8/20 μs) [L-N]50 kA
Remote signallingno
Nominal voltage AC (50/60 Hz)230 V
Integrated back-up fuseno
Lightning surge current (10/350 μs)12,5 kA
Protection level [L-N]≤1,3
Maximum continuous voltage AC280 V
Maximum continuous voltage DC350 V
Nominal discharge current (8/20 µs)30 kA
Pole version1+N/PE
Installation typePre-mounted in the housing
Max. mains-side overcurrent protection160 A gL/gG
Residual voltage [L-N] @ 5 kA0,8 kV
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Residual voltage [L-N] @ 1 kA0,7 kV
TOV voltage [L-N] ‒ withstand mode ‒ 5 s335 V
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.440 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms1200 V
SPD to UL 1449Type 4
Minimum distance1,5 mm
ApprovalsVDE, UL, ÖVE
Conductor cross-section, flexible (fine-wire), max.2 AWG
TN network formyes
TN-C-S network formyes
TN-S network formyes
TT network formyes
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Torque4 Nm
SPD to IEC 61643-1Class I+II
SPD to EN 61643-11Type 1+2
Maximum discharge current (8/20 μs)50 kA
Follow current quenching capacity (eff) [N-PE]0,1 kA
Response time<25 ns
Maximum back-up fuse160 A
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Residual voltage [L-N] @ 12.5 kA1 kV
Dimension280V
CO2 Footprint (GWP) Cradle-to-Gate3,6301 kg CO2e / 1 Piece

Connectivity options

Conductor cross-section, flexible (fine-wire), max.35 mm²
Conductor cross-section, flexible (fine-wire), min.1,5 mm²
Connection cross-section, FM terminals, max.1,5 mm²
Connection cross-section, FM terminals, min.0,5 mm²
Connection cross-section, FM terminals, max.16 AWG
Connection cross-section, FM terminals, min.21 AWG
Arrester surge current (8/20 µs) [total]50 kA
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.2 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.16 AWG
