Closed FireBox T160, empty
Type T160E 0VA
|Item no. 7205782
|EAN 4012196820245
Item no. / Type
Clear internal dimensions
Protection rating
IP66
Colour
Pastel orange; RAL 2003
Smallest selling unit: 1 piece
1piece
piece
Description

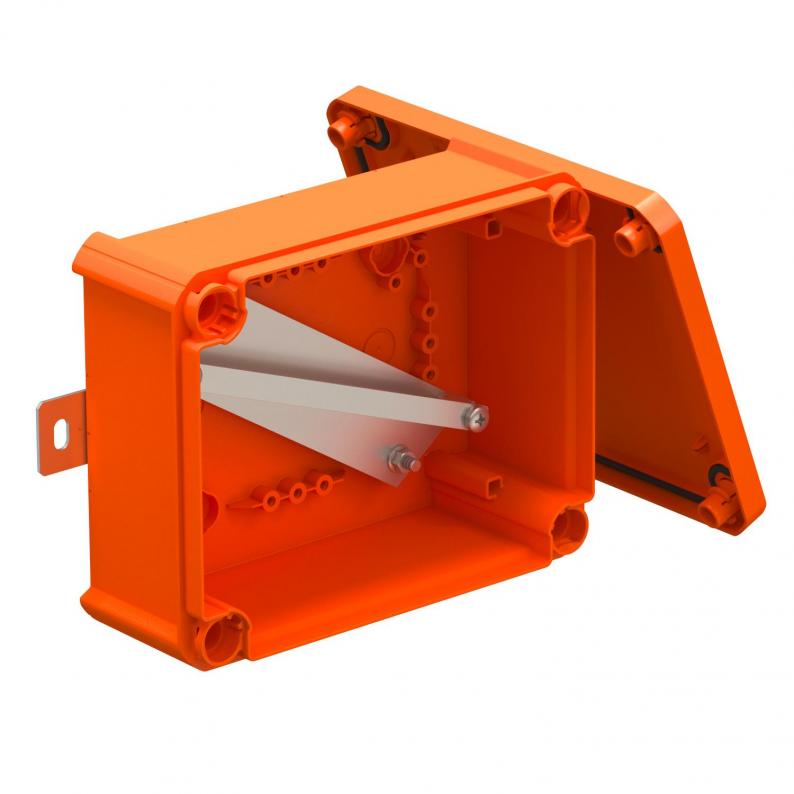

Unequipped, closed connection or junction box for free termination with ceramic terminals and cable glands. Dimension A states the available support rail length for the wiring terminals. Sufficiently large wiring compartment through diagonally arranged support rail. Fastening on easily accessible external flaps made of stainless steel. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90.
Technical data

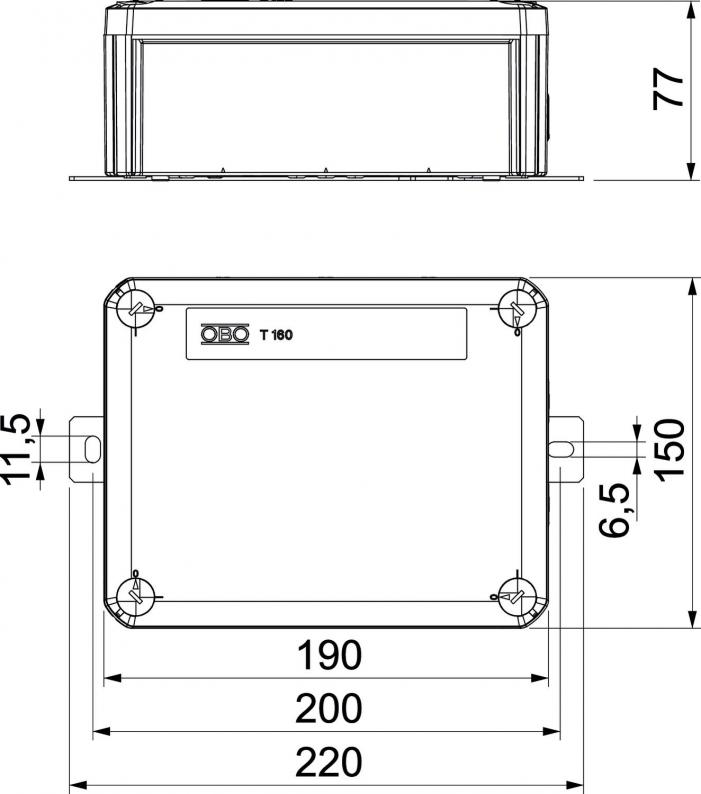

Dimensions
| Length | 190 mm |
|---|---|
| Width | 150 mm |
| Height | 77 mm |
| Clear internal dimensions | 176x135x67 mm |
| Dimension L | 190 mm |
| Dimension A | 130 mm |
| Dimension B | 150 mm |
| Dimension H | 77 mm |
| Dimension L1 | 200 mm |
| Dimension L2 | 220 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Entry from rear | no |
| Protection rating | IP66 |
| with lid | yes |
| Sealable | no |
| Maintain electrical functions | E 90 |
| With screening | no |
| Nominal cross-section, min. | 0,5 mm² |
| Nominal cross-section, max. | 10 mm² |
| Equipment | Support rail |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Dimension | 190x150x77 |
| Material | Polypropylene |
| Colour | Pastel orange; RAL 2003 |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,4338 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Accessories
Mounting accessories
System accessories
Article
Type
Item no.
Amount
MP-T6-F
7205790
Smallest selling unit: 1 piece
1piece
piece
MP-T6-B
7205792
Smallest selling unit: 1 piece
1piece
piece
Item no. 7205790
Mounting plate for FireBox T series, front sideType
MP-T6-F
Smallest selling unit: 1 piece
1piece
piece
Item no. 7205792
Mounting plate for FireBox T series, rear sideType
MP-T6-B
Smallest selling unit: 1 piece
1piece
piece
Variants
Type
Clear internal dimensions
Protection rating
Colour
Item no.
T100E 0VA
136x102x57
IP66
Pastel orange; RAL 2003
7205780
T160E 0VA
176x135x67
IP66
Pastel orange; RAL 2003
7205782
T250E 0VA
225x173x86
IP66
Pastel orange; RAL 2003
7205784
T350E 0VA
267x182x110
IP66
Pastel orange; RAL 2003
7205786
