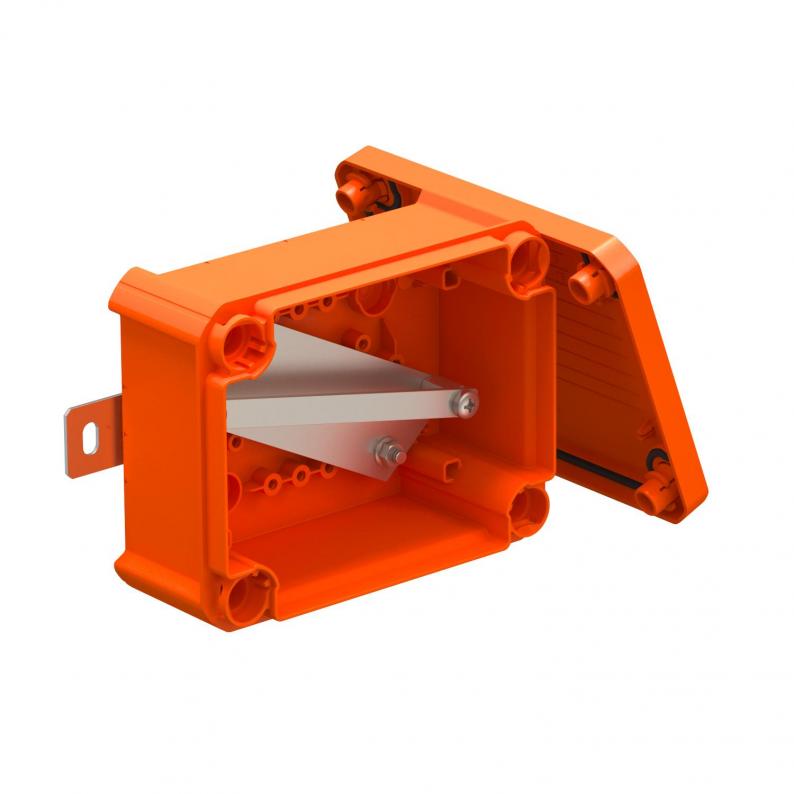

Closed FireBox T100, empty

Type T100E 0VA

Item no. 7205780

EAN 4012196820238

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

Clear internal dimensions

Protection rating

IP66

Colour

Pastel orange; RAL 2003

Smallest selling unit: 1 piece

piece

Description Technical data Downloads Accessories Variants

Description

Unequipped, closed connection or junction box for free termination with ceramic terminals and cable glands. Dimension A states the available support rail length for the wiring terminals. Sufficiently large wiring compartment through diagonally arranged support rail. Fastening on easily accessible external flaps made of stainless steel. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90.

Technical data

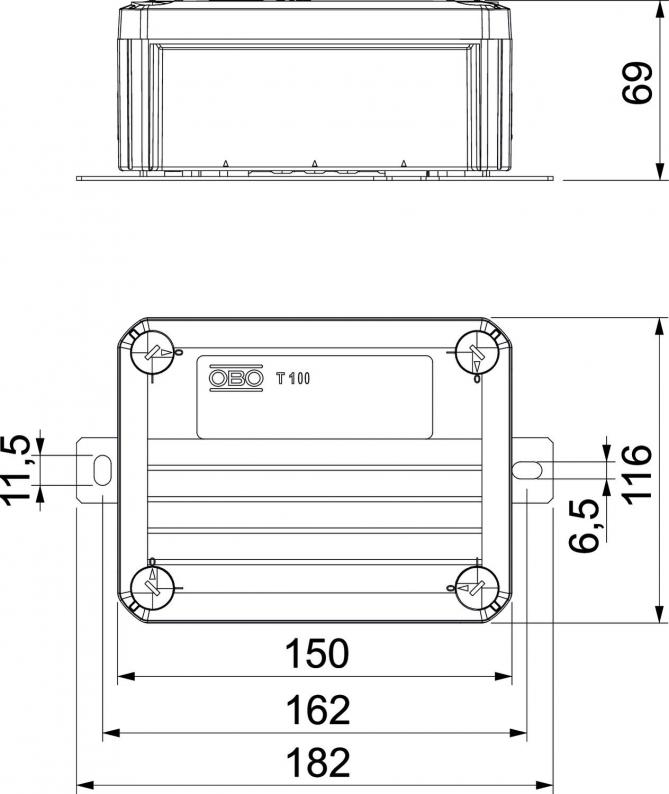

Dimensions

Length	150 mm
Width	116 mm
Height	67 mm
Clear internal dimensions	136x102x57 mm
Dimension L	150 mm
Dimension A	101 mm
Dimension B	116 mm
Dimension H	67 mm
Dimension L1	162 mm
Dimension L2	182 mm

Technical data

Halogen-free	yes
Entry from rear	no
Protection rating	IP66
with lid	yes
Sealable	no
Maintain electrical functions	E 90
With screening	no
Nominal cross-section, min.	0,5 mm²
Nominal cross-section, max.	6 mm²
Equipment	Support rail
Cover	Not transparent
Cover fastening	Screwed
Dimension	150x116x67
Material	Polypropylene
Colour	Pastel orange; RAL 2003
CO2 Footprint (GWP) Cradle-to-Gate	2,3617 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (3)

Declarations (3)

Certificates (3)

Instructions and Aid (1)

Product images (2)

Tender specifications (2)

Accessories

System accessories

Mounting accessories

Item no. 7205700

Ceramic terminal

Type

TK 04

Smallest selling unit: 5 piece

piece

Item no. 7205702

Ceramic terminal, single

Type

TK 06

Smallest selling unit: 5 piece

piece

Item no. 7205703

Ceramic terminal, double

Type

TK 06-2

Smallest selling unit: 5 piece

piece

Variants

Clear internal dimensions

T100E 0VA

Item no.

7205780

Clear internal dimensions

136x102x57

Protection rating

IP66

Colour

Pastel orange; RAL 2003

T160E 0VA

Item no.

7205782

Clear internal dimensions

176x135x67

Protection rating

IP66

Colour

Pastel orange; RAL 2003

T250E 0VA

Item no.

7205784

Clear internal dimensions

225x173x86

Protection rating

IP66

Colour

Pastel orange; RAL 2003

T350E 0VA

Item no.

7205786

Clear internal dimensions

267x182x110

Protection rating

IP66

Colour

Pastel orange; RAL 2003
