Clamping piece A2

Clamping piece A2

Type GKT 38 A2 | Item no. 6017045 | EAN 4012196013579

Show all variants
Item no. / Type
6017045 / GKT 38 A2

Smallest selling unit: 20 piece

DescriptionTechnical dataDownloadsVariants

Description

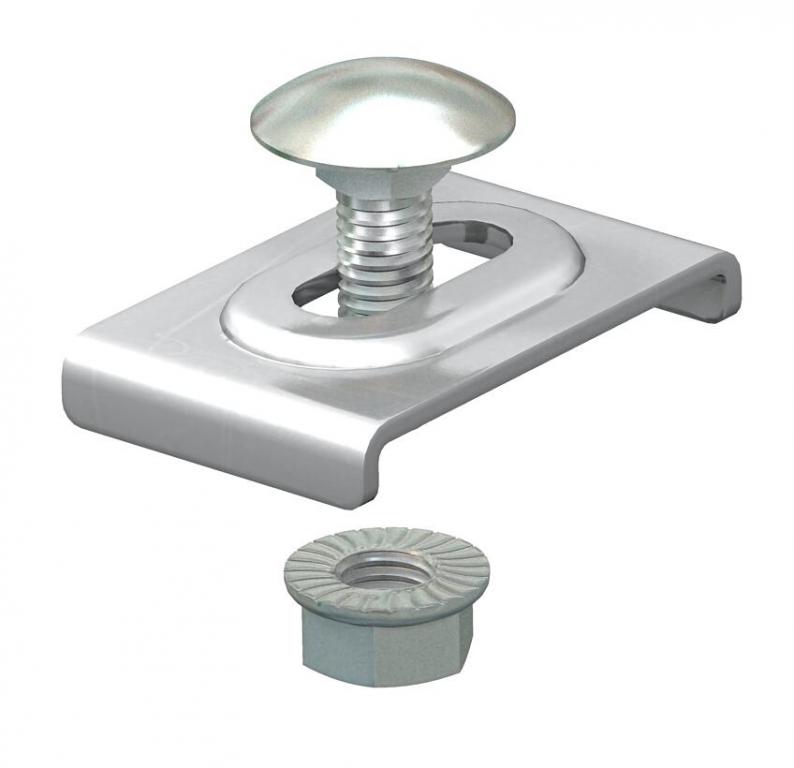

Clamp for fastening barrier strip in mesh cable trays.

Including FRS M6 x 20 bolt with flange nut.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • C-mesh cable tray, slant height 50mm
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Rustproof steel, pickledno
Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno

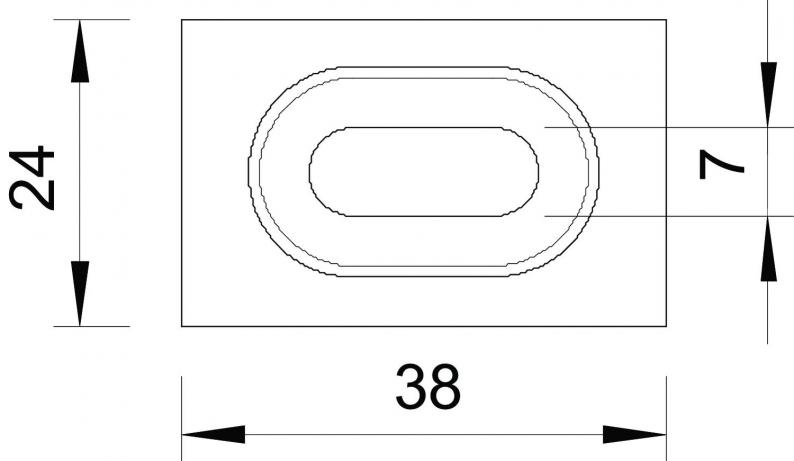

Dimension38 x 24
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
CO2 Footprint (GWP) Cradle-to-Gate0,1203 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

GKT 38 A2
Item no.
6017045
