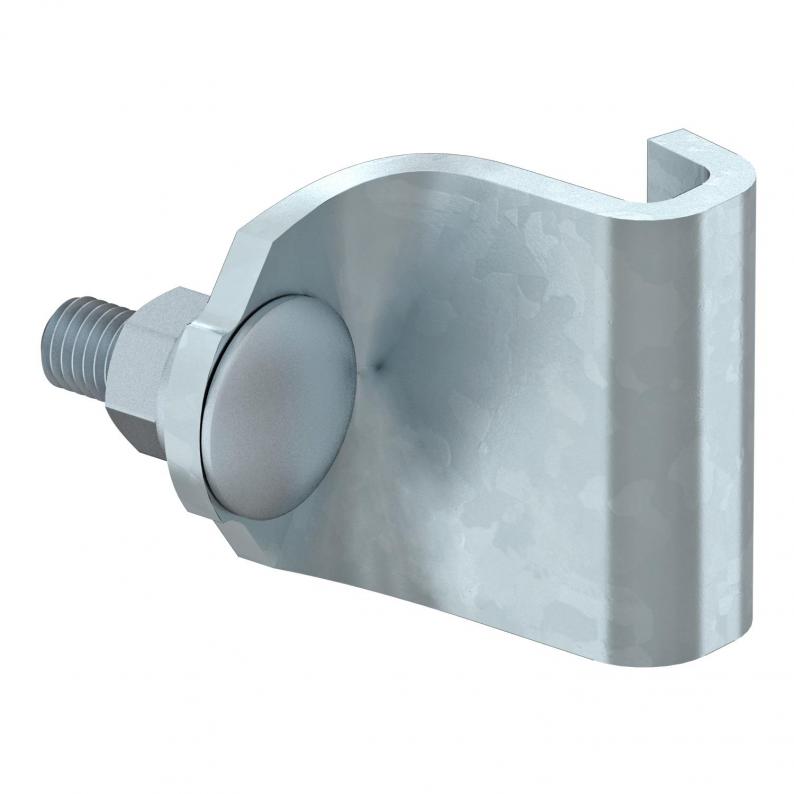

Clamping lug for AS30 / AS 55
Type KLAS 30 55 FT
|Item no. 6419007
|EAN 4012196179916
Item no. / Type
6419007 / KLAS 30 55 FT
Smallest selling unit: 1 piece
1piece
piece
Description
Individual clamping strap as a spare part for the fastening of the brackets AS 30 or AS 55 on the suspended support IS 8.
Technical data

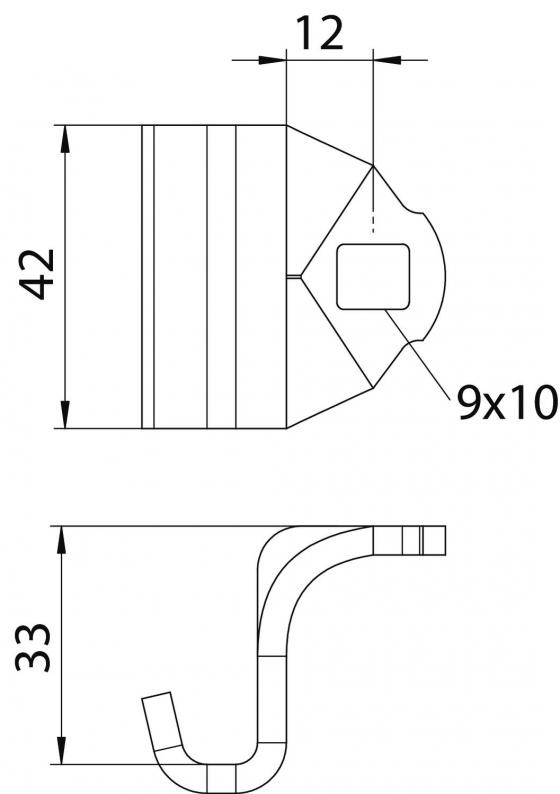

Dimensions
| Length | 33 mm |
|---|---|
| Width | 42 mm |
| Height | 42 mm |
| Dimension L | 33 mm |
| Dimension B | 42 mm |
| Dimension H | 42 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| With screw accessories | yes |
| Suitable for profile shapes | I profile |
| Dimension | 37x42 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2976 kg CO2e / 1 Piece |
