Clamp clip, triple, metal pressure trough
Type 2056 M3 12 FT
|Item no. 1156241
|EAN 4012195958765
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Clamp clip with metal pressure trough, triple, 8–12 mm
Technical data
Technical data
| for rail with slot width (with interval), min. | 16 mm |
|---|---|
| for rail with slot width (with interval), max. | 17 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 3 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 12 mm |
| Dimension | 8-12mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0992 kg CO₂e / 1 Piece |

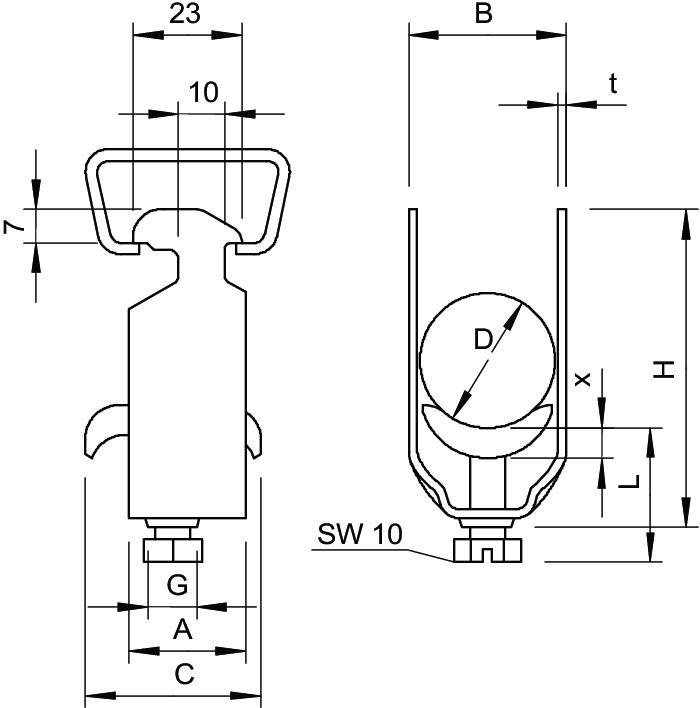

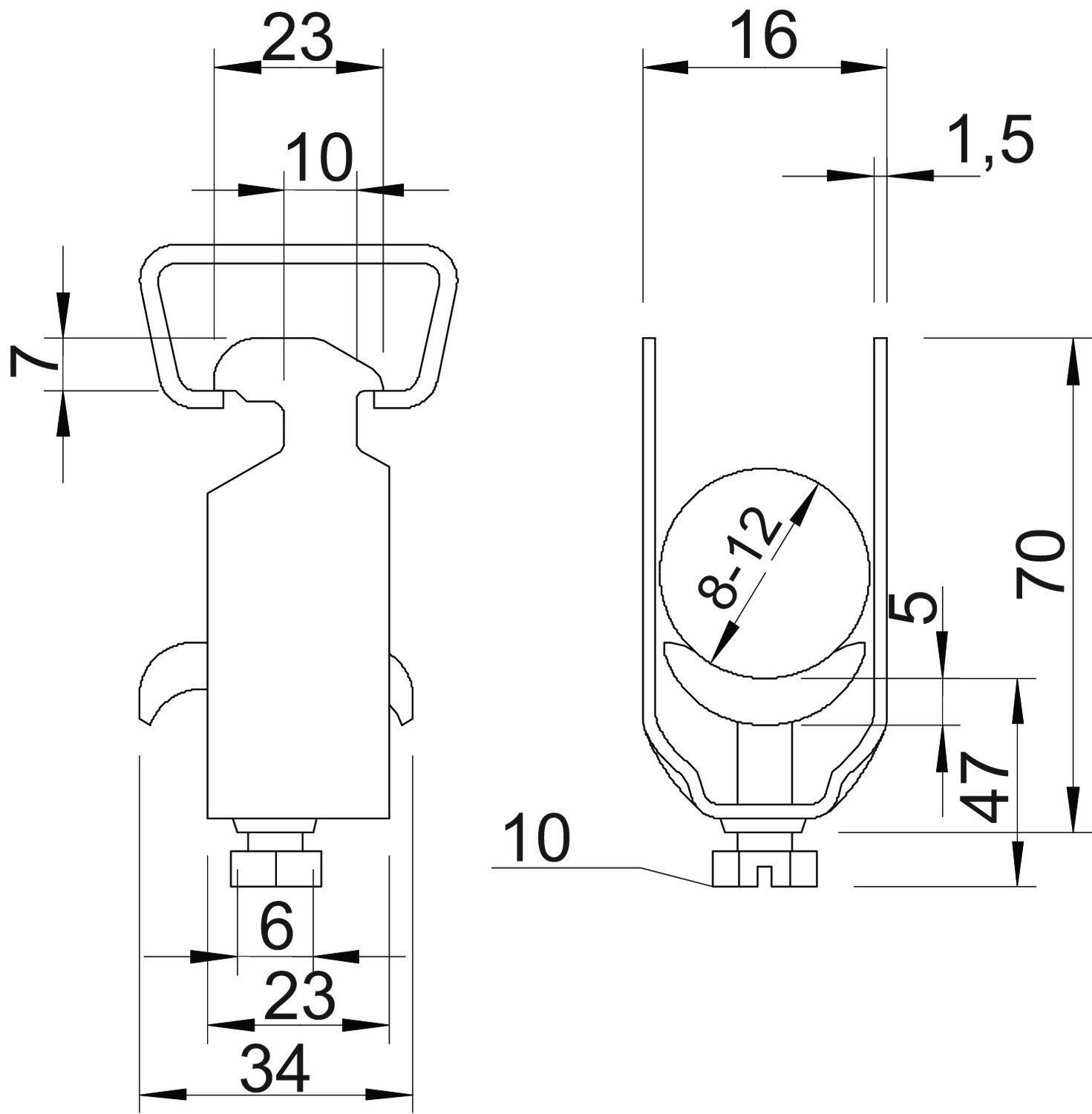

Dimensions
| Dimension L | 47 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 16 mm |
| Dimension H | 70 mm |
| Dimension t | 1,5 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (5)
Product images (2)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056 M3 12 FT
3
8
12
1156241
2056 M3 28 FT
3
22
28
1156284
Clamping range D, min.
Clamping range D, max.
2056 M3 12 FT
Item no.
1156241
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056 M3 28 FT
Item no.
1156284
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
