Clamp clip, single, plastic pressure trough, FT
Type 2056N 12 FT
|Item no. 1163124
|EAN 4012195067399
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for all C profile rails with slot width 11–12 mm; at least 6.5 mm clear internal height and at least 18.5 mm clear internal width.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| for rail with slot width (with interval), min. | 11 mm |
|---|---|
| for rail with slot width (with interval), max. | 12 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| for 1 cable H | 34 mm |
| for 1 cable L | 34 |
| for 2 cable H | 49 mm |
| for 2 cable L | 47 mm |
| for 3 cable L | 47 mm |
| for 3 cable H | 65 mm |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 12 mm |
| Dimension | 8-12mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0537 kg CO₂e / 1 Piece |

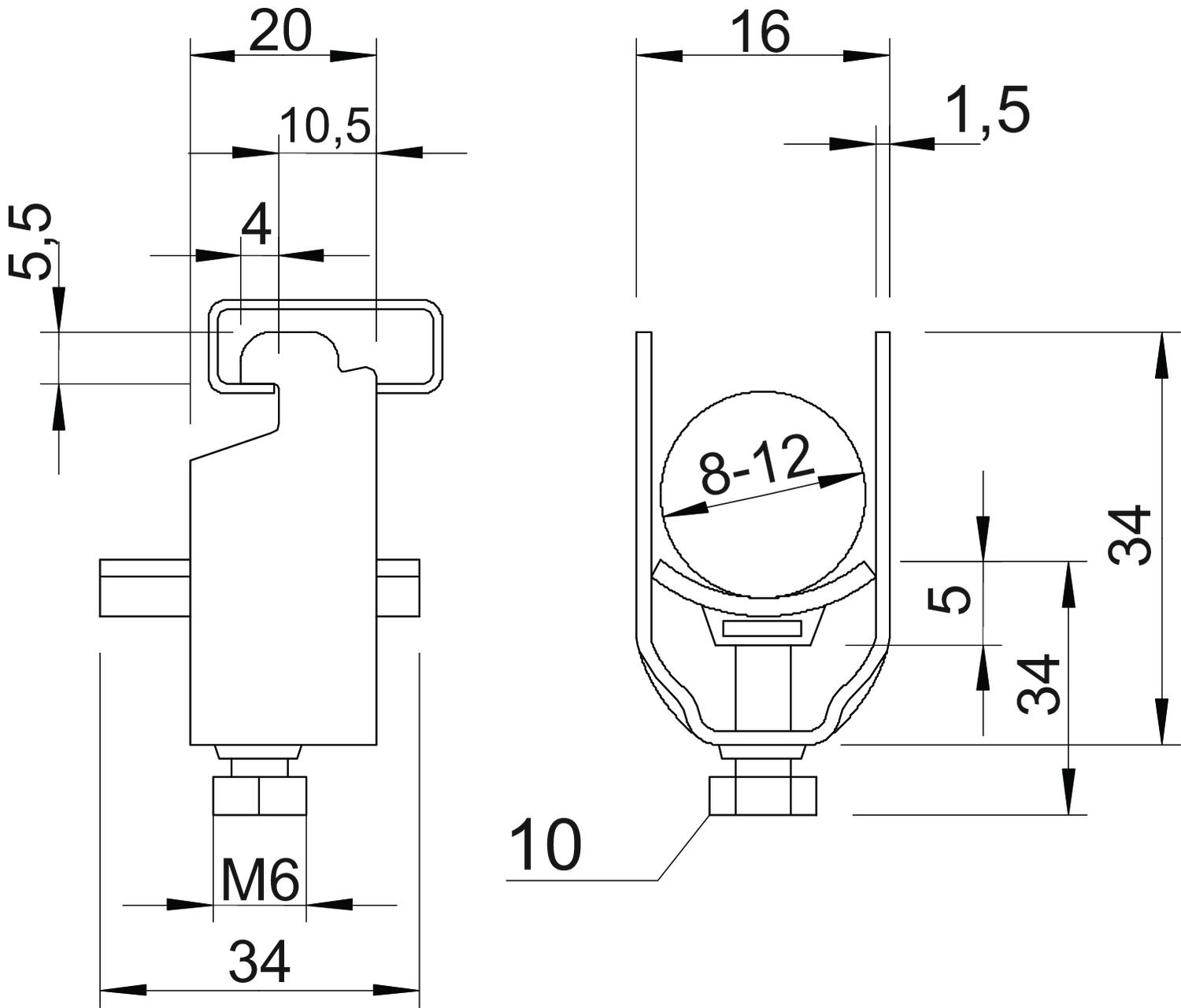

Dimensions
| Dimension L | 34 mm |
|---|---|
| Dimension A | 20 mm |
| Dimension B | 16 mm |
| Dimension H | 34 mm |
| Dimension t | 1,5 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056N 12 FT
3
8
12
1163124
2056N 64 FT
5
58
64
1163647
2056N 70 FT
5
64
70
1163701
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056N 12 FT
Item no.
1163124
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056N 64 FT
Item no.
1163647
Max. Tightening torque
5
Clamping range D, min.
58
Clamping range D, max.
64
2056N 70 FT
Item no.
1163701
Max. Tightening torque
5
Clamping range D, min.
64
Clamping range D, max.
70
