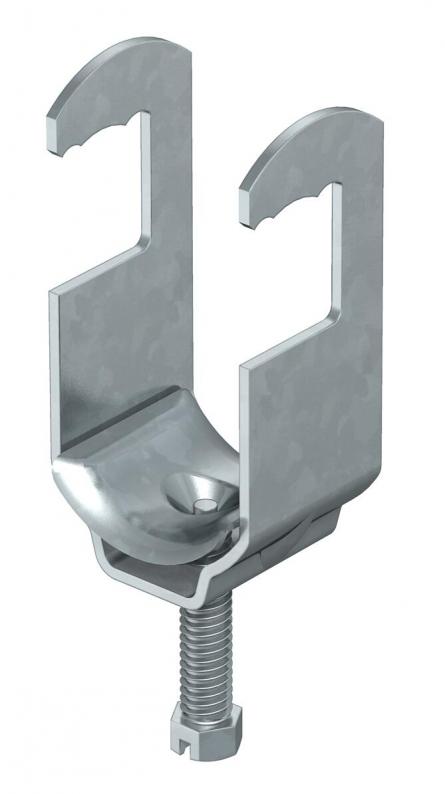

Clamp clip, single, metal pressure trough, round profiles/pipes
Type 2056RS M 22 FT
|Item no. 1158309
|EAN 4012195358428
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for all round profile irons or pipes of diameters to 22 mm; clip, pressure trough and bolt made of steel, hot-dip galvanised;
the metal troughs have strongly rounded edges on all sides, so that no damage to the cables need be feared.
the metal troughs have strongly rounded edges on all sides, so that no damage to the cables need be feared.
Technical data
Technical data
| For pipe diameter, min. | 20 mm |
|---|---|
| For pipe diameter, max. | 20 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Round profile |
| Clamping range D, min. | 16 mm |
| Clamping range D, max. | 22 mm |
| Dimension | 16-22mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Steel |
Dimensions
| Dimension L | 30 mm |
|---|---|
| Dimension B | 27 mm |
| Dimension H | 69 mm |
| Dimension t | 1,5 mm |
| Dimension C | 28 mm |
| Dimension G (mm) | M6 |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1341 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056RS M 16 FT
3
12
16
1158305
2056RS M 22 FT
3
16
22
1158309
2056RS M 52 FT
5
46
52
1158329
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056RS M 16 FT
Item no.
1158305
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056RS M 22 FT
Item no.
1158309
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
2056RS M 52 FT
Item no.
1158329
Max. Tightening torque
5
Clamping range D, min.
46
Clamping range D, max.
52
