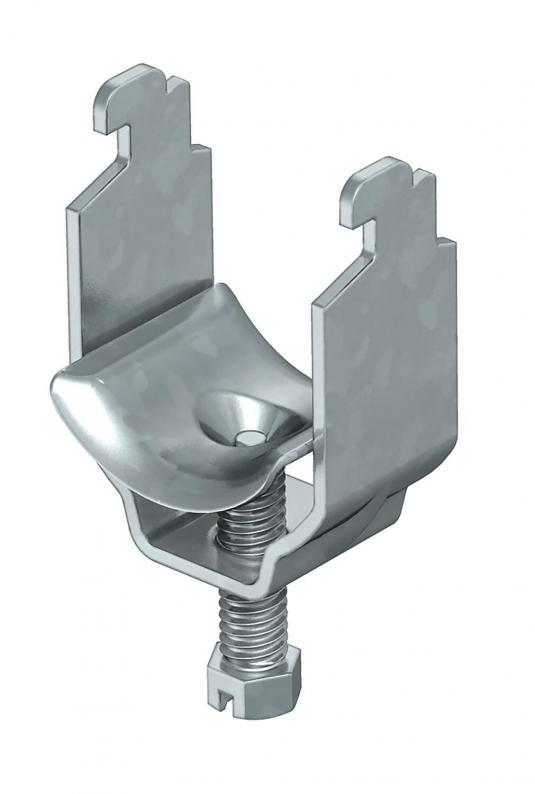

Clamp clip, single, metal pressure trough
Type 2056N M 28 FT
|Item no. 1155431
|EAN 4012195061038
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for all C profile rails with slot width 11–12 mm; at least 6.5 mm clear internal height and at least 18.5 mm clear internal width;
metal troughs have strongly rounded edges on all sides, so that there is no risk of cable damage.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
metal troughs have strongly rounded edges on all sides, so that there is no risk of cable damage.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| For pipe diameter, min. | 25 mm |
|---|---|
| For pipe diameter, max. | 25 mm |
| for rail with slot width (with interval), min. | 11 mm |
| for rail with slot width (with interval), max. | 12 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| for 1 cable H | 51 mm |
| for 1 cable L | 33,5 |
| for 2 cable H | 84 mm |
| for 2 cable L | 46,5 mm |
| for 3 cable L | 57,5 mm |
| for 3 cable H | 115 mm |
| Clamping range D, min. | 22 mm |
| Clamping range D, max. | 28 mm |
| Dimension | 22-28mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,116 kg CO₂e / 1 Piece |

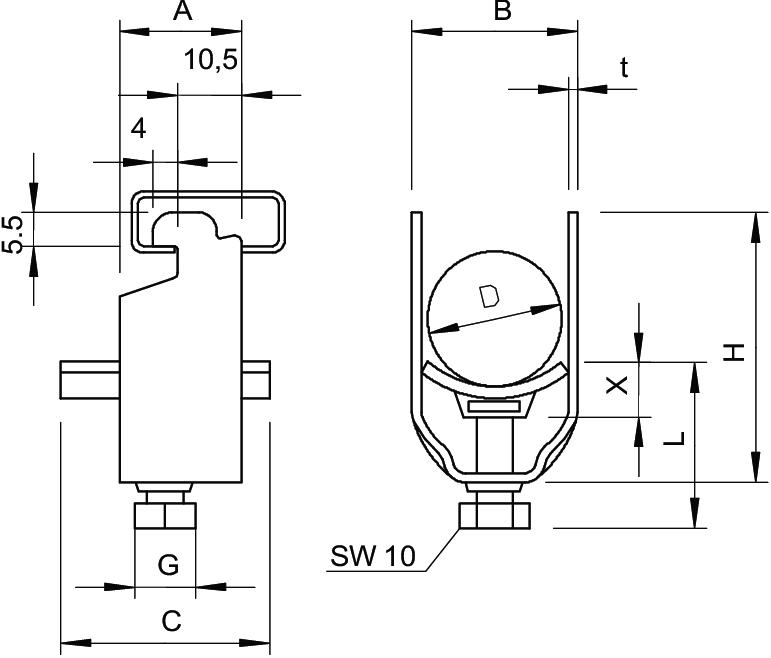

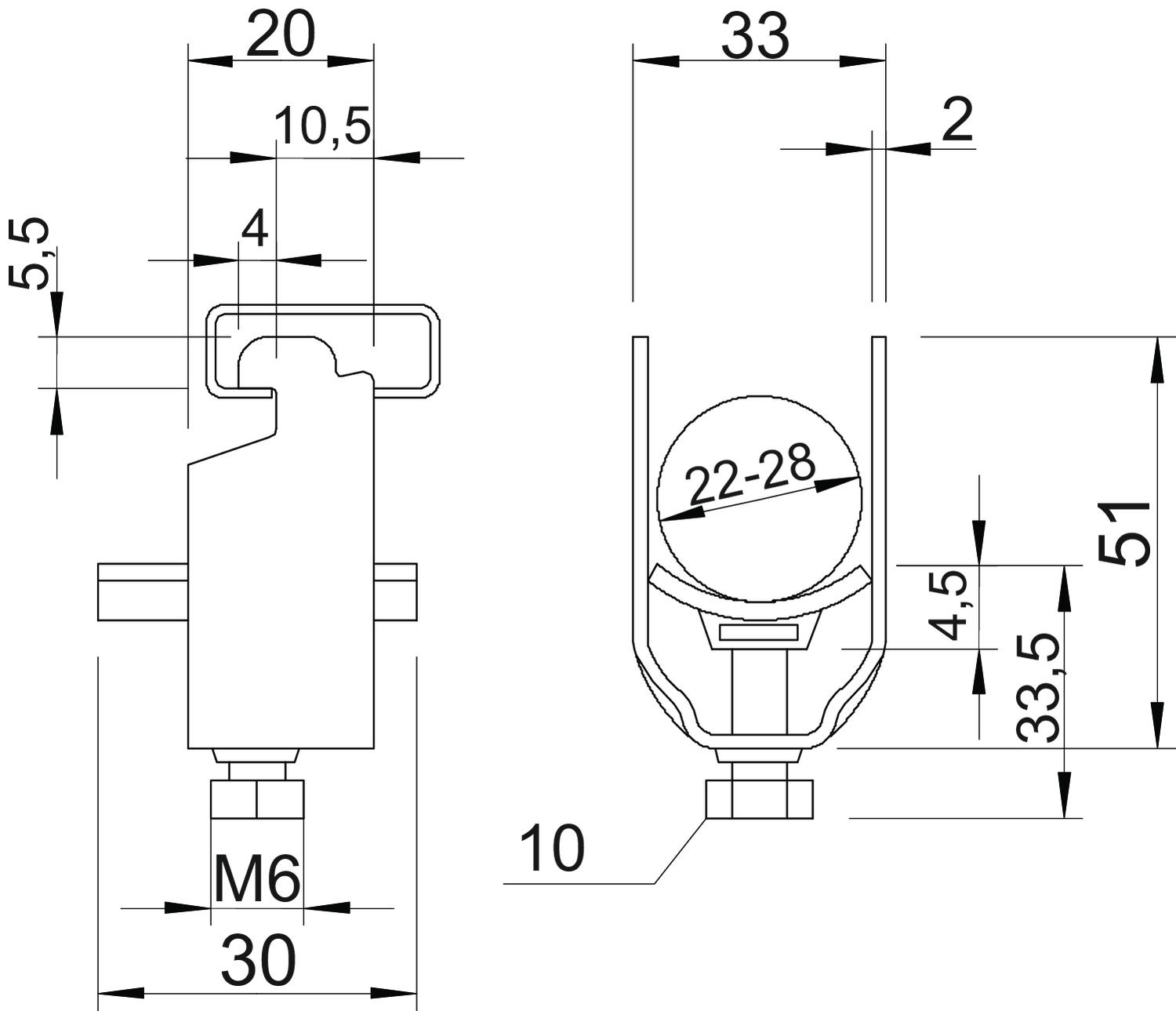

Dimensions
| Dimension L | 33,5 mm |
|---|---|
| Dimension A | 20 mm |
| Dimension B | 33 mm |
| Dimension H | 51 mm |
| Dimension t | 2 mm |
| Dimension C | 30 mm |
| Dimension x | 4,5 mm |
| Dimension G (mm) | M6 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056N M 12 FT
3
8
12
1155407
2056N M 28 FT
3
22
28
1155431
2056N M 46 FT
5
40
46
1155474
2056N M 52 FT
5
46
52
1155482
2056N M 58 FT
5
52
58
1155490
