Clamp clip, single, FT plastic pressure trough
Type 2056W 70 FT
|Item no. 1180681
|EAN 4012195076032
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for angular steel of 40 mm shaft length.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Angle profile |
| for 1 cable H | 136 mm |
| for 1 cable L | 32,5 |
| Clamping range D, min. | 64 mm |
| Clamping range D, max. | 70 mm |
| Dimension | 64-70mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |

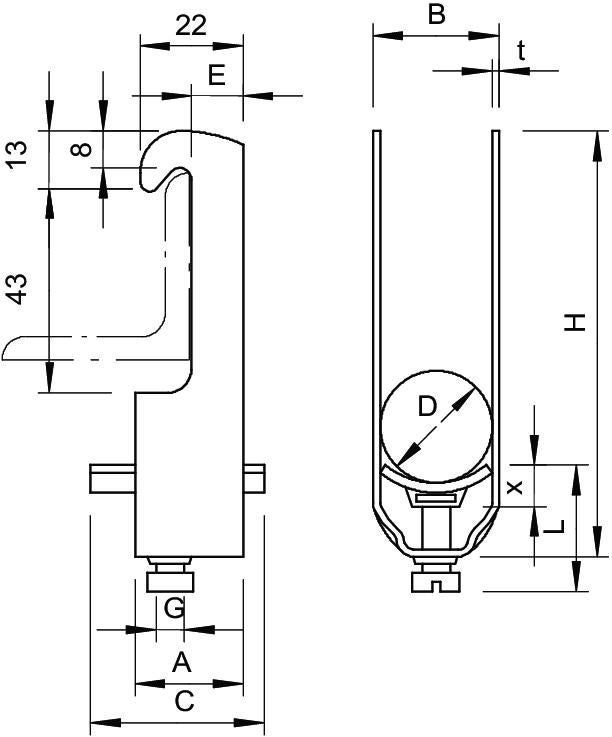

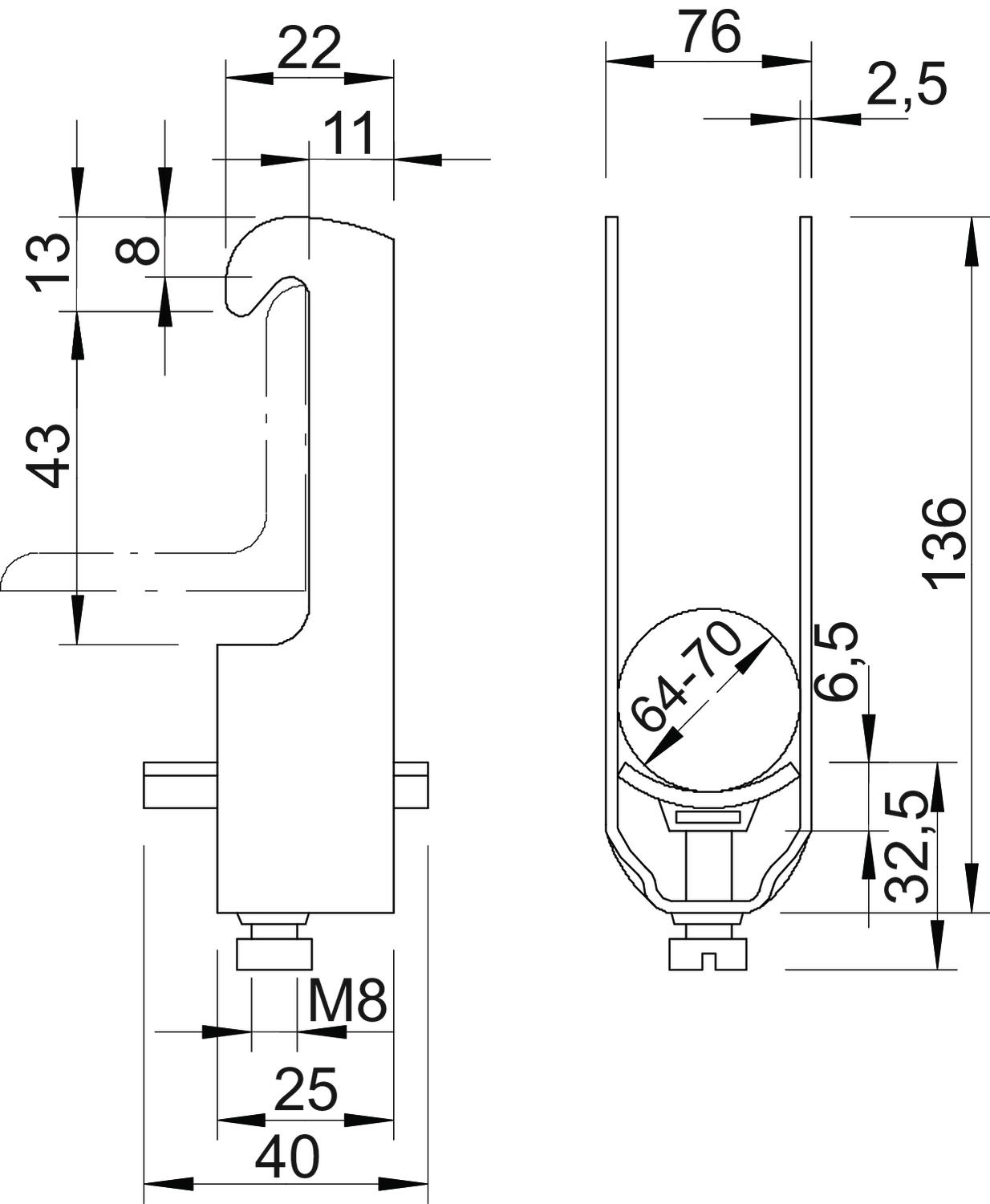

Dimensions
| Dimension L | 32,5 mm |
|---|---|
| Dimension A | 25 mm |
| Dimension B | 76 mm |
| Dimension H | 136 mm |
| Dimension t | 2,5 mm |
| Dimension C | 40 mm |
| Dimension x | 6,5 mm |
| Dimension G (mm) | M8 |
| Dimension E | 13,5 mm |
Environmental Data
0,4439 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4439 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056W 12 FT
3
8
12
1180126
2056W 16 FT
3
12
16
1180169
2056W 52 FT
5
46
52
1180525
2056W 70 FT
5
64
70
1180681
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056W 12 FT
Item no.
1180126
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056W 16 FT
Item no.
1180169
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056W 52 FT
Item no.
1180525
Max. Tightening torque
5
Clamping range D, min.
46
Clamping range D, max.
52
2056W 70 FT
Item no.
1180681
Max. Tightening torque
5
Clamping range D, min.
64
Clamping range D, max.
70
