Clamp clip, single, FT plastic pressure trough
Type 2056F 40 FT
|Item no. 1169408
|EAN 4012195070931
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for flat, bracket and U irons of 4–12 mm material thickness.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| For pipe diameter, min. | 40 mm |
|---|---|
| For pipe diameter, max. | 40 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Flat profile |
| for 1 cable H | 74 mm |
| for 1 cable L | 37,5 |
| for 2 cable H | 116 mm |
| for 2 cable L | 44,5 mm |
| for 3 cable L | 56,5 mm |
| for 3 cable H | 159 mm |
| Clamping range D, min. | 34 mm |
| Clamping range D, max. | 40 mm |
| Dimension | 34-40mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |

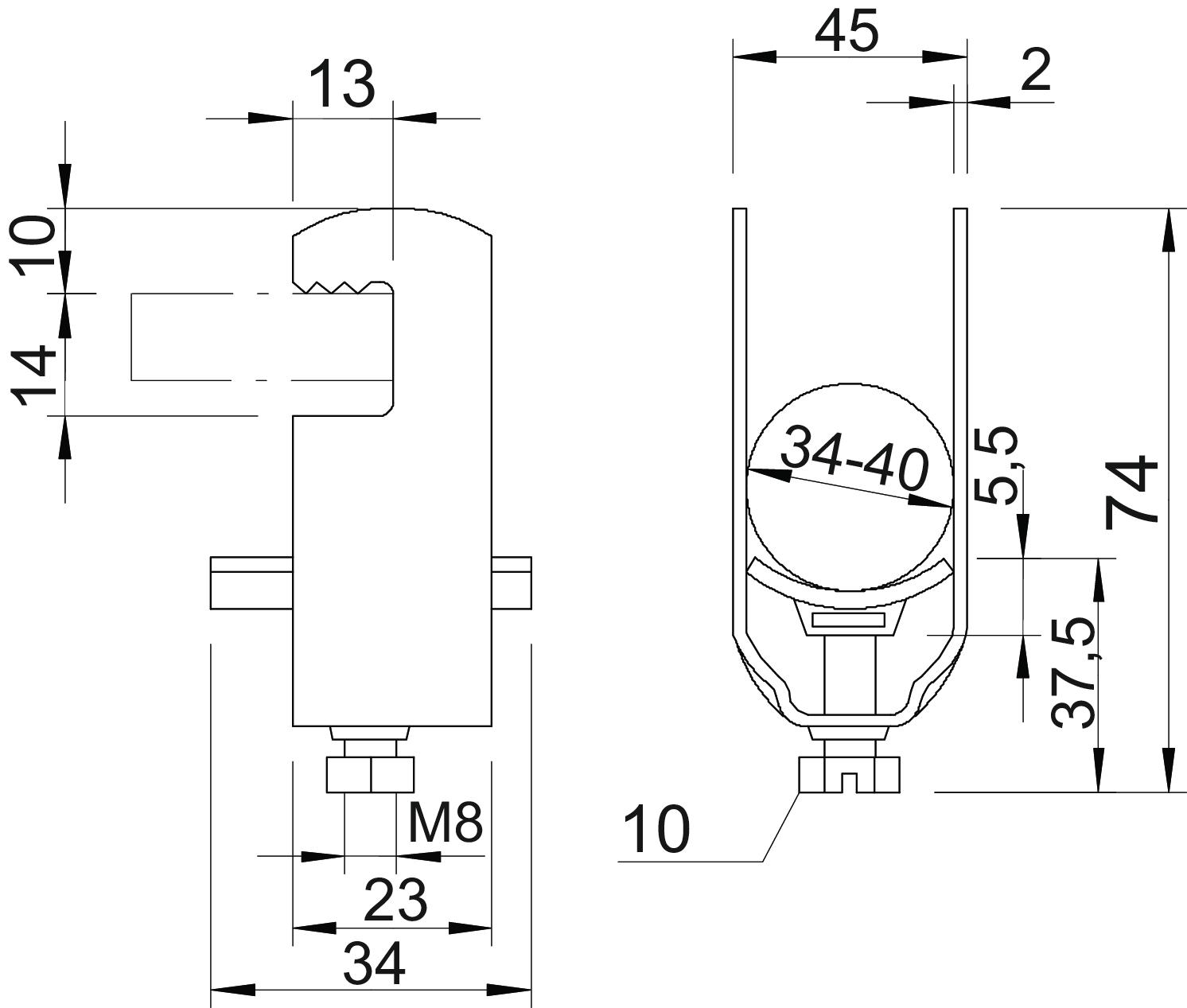

Dimensions
| Dimension L | 37,5 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 45 mm |
| Dimension H | 74 mm |
| Dimension t | 2 mm |
| Dimension C | 34 mm |
| Dimension x | 5,5 mm |
| Dimension G (mm) | M8 |
| Dimension E | 13 mm |
Environmental Data
0,1535 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1535 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056F 12 FT
3
8
12
1169122
2056F 16 FT
3
12
16
1169165
2056F 22 FT
3
16
22
1169211
2056F 28 FT
3
22
28
1169289
2056F 40 FT
5
34
40
1169408
2056F 64 FT
5
58
64
1169645
2056F 29 FT
22
29
1171895
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056F 12 FT
Item no.
1169122
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056F 16 FT
Item no.
1169165
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056F 22 FT
Item no.
1169211
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
2056F 28 FT
Item no.
1169289
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056F 40 FT
Item no.
1169408
Max. Tightening torque
5
Clamping range D, min.
34
Clamping range D, max.
40
2056F 64 FT
Item no.
1169645
Max. Tightening torque
5
Clamping range D, min.
58
Clamping range D, max.
64
2056F 29 FT
Item no.
1171895
Clamping range D, min.
22
Clamping range D, max.
29
