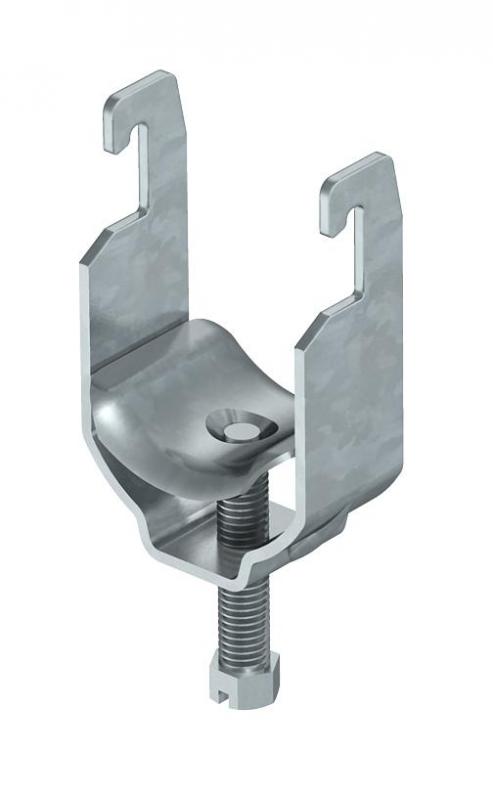

Clamp clip, single, FT metal pressure trough
Type 2056U M 34 FT | Item no. 1158058 | EAN 4012195498490
Item no. / Type
1158058 / 2056U M 34 FT
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
Description
Suitable for all C profile rails with slot width 18 mm and 22 mm.
Technical data
Technical data
| For pipe diameter, max. | 32 mm |
|---|---|
| For pipe diameter, min. | 32 mm |
| for rail with slot width (with interval), max. | 22 mm |
| for rail with slot width (with interval), min. | 18 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Clamping range D, max. | 34 mm |
| Clamping range D, min. | 28 mm |
| Dimension | 28-34mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1461 kg CO₂e / 1 Piece |
Dimensions
| Dimension L | 37,5 mm |
|---|---|
| Dimension A | 20 mm |
| Dimension B | 39 mm |
| Dimension H | 67 mm |
| Dimension t | 2 mm |
| Dimension C | 34 mm |
| Dimension x | 5,5 mm |
| Dimension G (mm) | M8 |
