Clamp clip, single, FT metal pressure trough
Type 2056F M 22 FT
|Item no. 1156829
|EAN 4012195495314
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Clamp clip for fastening cables and pipes. Suitable for flat, angular and U irons of 4–12 mm thickness. Metal trough with strongly rounded edges for cable protection.
Technical data
Technical data
| For pipe diameter, min. | 20 mm |
|---|---|
| For pipe diameter, max. | 20 mm |
| for rail with slot width (with interval), min. | 16 mm |
| for rail with slot width (with interval), max. | 17 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Flat profile |
| for 1 cable H | 54 mm |
| for 1 cable L | 34 |
| for 2 cable H | 78 mm |
| for 2 cable L | 47 mm |
| for 3 cable L | 47 mm |
| for 3 cable H | 102 mm |
| Clamping range D, min. | 16 mm |
| Clamping range D, max. | 22 mm |
| Dimension | 16-22mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Steel |

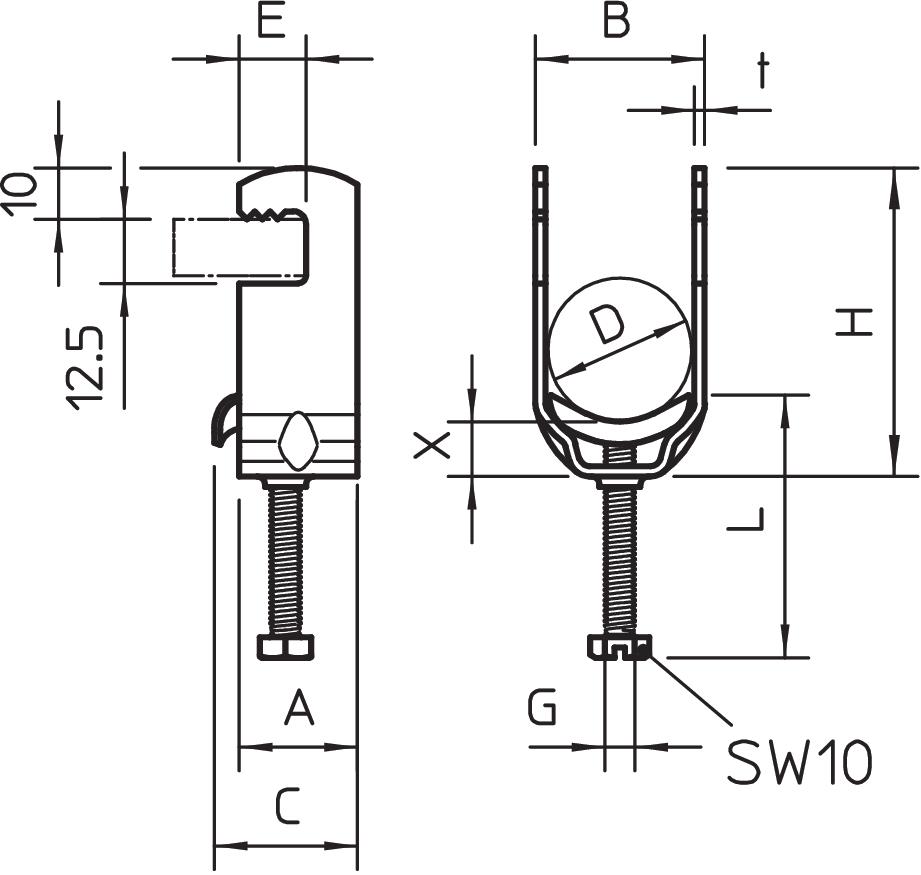

Dimensions
| Dimension L | 34 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 27 mm |
| Dimension H | 54 mm |
| Dimension t | 1,5 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
| Dimension E | 13 mm |
Environmental Data
0,1005 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1005 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056F M 16 FT
3
12
16
1156810
2056F M 22 FT
3
16
22
1156829
Clamping range D, min.
Clamping range D, max.
2056F M 16 FT
Item no.
1156810
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056F M 22 FT
Item no.
1156829
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
