Clamp clip, double, plastic pressure trough
Type 2056W 2 46 FT
|Item no. 1181467
|EAN 4012195076698
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 25 piece
25piece
piece
Description
Suitable for angular steel of 40 mm shaft length.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Technical data
Technical data
| For pipe diameter, min. | 40 mm |
|---|---|
| For pipe diameter, max. | 40 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 2 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Angle profile |
| for 1 cable H | 111 mm |
| for 1 cable L | 31,5 |
| for 2 cable H | 160 mm |
| for 2 cable L | 37,5 mm |
| for 3 cable L | 44,5 mm |
| for 3 cable H | 209 mm |
| Clamping range D, min. | 40 mm |
| Clamping range D, max. | 46 mm |
| Dimension | 40-46mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |

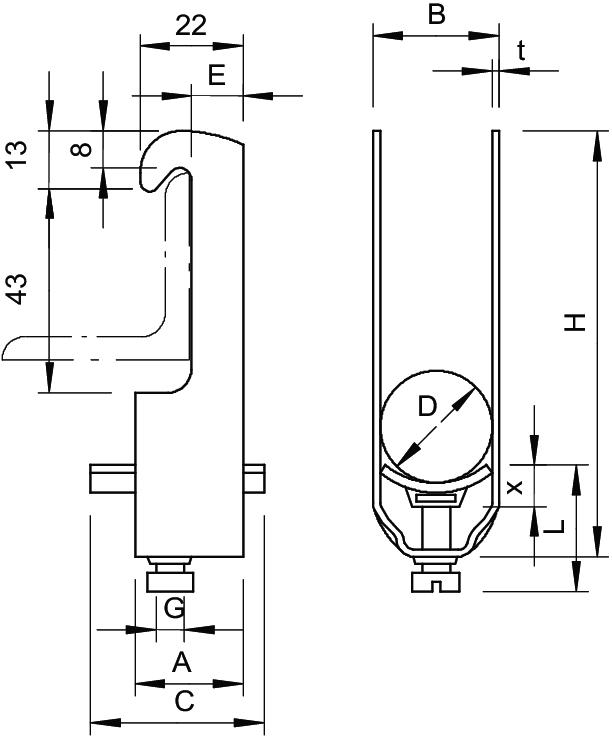

Dimensions
| Dimension L | 37,5 mm |
|---|---|
| Dimension A | 25 mm |
| Dimension B | 51 mm |
| Dimension H | 160 mm |
| Dimension t | 2 mm |
| Dimension C | 40 mm |
| Dimension x | 5,5 mm |
| Dimension G (mm) | M8 |
| Dimension E | 13,5 mm |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,419 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056W 2 16 FT
3
12
16
1181165
2056W 2 28 FT
3
22
28
1181289
2056W 2 34 FT
5
28
34
1181343
2056W 2 46 FT
5
40
46
1181467
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056W 2 16 FT
Item no.
1181165
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056W 2 28 FT
Item no.
1181289
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056W 2 34 FT
Item no.
1181343
Max. Tightening torque
5
Clamping range D, min.
28
Clamping range D, max.
34
2056W 2 46 FT
Item no.
1181467
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
