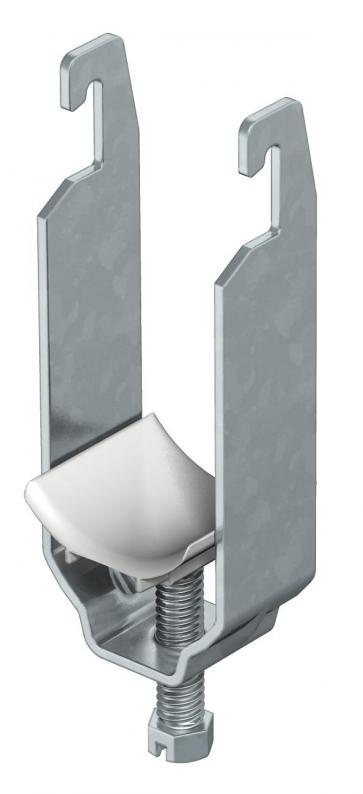

Clamp clip, double, plastic pressure trough
Type 2056U 2 28 FT
|Item no. 1176285
|EAN 4012195073819
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for all C profile rails with slot width 18 mm and 22 mm.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Technical data
Technical data
| For pipe diameter, min. | 25 mm |
|---|---|
| For pipe diameter, max. | 25 mm |
| for rail with slot width (with interval), min. | 18 mm |
| for rail with slot width (with interval), max. | 22 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 2 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| for 1 cable H | 59 mm |
| for 1 cable L | 34 |
| for 2 cable H | 89 mm |
| for 2 cable L | 47 mm |
| for 3 cable L | 47 mm |
| for 3 cable H | 119 mm |
| Clamping range D, min. | 22 mm |
| Clamping range D, max. | 28 mm |
| Dimension | 22-28mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1392 kg CO₂e / 1 Piece |

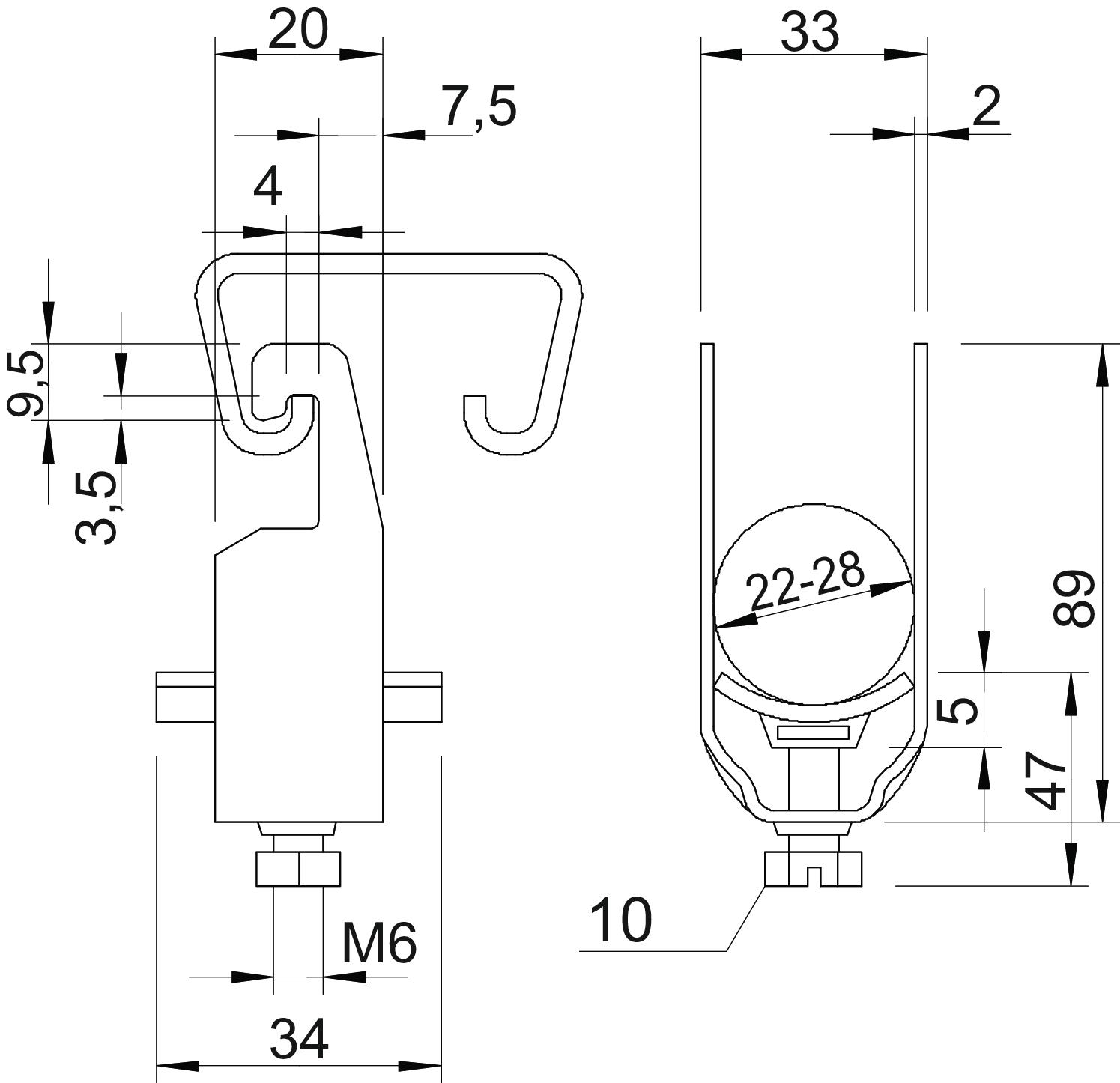

Dimensions
| Dimension L | 47 mm |
|---|---|
| Dimension A | 20 mm |
| Dimension B | 33 mm |
| Dimension H | 89 mm |
| Dimension t | 2 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056U 2 12 FT
3
8
12
1176129
2056U 2 28 FT
3
22
28
1176285
2056U 2 52 FT
5
46
52
1176528
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056U 2 12 FT
Item no.
1176129
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056U 2 28 FT
Item no.
1176285
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056U 2 52 FT
Item no.
1176528
Max. Tightening torque
5
Clamping range D, min.
46
Clamping range D, max.
52
