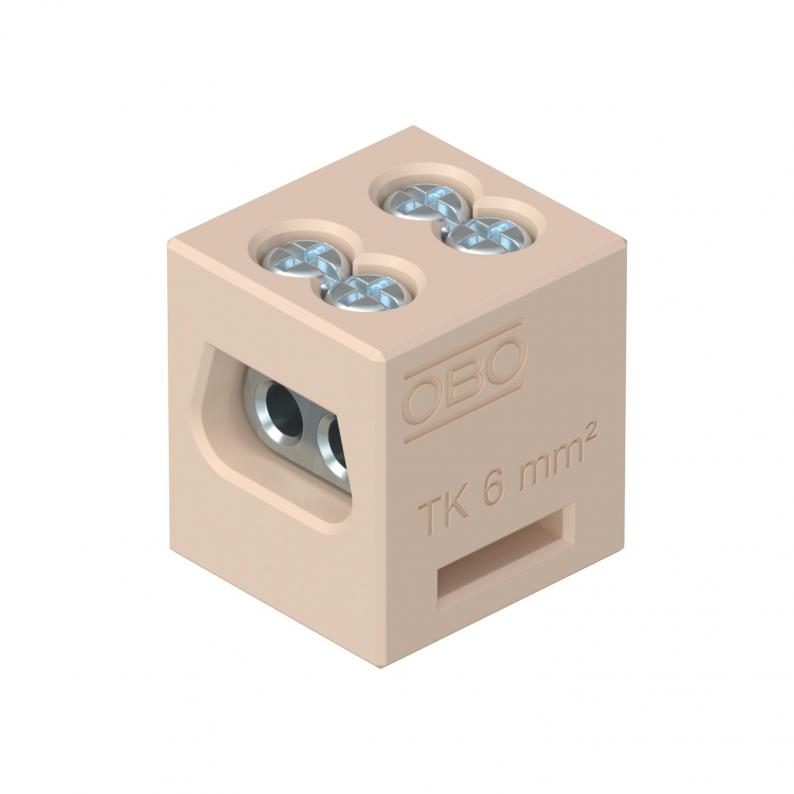

Ceramic terminal, double
Type TK 06-2 | Item no. 7205703 | EAN 4012196810222
Item no. / Type
Nominal voltage
Nominal cross-section, max.
Nominal cross-section, min.
No. of terminals
4
Smallest selling unit: 5 piece
5piece
Description
High-temperature-resistant ceramic terminal with four connection options for refitting of the FireBox T series. Tested according to DIN EN 60998-2-1:2004.
Technical data
Dimensions
| Length | 19,5 mm |
|---|---|
| Width | 21 mm |
| Height | 22,5 mm |
Technical data
| Pole number | 1 |
|---|---|
| Nominal current | 41 A |
| Nominal voltage | 400 V |
| Explosion-tested version | no |
| Closing plate required | no |
| Insulation material | Ceramic |
| Transparent | no |
| Number of screwless terminals per pole | 4 |
| Version of electrical connection 1 | Screw connection |
| Connection position | Side |
| Version of electrical connection 2 | Screw connection |
| Connectable conductor cross-section, single-wire, max. | 6 mm² |
| Connectable conductor cross-section, single-wire, min. | 1,5 mm² |
| Nominal cross-section, max. | 6 mm² |
| Nominal cross-section, min. | 1,5 mm² |
| No. of terminals | 4 |
| Permitted temperature range, max. | 250 °C |
| Permitted temperature range, min. | 0 °C |
| Dimension | 6 mm² |
| Material | Steatit |
| Colour | Cream |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0039 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (1)
Product images (2)
Tender specifications (2)
Variants
Type
Nominal voltage
Nominal cross-section, max.
Nominal cross-section, min.
No. of terminals
Item no.
TK 06-2
400
6
1,5
4
7205703
TK 10-2
400
10
4
4
7205705
TK 16-2
400
16
6
4
7205707
