CEE socket unit, single, 32 A
Type 71GDCEE32 | Item no. 6119485 | EAN 4012196609994
Item no. / Type
6119485 / 71GDCEE32
Smallest selling unit: 1 piece
1piece
Description
Accessory mounting box CEE, single, 32 A.

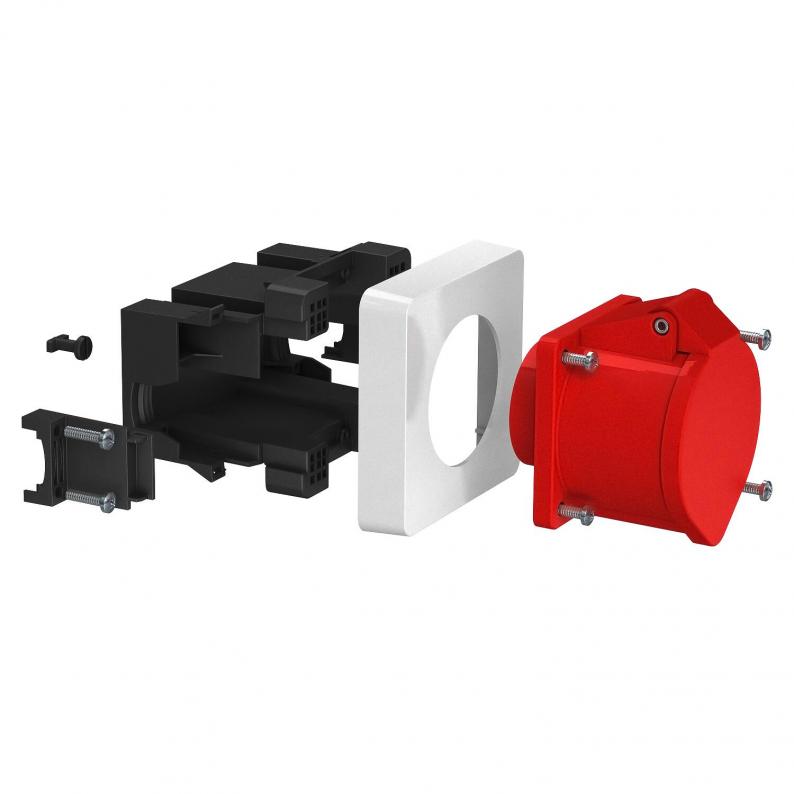

Scope of delivery:
- 1 front-locking accessory mounting box for 4-point fastening track of 52 x 52 mm to 70 x 70 mm
- 1 cover frame in pure white for hiding the fastening technology
- 2 external strain reliefs for jacketed cables of up to Ø 18 mm
- 2 sash locks for optional fastening to trunking bases with C rail
- 1 CEE socket 32 A with mounting accessories
For installation in Rapid 80 device installation trunking and ISS service poles.
Scope of delivery:
- 1 front-locking accessory mounting box for 4-point fastening track of 52 x 52 mm to 70 x 70 mm
- 1 cover frame in pure white for hiding the fastening technology
- 2 external strain reliefs for jacketed cables of up to Ø 18 mm
- 2 sash locks for optional fastening to trunking bases with C rail
- 1 CEE socket 32 A with mounting accessories
For installation in Rapid 80 device installation trunking and ISS service poles.
Technical data
Technical data
| Halogen-free | yes |
|---|---|
| Number of units | 1 |
| Strain relief option | yes |
| With connection compartment | yes |
| Fastening track | Other |
| Version for | Closed |

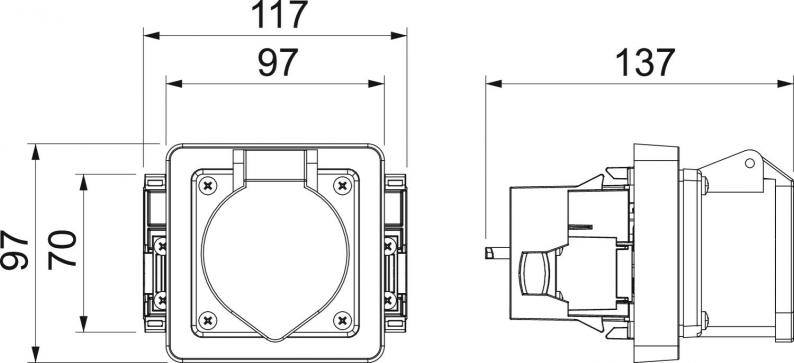

| Dimension | 118x98x125 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8718 kg CO2e / 1 Piece |
