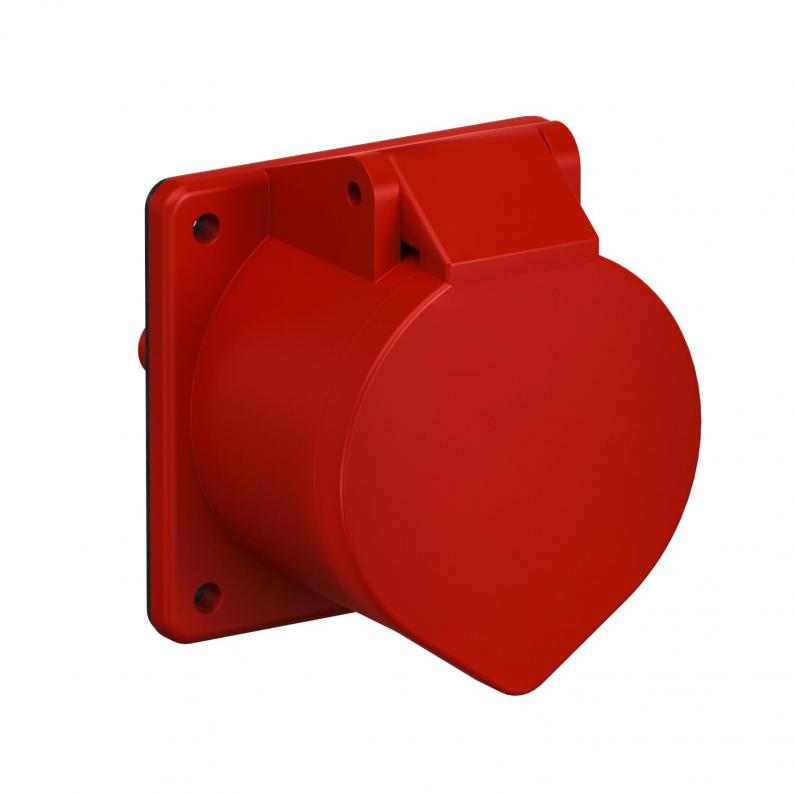

CEE connection unit, 16 A

CEE connection unit, 16 A

Type CEE-16A
|
Item no. 6109874
|
EAN 4012195125594
Show all variants
Item no. / Type
6109874 / CEE-16A

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

CEE socket with 60 mm fastening track, 3-pin + N + PE, 400 V, 16 A, 6 h.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

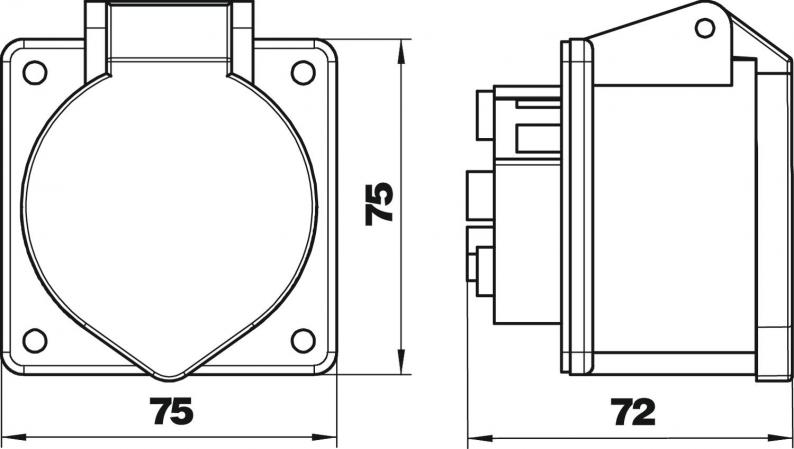

Dimensions

Length72 mm
Width75 mm
Height75 mm

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Pole number5
Protection ratingIP44
Nominal current16 A
Nominal voltage400 V
Military versionno
Direction of insertionStraight
Dimension75x75x72
Voltage according to EN 60309-2400 V (50+60 Hz) red
Connection technologyScrewless terminal
Cable entryOther
Drill hole spacing, horizontal60 mm
Drill hole spacing, vertical60 mm
Flange dimension, horizontal75 mm
Flange dimension, vertical75 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate0,1064 kg CO2e / 1 Piece
