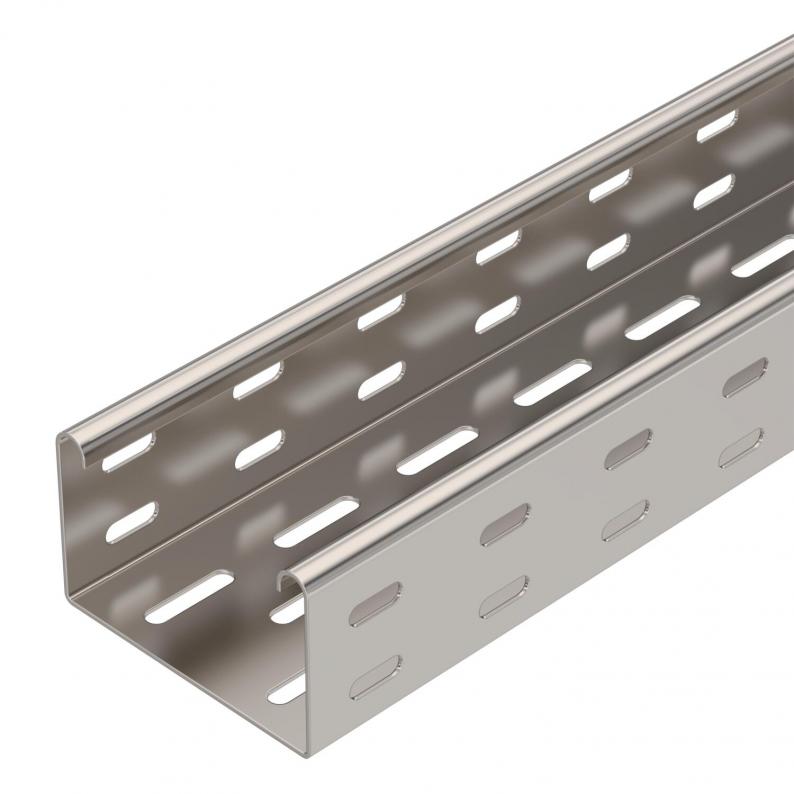

Cable tray SKS 60 A4

Cable tray SKS 60 A4

Type SKS 610 A4 | Item no. 6056750 | EAN 4012196050048

Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
yes
Surface
Bright, treated
Material
Stainless steel 1.4571

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

SKS 60 = Heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray, type SKS, should also be used for maintenance of electrical function. For additional data, please refer to BSS fire protection systems. The cable tray is fastened to the bracket with bolts, type FRS M6 x 12.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

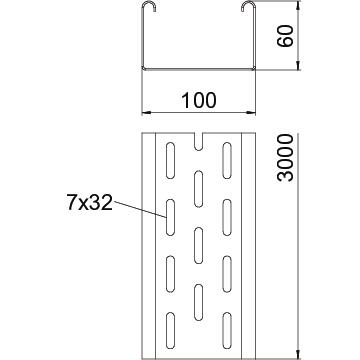

Dimensions

Length3000 mm
Width100 mm
Height60 mm
Dimension B100 mm
Maß W100 mm

Technical data

Maintain electrical functionsyes
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section58 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section5800 mm²
With coverno
Dimension60x100x3000
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate13,8216 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1,8 kN/m
Support spacing 2.5 m1,15 kN/m
Support spacing 3.0 m0,5 kN/m
Support spacing 1.5 m2,65 kN/m
Load diagram, cable tray, type SKS 60 VA

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Certificates (1)
Instructions and Aid (4)
Product images (3)
3D data downloads (2)
Tender specifications (2)

Accessories

System accessories

Item no. 6067675

Straight connector A4
Type
RLVK 60 A4

Smallest selling unit: 10 piece

Item no. 7070390

Joint plate A4
Type
SSLB 100 A4

Smallest selling unit: 20 piece

Item no. 6036650

90° bend 60 A4
Type
RB 90 610 A4

Smallest selling unit: 1 piece

Variants

Width
SKS 610 A4
Item no.
6056750
Length
3000
Width
100
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 620 A4
Item no.
6056755
Length
3000
Width
200
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571

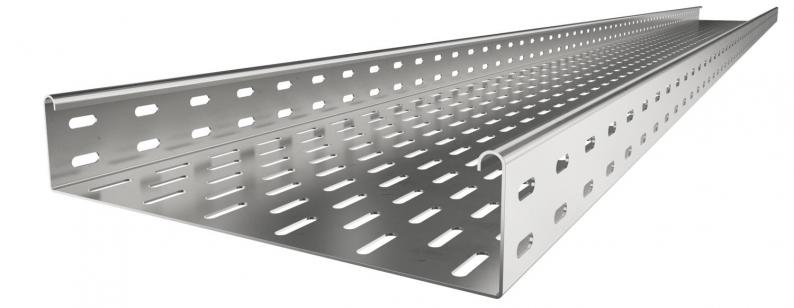

SKS 630 A4
Item no.
6056757
Length
3000
Width
300
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 640 A4
Item no.
6056759
Length
3000
Width
400
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 650 A4
Item no.
6056761
Length
3000
Width
500
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 660 A4
Item no.
6056763
Length
3000
Width
600
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
