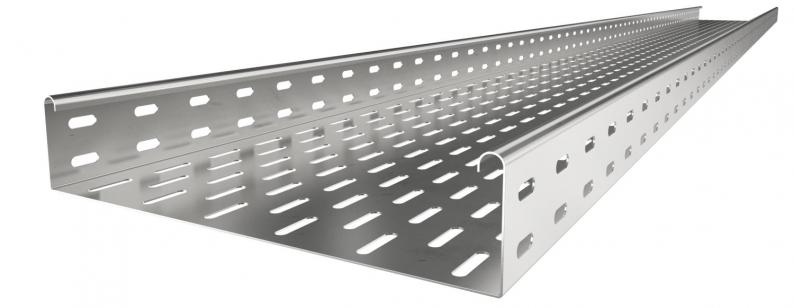

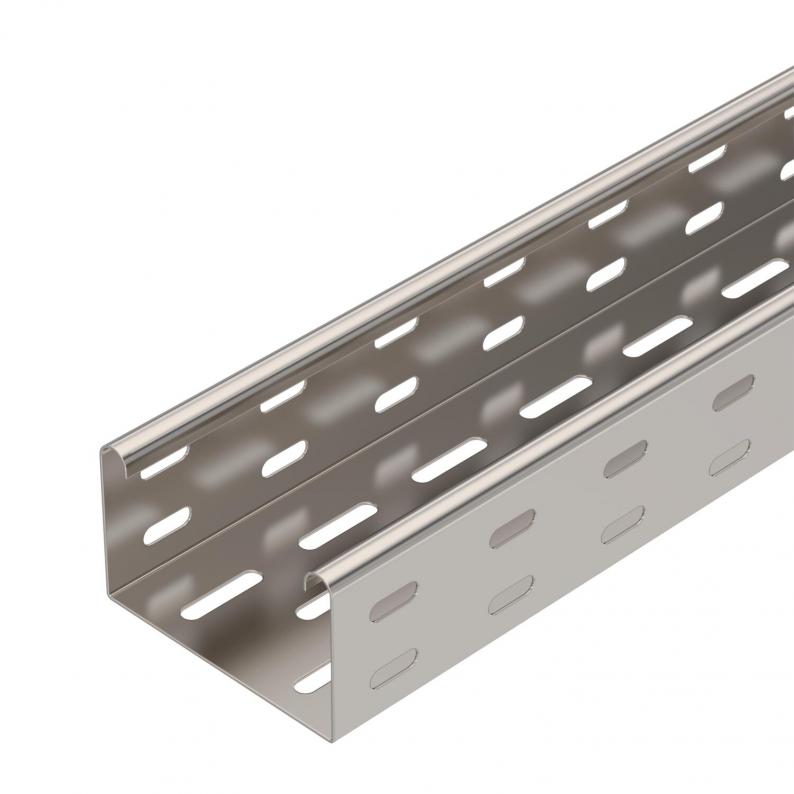

Cable tray MKS 60 A2

Cable tray MKS 60 A2

Type MKS 610 A2 | Item no. 6056016 | EAN 4012196389292

Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Bright, treated
Material
Stainless steel 1.4301

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

MKS 60 = Medium-duty cable tray system with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Connecting parts should be ordered in the appropriate quantity.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width100 mm
Height60 mm
Dimension B100 mm
Maß W100 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section58 cm²
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section5800 mm²
With coverno
Dimension60x100x3000
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate9,2197 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1 kN/m
Support spacing 2.5 m0,5 kN/m
Support spacing 1.75 m1,25 kN/m
Support spacing 1.5 m1,5 kN/m
Load diagram, cable tray, type MKS 60 VA

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Certificates (1)
Instructions and Aid (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories

Item no. 6067654

Straight connector A2
Type
RLVK 60 A2

Smallest selling unit: 10 piece

Item no. 7070353

Joint plate A2
Type
SSLB 100 A2

Smallest selling unit: 20 piece

Item no. 6036620

90° bend 60 A2
Type
RB 90 610 A2

Smallest selling unit: 1 piece

Variants

Width
MKS 610 A2
Item no.
6056016
Length
3000
Width
100
Maintain electrical functions
no
Plate thickness
1
Surface
Bright, treated
Material
Stainless steel 1.4301
MKS 620 A2
Item no.
6056024
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
1
Surface
Bright, treated
Material
Stainless steel 1.4301
MKS 630 A2
Item no.
6056040
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1
Surface
Bright, treated
Material
Stainless steel 1.4301
MKS 640 A2
Item no.
6056059
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1
Surface
Bright, treated
Material
Stainless steel 1.4301
