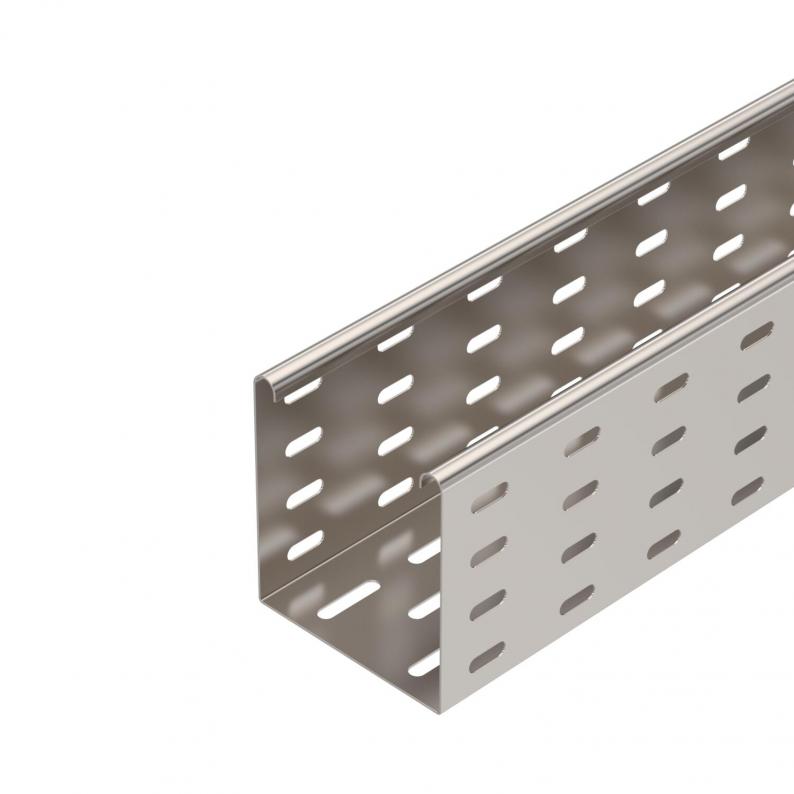

Cable tray MKS 110 A2
Type MKS 110 A2
|Item no. 6060803
|EAN 4012196392711
Item no. / Type
6060803 / MKS 110 A2
Length
3000 mm
Width
100 mm
Maintain electrical functions
no
Plate thickness
1 mm
Surface
Bright, treated
Material
Stainless steel 1.4301
This item is a discontinued product!
Smallest selling unit: 3 m
3m
m
Description
MKS 110 = medium-duty cable tray system with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
The cable tray is fastened to the bracket with screws, type FRS M6 x 12.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 110 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 110 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 11000 mm² |
| With cover | no |
| Dimension | 110 x 100 |
| Dimension | 110x100x3000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 1.5 m | 1,85 kN/m |
|---|---|
| Support spacing 2.0 m | 1,3 kN/m |
| Support spacing 2.5 m | 0,75 kN/m |
| Support spacing 3.0 m | 0,6 kN/m |
Environmental Data
13,3696 kg CO₂e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 13,3696 kg CO₂e / 1 Meter |
|---|
