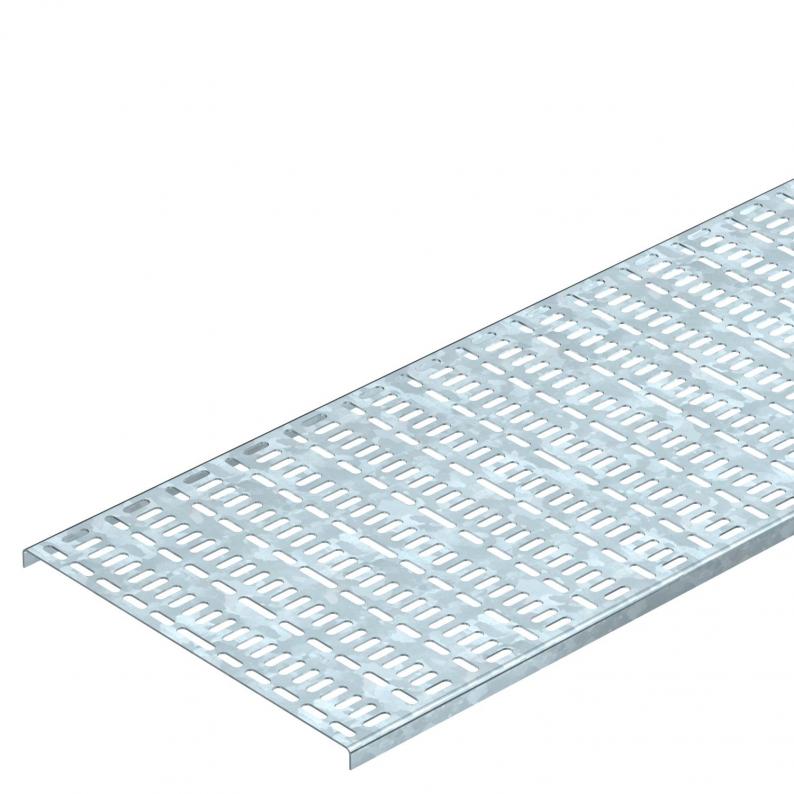

Cable tray, marine standard FS
Type MKR 15 125 FS | Item no. 6046375 | EAN 4012196517305
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 2 m
2m
Description
Cable tray for use in ship construction, produced according to the marine standard VG 88900-1.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 125 mm |
| Height | 15 mm |
| Dimension B | 125 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | yes |
| With cover | no |
| Dimension | 15x125x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,9519 kg CO2e / 1 Meter |
Loads
| Support spacing 1.0 m | 0,6 kN/m |
|---|---|
| Support spacing 1.5 m | 0,2 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
MKR 15 125 FS
2000
125
no
1,25
Strip galvanized
Steel
6046375
MKR 15 250 FS
2000
250
no
1,5
Strip galvanized
Steel
6046379
Width
Plate thickness
MKR 15 125 FS
Item no.
6046375
Length
2000
Width
125
Maintain electrical functions
no
Plate thickness
1,25
Surface
Strip galvanized
Material
Steel
MKR 15 250 FS
Item no.
6046379
Length
2000
Width
250
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
