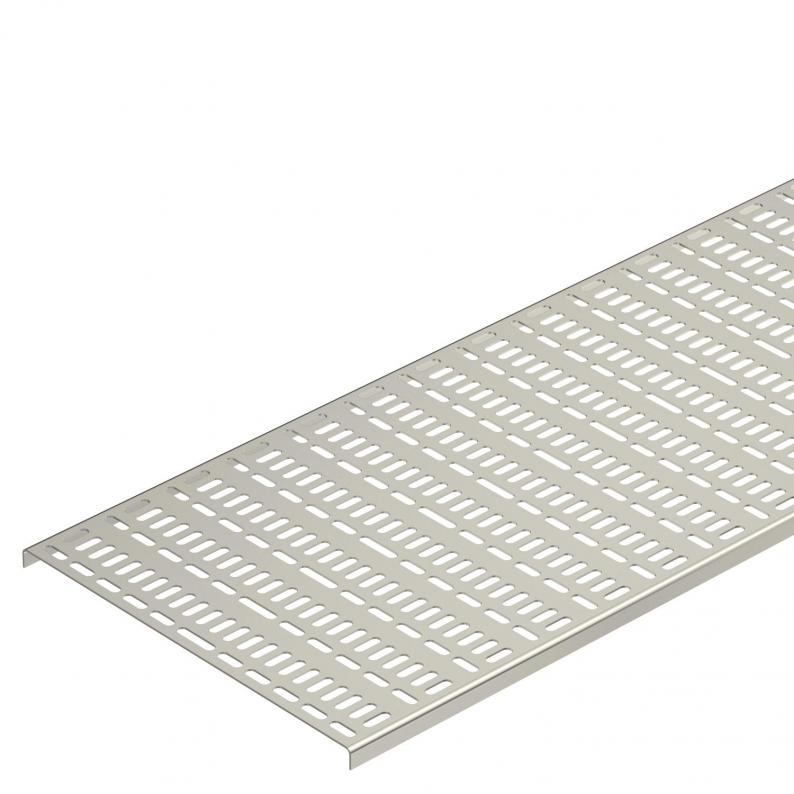

Cable tray, marine standard A2
Type MKR 15 125 A2 | Item no. 6045836 | EAN 4012195706694
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Bright, treated
Material
Stainless steel 1.4301
Smallest selling unit: 2 m
2m
Description
Cable tray for use in ship construction, produced according to the marine standard VG 88900-1.
Technical data

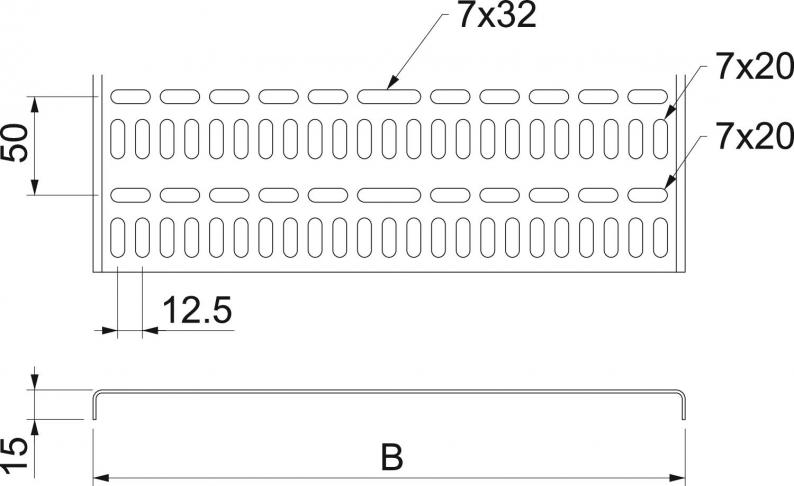

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 125 mm |
| Height | 15 mm |
| Dimension B | 125 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | yes |
| Plate thickness | 1,25 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | yes |
| With cover | no |
| Dimension | 15 X 125 |
| Dimension | 15x125x2000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 10,5972 kg CO2e / 1 Meter |
Loads
| Support spacing 1.0 m | 0,35 kN/m |
|---|---|
| Support spacing 1.5 m | 0,15 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
MKR 15 125 A2
2000
125
no
1,25
Bright, treated
Stainless steel 1.4301
6045836
MKR 15 250 A2
2000
250
no
1,5
Bright, treated
Stainless steel 1.4301
6045842
Width
Plate thickness
MKR 15 125 A2
Item no.
6045836
Length
2000
Width
125
Maintain electrical functions
no
Plate thickness
1,25
Surface
Bright, treated
Material
Stainless steel 1.4301
MKR 15 250 A2
Item no.
6045842
Length
2000
Width
250
Maintain electrical functions
no
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4301
