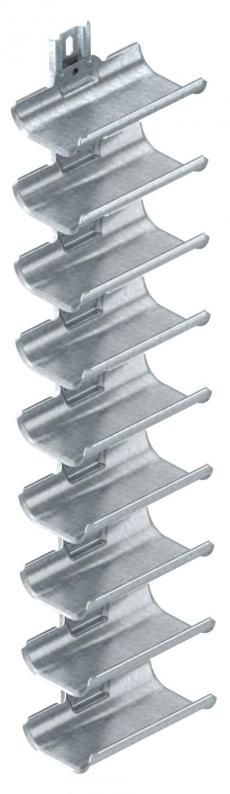

Cable support trough, 9x, with fastening rail
Type KTW 100 9 FT | Item no. 6006909 | EAN 4012196409204
Item no. / Type
6006909 / KTW 100 9 FT
Smallest selling unit: 1 piece
1piece
Description
Cable support brackets for quick and easy routing of cables in areas where common cable support systems cannot be installed due to lack of space. The cable support brackets possess a large load-bearing surface as well as rounded outer edges to protect the cables.
In accordance with DIN VDE 0298-300, a maximum support spacing of 0.8 m should not be exceeded.
Technical data
Dimensions
| Length | 198 mm |
|---|---|
| Width | 122 mm |
| Height | 900 mm |
| Dimension L | 900 mm |
Technical data
| Plate thickness | 2 mm |
|---|---|
| Adjustable | no |
| F in kN per trough | 0,5 kN |
| Number of troughs | 9 St. |
| Dimension | 900x200x123 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
