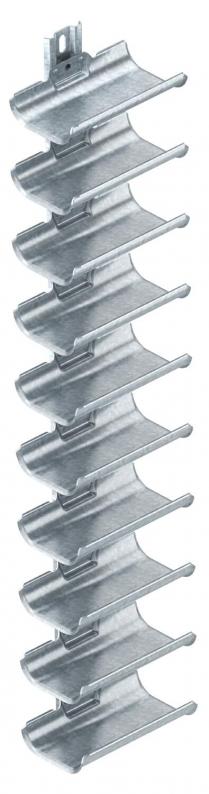

Cable support trough, 10x, with fastening rail
Type KTW 100 10 FT | Item no. 6006910 | EAN 4012196409211
Item no. / Type
6006910 / KTW 100 10 FT
Smallest selling unit: 1 piece
1piece
Description
Cable support brackets for quick and easy routing of cables in areas where common cable support systems cannot be installed due to lack of space. The cable support brackets possess a large load-bearing surface as well as rounded outer edges to protect the cables.
In accordance with DIN VDE 0298-300, a maximum support spacing of 0.8 m should not be exceeded.
Technical data
Dimensions
| Length | 198 mm |
|---|---|
| Width | 122 mm |
| Height | 1000 mm |
| Dimension L | 1000 mm |
Technical data
| Plate thickness | 2 mm |
|---|---|
| Adjustable | no |
| F in kN per trough | 0,5 kN |
| Number of troughs | 10 St. |
| Dimension | 1000x200x123 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Instructions and Aid (3)
Product images (1)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Height
F in kN per trough
Number of troughs
Item no.
KTW 100 10 FT
1000
0,5
10
6006910
KTW 100 10 FT
Item no.
6006910
Height
1000
F in kN per trough
0,5
Number of troughs
10
