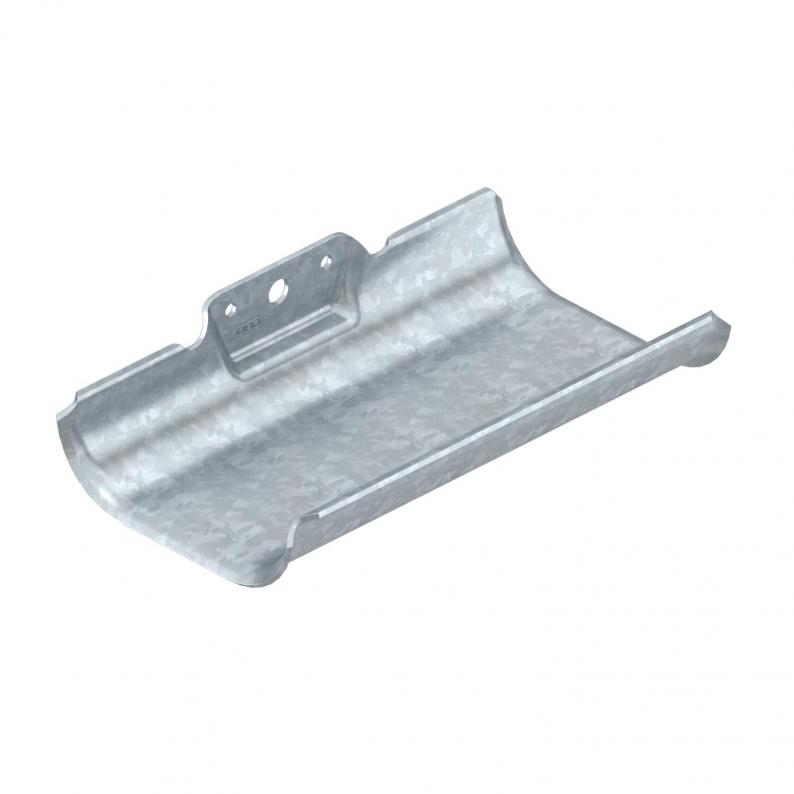

Cable carrier trough, single, for individual routing
Type KTW 100 FT | Item no. 6006890 | EAN 4012196440948
Item no. / Type
6006890 / KTW 100 FT
Smallest selling unit: 1 piece
1piece
Description
Cable support brackets for quick and easy routing of cables in areas where common cable support systems cannot be installed due to lack of space. The cable support brackets possess a large load-bearing surface as well as rounded outer edges to protect the cables.
In accordance with DIN VDE 0298-300, a maximum support spacing of 0.8 m should not be exceeded.
Technical data

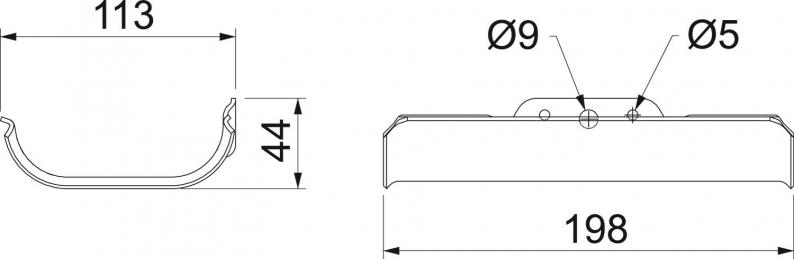

Dimensions
| Length | 198 mm |
|---|---|
| Width | 113 mm |
| Height | 44 mm |
Technical data
| Plate thickness | 2 mm |
|---|---|
| Adjustable | no |
| F in kN per trough | 0,35 kN |
| Number of troughs | 0 St. |
| Dimension | 44x200x113 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2123 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Height
F in kN per trough
Number of troughs
Item no.
KTW 100 FT
44
0,35
0
6006890
KTW 100 FT
Item no.
6006890
Height
44
F in kN per trough
0,35
Number of troughs
0
