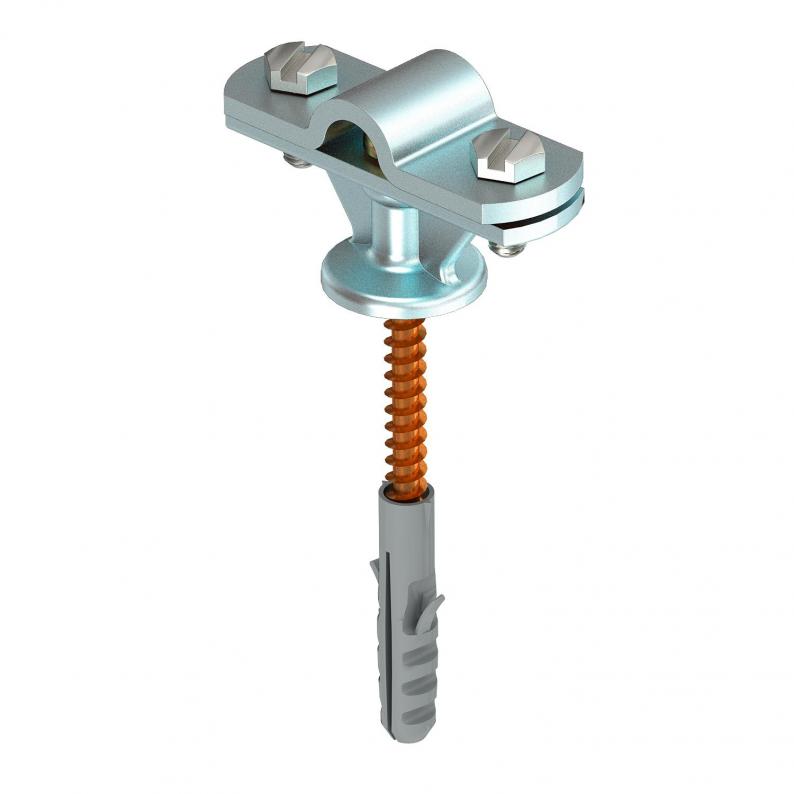

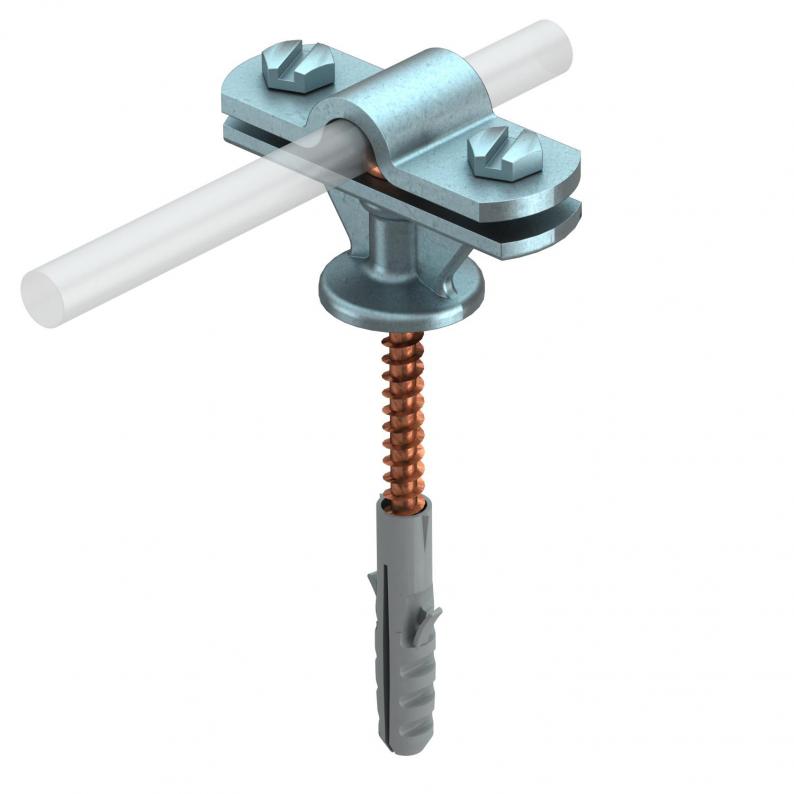

Cable bracket Rd 8–10 mm with wood screw, plastic anchor
Type 113 B-Z-HD | Item no. 5230322 | EAN 4012195629535
Item no. / Type
5230322 / 113 B-Z-HD
Smallest selling unit: 100 piece
100piece
Description
• With female thread M8 or through hole Ø 7 mm
• Over-piece installed with 2 hexagonal bolts
• Version HD with wood screws (5 x 60) and plastic dowels (8 x 40)
• Over-piece installed with 2 hexagonal bolts
• Version HD with wood screws (5 x 60) and plastic dowels (8 x 40)
Technical data
Technical data
| Thread metric | 8 |
|---|---|
| Holder fastening type | Drill hole with M-thread |
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Die-cast zinc |
| Material of the base | Die-cast zinc |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Die-cast zinc |
| Dimension | 8-10mm |
| Surface | galvanised |
| Material | Die-cast zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2787 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (3)
3D data downloads (2)
Tender specifications (2)
