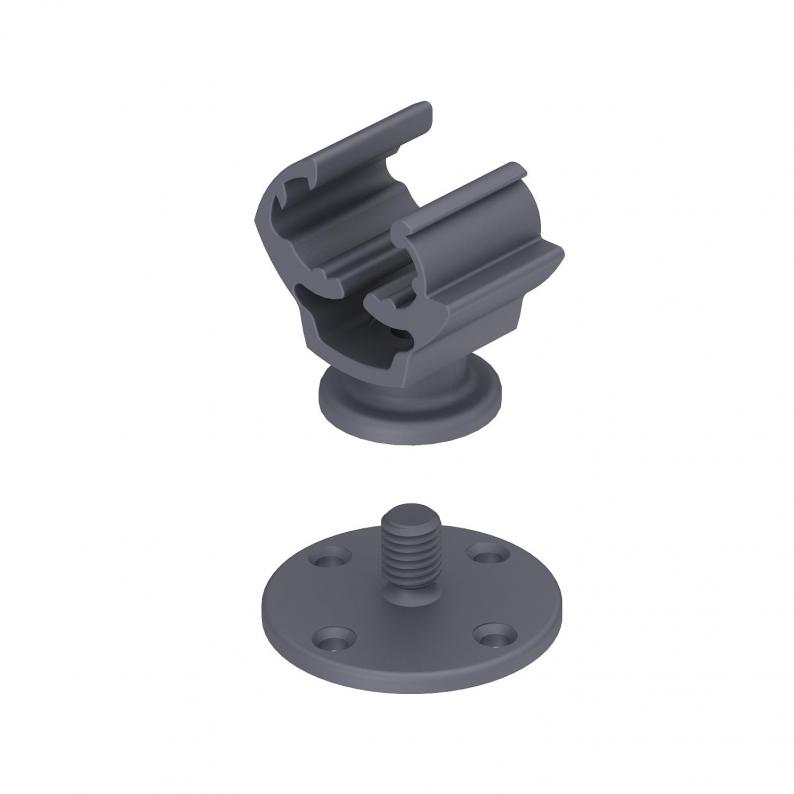

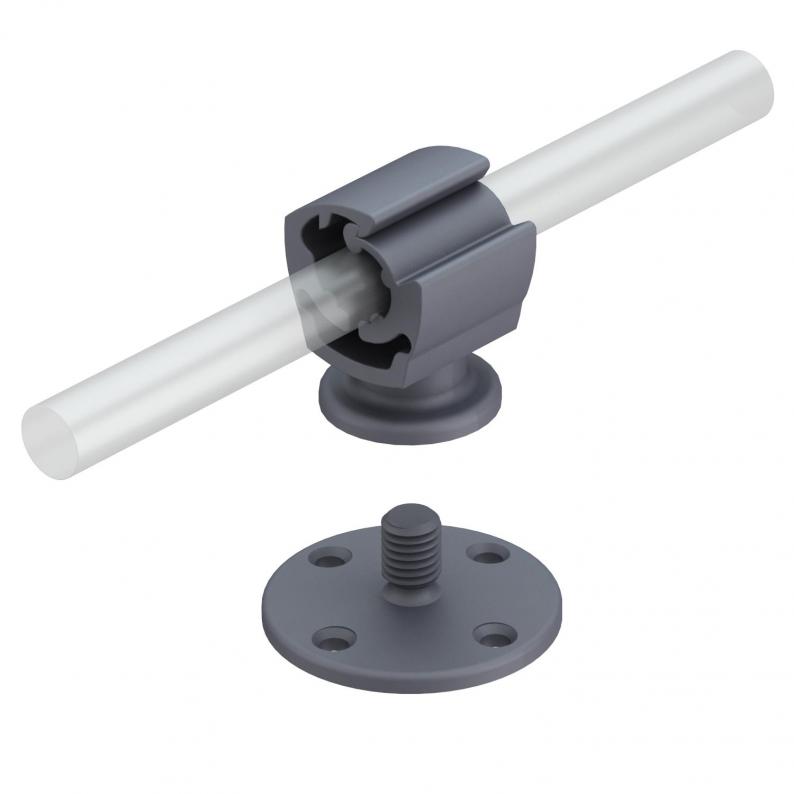

Cable bracket, Rd 8−10 mm with bonding base
Type 177 20 KL | Item no. 5207451 | EAN 4012195009726
Item no. / Type
5207451 / 177 20 KL
Smallest selling unit: 50 piece
50piece
Description
• For bonding to concrete, steel or smooth substrates
• Not suitable for rough surfaces such as plaster, wood, bitumen strips
• Processing at > +15 °C and on cleaned substrate
• When installing flat conductors and round conductors, expansion elements are to be used for thermal compensation
• Use on film roofs after consultation with the responsible roof construction company
• Not suitable for rough surfaces such as plaster, wood, bitumen strips
• Processing at > +15 °C and on cleaned substrate
• When installing flat conductors and round conductors, expansion elements are to be used for thermal compensation
• Use on film roofs after consultation with the responsible roof construction company
Technical data

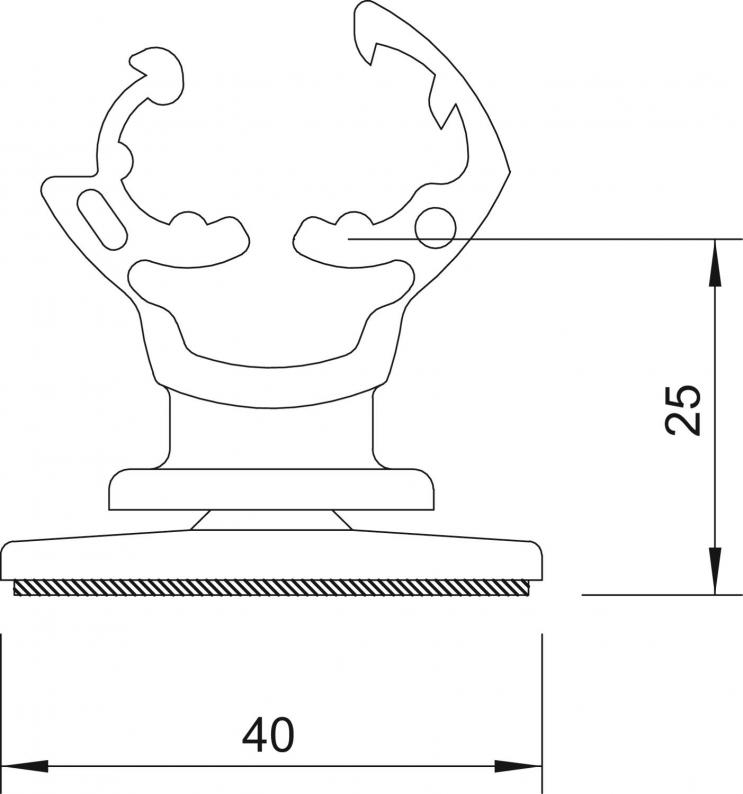

Dimensions
| Dimension H | 25 mm |
|---|
Technical data
| High voltage-resistant, insulated version | no |
|---|---|
| Material of the crossbar | Polyamide |
| Material of the base | Polyamide |
| Conductor fastening type | With clip |
| Use in Ex area | yes |
| Material of the holder | Polyamide |
| Dimension | M8 |
| Material | Polyamide |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0668 kg CO2e / 1 Piece |
