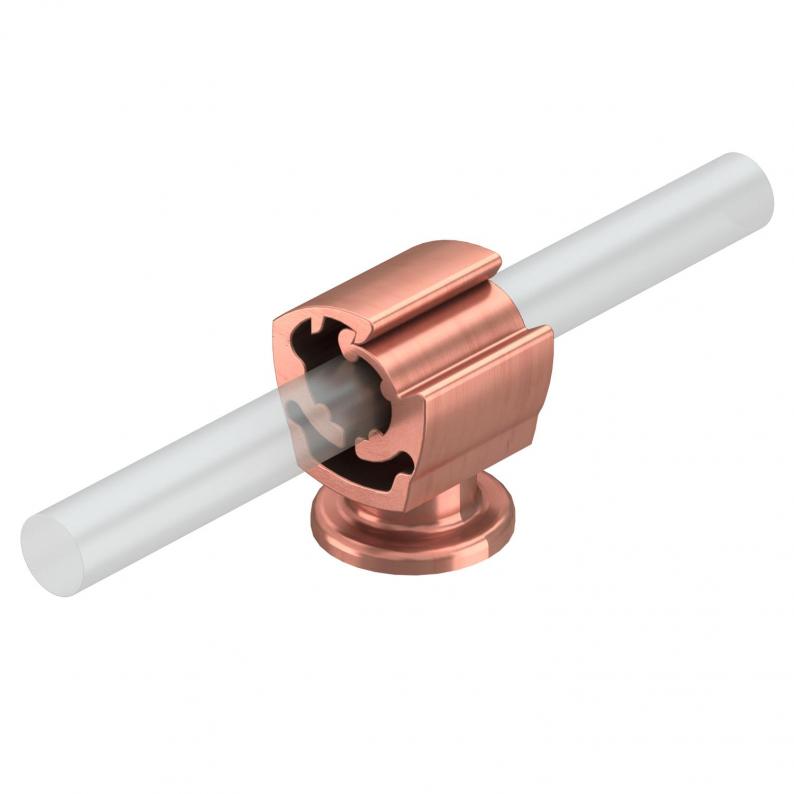

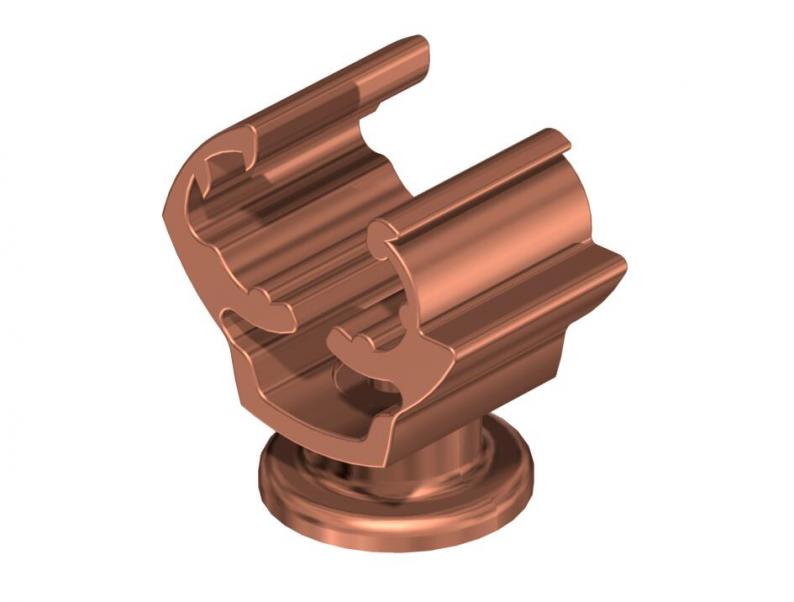

Cable bracket Rd 8–10 mm, copper-plated
Type 177 20 CU | Item no. 5207746 | EAN 4012195904991
Item no. / Type
Mounting height
Smallest selling unit: 10 piece
10piece
Description
• With female thread M8 for screwing and through hole for wood screws
• Colour: copper
• Weather and temperature-resistant from -35 °C to +90 °C
• Colour: copper
• Weather and temperature-resistant from -35 °C to +90 °C
Technical data
Technical data

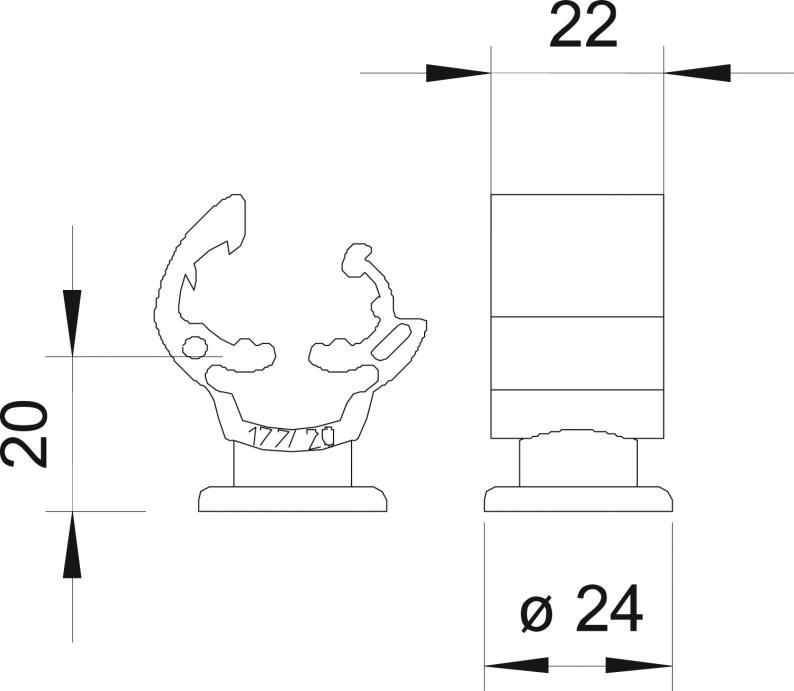

| Mounting height | 20 mm |
|---|---|
| Thread metric | 8 |
| Holder fastening type | Drill hole with M-thread |
| Material of the crossbar | Polyamide |
| Material of the base | Polyamide |
| Conductor fastening type | With clamp clip |
| Material of the holder | Polyamide |
| Dimension | 20mm |
| Material | Polyamide |
| Colour | Copper |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0335 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Mounting height
Item no.
177 20 CU
20
5207746
177 30 CU
30
5207754
177 55 CU
55
5207762
Mounting height
177 20 CU
Item no.
5207746
Mounting height
20
177 30 CU
Item no.
5207754
Mounting height
30
177 55 CU
Item no.
5207762
Mounting height
55
