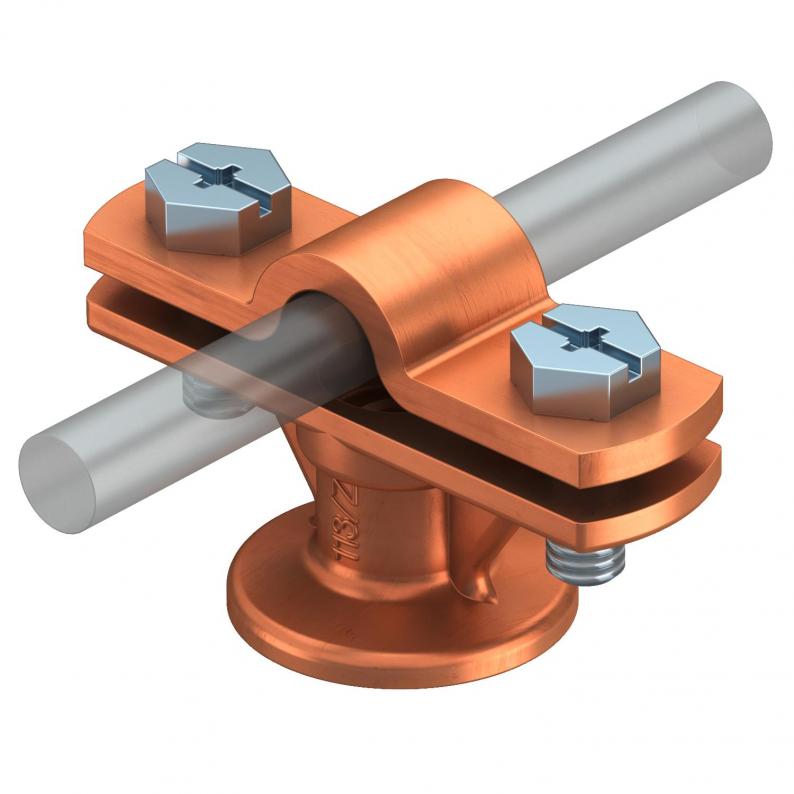

Cable bracket Rd 8–10 mm
Type 113 8-10 | Item no. 5230217 | EAN 4012195446231
Item no. / Type
5230217 / 113 8-10
Smallest selling unit: 20 piece
20piece
Description
• With female thread M8 or through hole Ø 7 mm
• Over-piece installed with 2 hexagonal bolts
• Over-piece installed with 2 hexagonal bolts
Technical data
Technical data
| Thread metric | 8 |
|---|---|
| Holder fastening type | Drill hole with M-thread |
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Die-cast zinc |
| Material of the base | Die-cast zinc |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Die-cast zinc |
| Dimension | 8-10mm |
| Surface | Copper-plated |
| Material | Die-cast zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1435 kg CO2e / 1 Piece |
