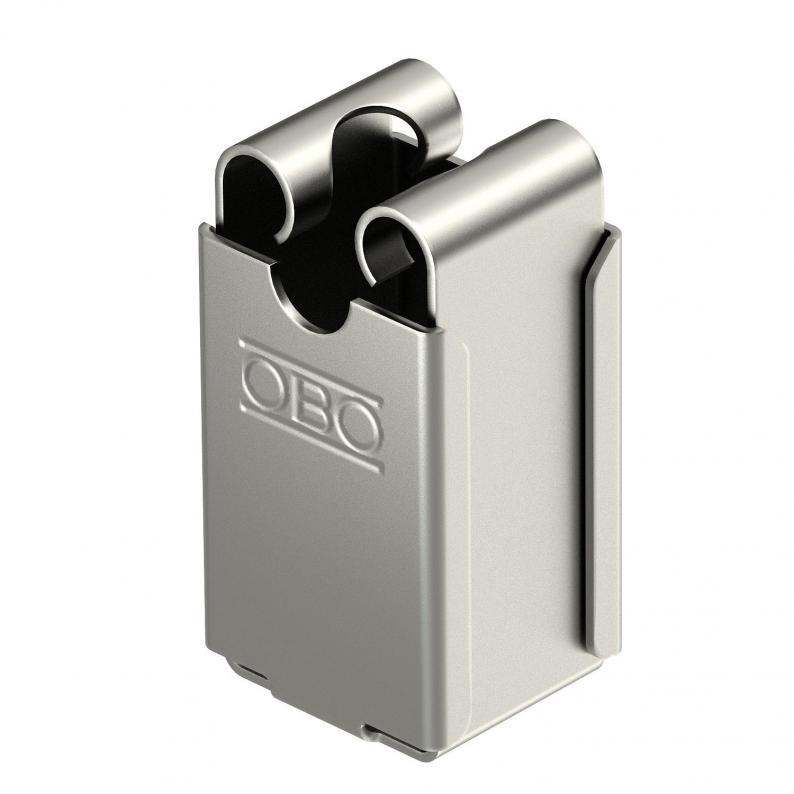

Cable bracket, raised construction type, for Rd 8 mm, through-way Ø 5 mm
Type 177 35 VA M6 | Item no. 5207342 | EAN 4012195735762
Item no. / Type
5207342 / 177 35 VA M6
Smallest selling unit: 20 piece
20piece
Description
• With female thread M6 or through hole Ø 5 mm
• From stainless steel (V2A)
• From stainless steel (V2A)
Technical data
Technical data
| Mounting height | 35 mm |
|---|---|
| Thread metric | 6 |
| Holder fastening type | Drill hole with M-thread |
| Conductor fastening type | With clip |
| Dimension | 8mm |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1331 kg CO2e / 1 Piece |

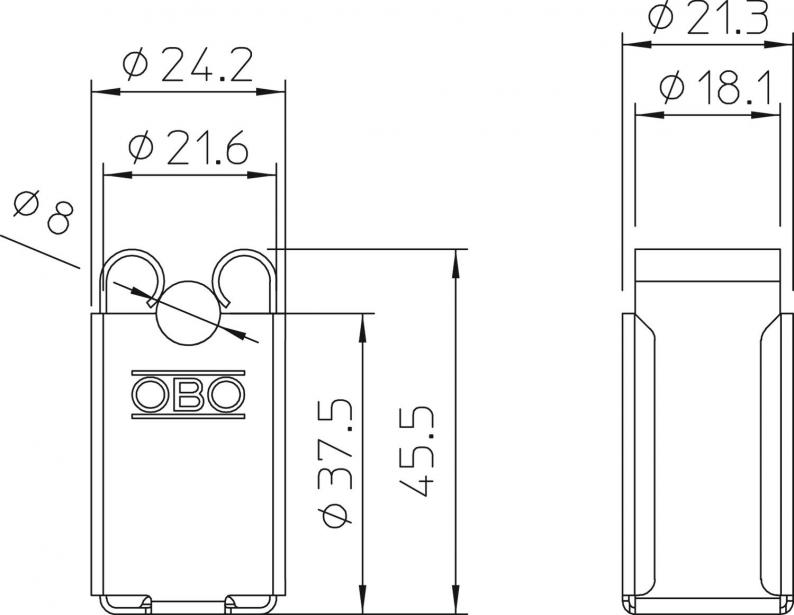

Dimensions
| Dimension G | M6 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Mounting height
Item no.
177 35 VA M6
35
5207342
177 35 VA M6
Item no.
5207342
Mounting height
35
