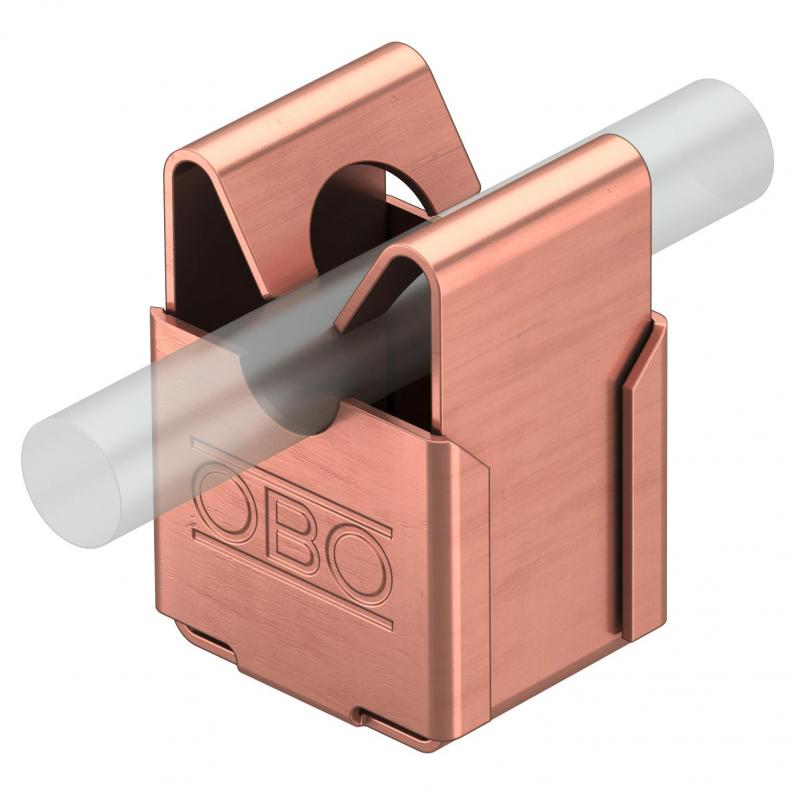

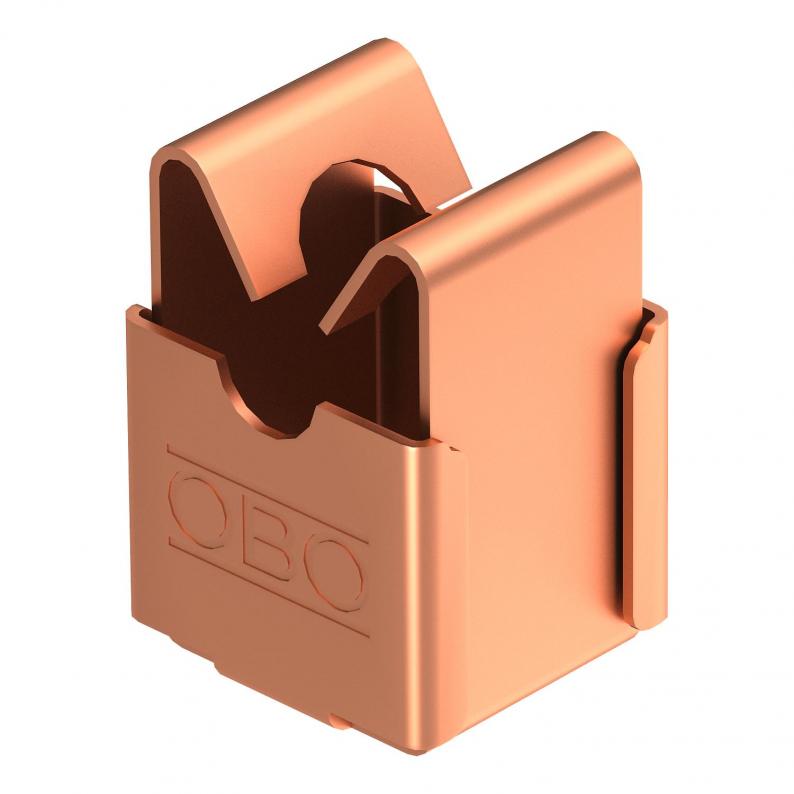

Cable bracket for Rd 8 mm, through-way Ø 5 mm, copper-plated
Type 177 20 VA-VK M6 | Item no. 5207800 | EAN 4012195904878
Item no. / Type
5207800 / 177 20 VA-VK M6
Smallest selling unit: 20 piece
20piece
Description
• With female thread M6 or through hole Ø 5 mm
• From stainless steel (V2A)
• VA-VK: copper-plated
• From stainless steel (V2A)
• VA-VK: copper-plated
Technical data
Technical data
| Mounting height | 20 mm |
|---|---|
| Thread metric | 6 |
| Holder fastening type | Drill hole with M-thread |
| Conductor fastening type | With clip |
| Dimension | 8mm |
| Surface | Copper-plated |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0055 kg CO2e / 1 Piece |
Dimensions
| Dimension G | M6 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Mounting height
Item no.
177 20 VA-VK M6
20
5207800
177 20 VA-VK M6
Item no.
5207800
Mounting height
20
