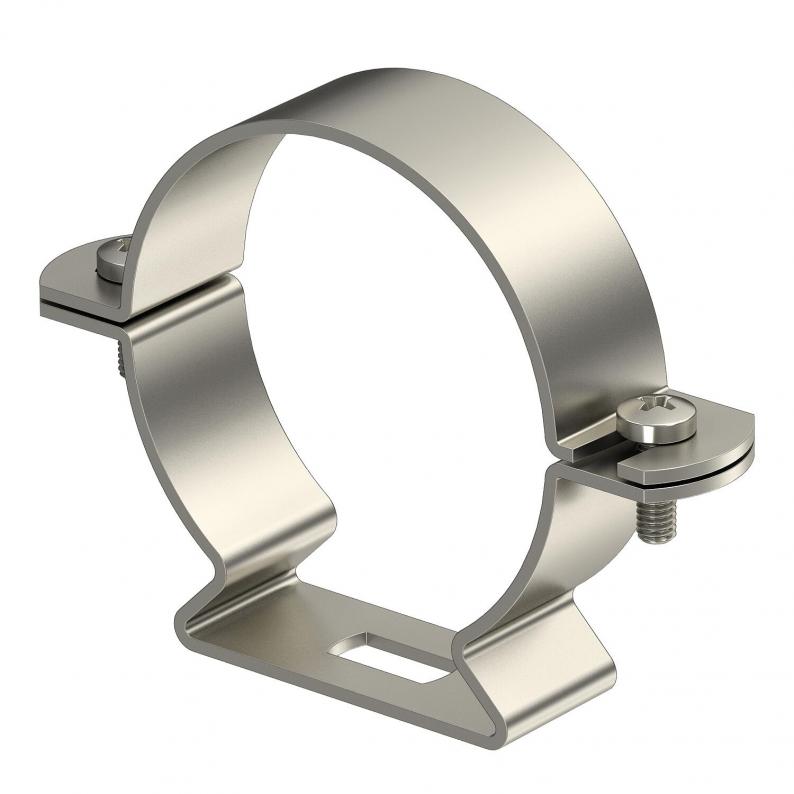

Cable and pipe spacer clip 733 V4A
Type 733 61 A4 | Item no. 1361679 | EAN 4012195912835
Item no. / Type
1361679 / 733 61 A4
Surface
Bright, treated
Material
Stainless steel 1.4571
This item is a discontinued product!
Smallest selling unit: 20 piece
20piece
Description
* Size M16 is not suitable for nail device.
* Sizes M16 to PG16 not suitable for bolt-firing tool.
* Sizes M16 to PG16 not suitable for bolt-firing tool.
Technical data
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Hole size | 6,5 x 14 mm |
| Halogen-free | yes |
| Size | Pg48 |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | yes |
| Number of cables/pipes | 1 |
| Bolt | M5 x 18 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Screw hole |
| Clamping range D, max. | 61 mm |
| Clamping range D, min. | 53 mm |
| Dimension | 53-61mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,353 kg CO₂e / 1 Piece |

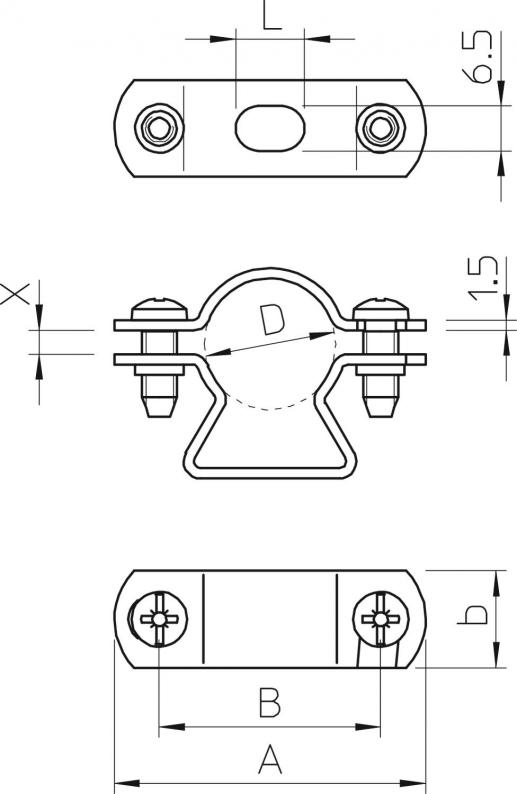

Dimensions
| Dimension L | 14 mm |
|---|---|
| Dimension A | 96 mm |
| Dimension B | 78 mm |
| Dimension b | 18 mm |
| Dimension x | 12,5 mm |
| Dimension D | 61 mm |
