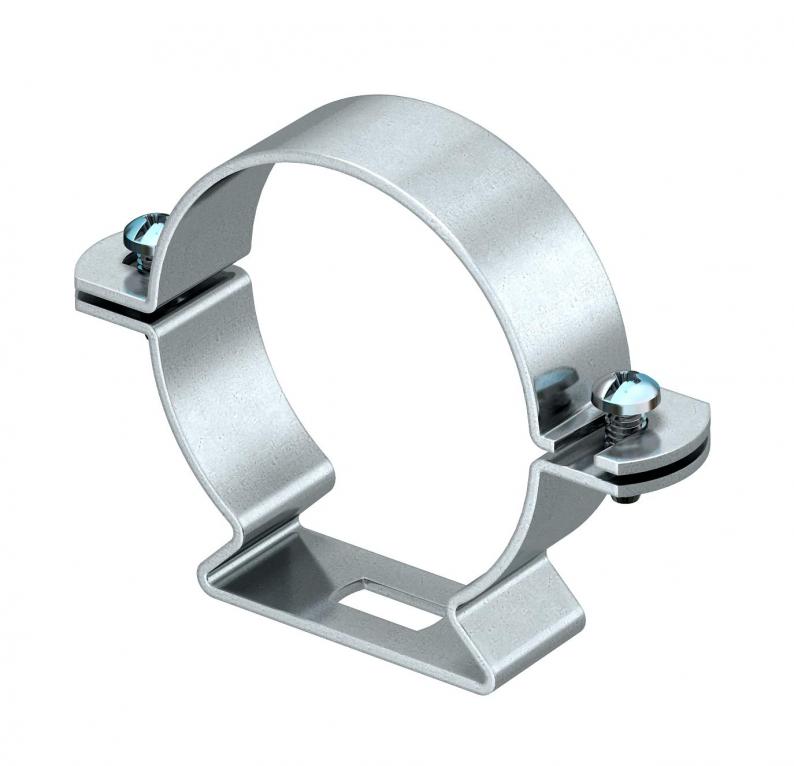

Cable and pipe spacer clip 733 FT
Type 733 13 FT | Item no. 1361091 | EAN 4012195029755
Item no. / Type
Material thickness
Hole size
Clamping range D, max.
Clamping range D, min.
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
Smallest selling unit: 50 piece
50piece
Description
* Size M16 is not suitable for nail device.
* Sizes M16 to PG16 not suitable for bolt-firing tool.
* Sizes M16 to PG16 not suitable for bolt-firing tool.
Technical data
Dimensions
| Length | 39 mm |
|---|---|
| Width | 14 mm |
| Dimension L | 10 mm |
| Dimension A | 39 mm |
| Dimension B | 26 mm |
| Dimension b | 14 mm |
| Dimension x | 2,5 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Hole size | 6,5 x 10 mm |
| Halogen-free | yes |
| Size | M12 |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Bolt | M5 x 12 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Screw hole |
| Clamping range D, max. | 13 mm |
| Clamping range D, min. | 11 mm |
| Dimension | 11-13mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0454 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Material thickness
Hole size
Clamping range D, max.
Clamping range D, min.
Surface
Material
Item no.
733 13 FT
1,5
6,5 x 10
13
11
Hot-dip galvanised
Steel
1361091
733 61 FT
1,5
6,5 x 14
61
53
Hot-dip galvanised
Steel
1361115
Hole size
Clamping range D, max.
Clamping range D, min.
733 13 FT
Item no.
1361091
Material thickness
1,5
Hole size
6,5 x 10
Clamping range D, max.
13
Clamping range D, min.
11
Surface
Hot-dip galvanised
Material
Steel
733 61 FT
Item no.
1361115
Material thickness
1,5
Hole size
6,5 x 14
Clamping range D, max.
61
Clamping range D, min.
53
Surface
Hot-dip galvanised
Material
Steel
