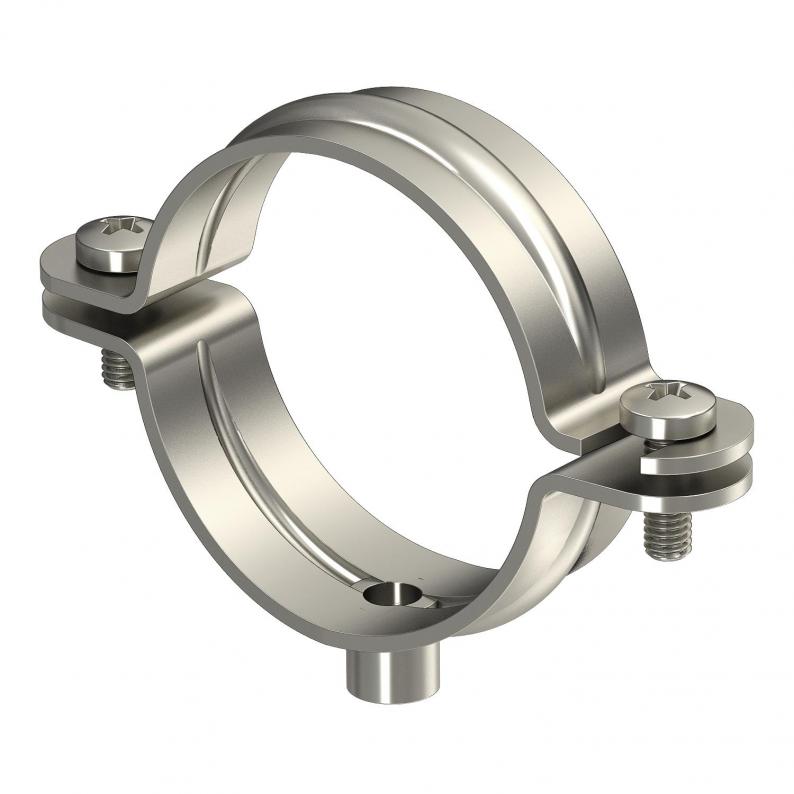

Cable and pipe spacer clip 732 with threaded connection V4A
Type 732 18 A4 | Item no. 1360658 | EAN 4012195912446
Item no. / Type
Material thickness
Hole size
Clamping range D, max.
Clamping range D, min.
Surface
Bright, treated
Material
Stainless steel 1.4571
This item is a discontinued product!
Smallest selling unit: 100 piece
100piece
Description
Mounting with screw-in spacer clips. Spacer clips and screw-in spacer clips are available in various materials: in V2A stainless steel, in electrogalvanised, hot-dip galvanised steel or in aluminium. Fastening can be take place with bolt ties or Angler anchors and Sprint screws.
Depending on the design, the clips can be "shot" using a bolt-firing tool or nail device.
Depending on the design, the clips can be "shot" using a bolt-firing tool or nail device.
Technical data

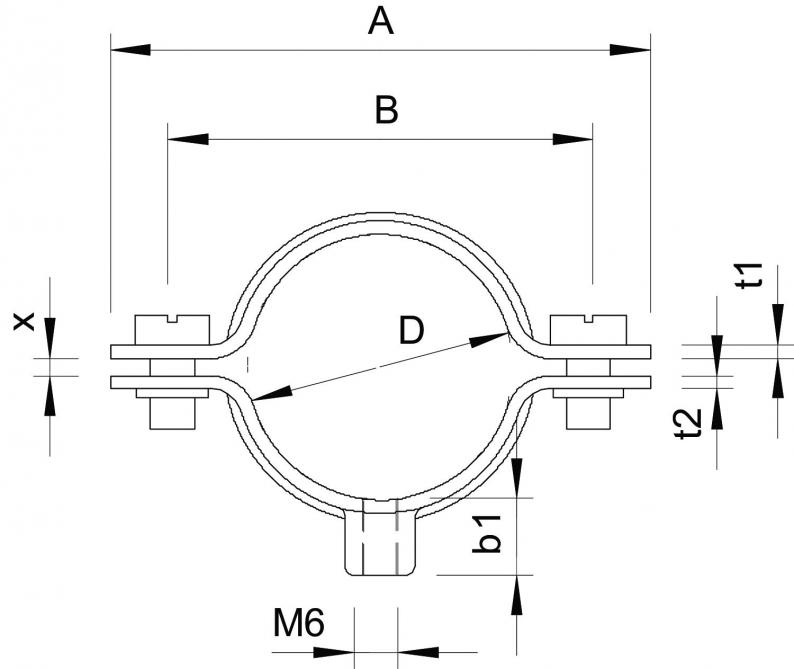

Dimensions
| Length | 44 mm |
|---|---|
| Dimension A | 44 mm |
| Dimension B | 32 mm |
| Dimension b1 | 9,8 mm |
| Dimension x | 1,5 mm |
| Dimension t1 (mm) | 1 |
| Dimension t2 (mm) | 1,25 |
Technical data
| Material thickness | 1 mm |
|---|---|
| Hole size | M6 mm |
| Halogen-free | yes |
| Size | PG11 |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | yes |
| Number of cables/pipes | 1 |
| Bolt | M5 x 12 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Threaded connection |
| Clamping range D, max. | 18 mm |
| Clamping range D, min. | 16,5 mm |
| Dimension | 16,5-18mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1501 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (4)
Product images (2)
Tender specifications (2)
Variants
Type
Material thickness
Hole size
Clamping range D, max.
Clamping range D, min.
Surface
Material
Item no.
732 18 A4
1
M6
18
16,5
Bright, treated
Stainless steel 1.4571
1360658
732 33 A4
1,5
M6
33
31
Bright, treated
Stainless steel 1.4571
1360672
732 38 A4
1,5
M6
38
36
Bright, treated
Stainless steel 1.4571
1360676
732 50 A4
1,5
M6
50
48
Bright, treated
Stainless steel 1.4571
1360686
732 60 A4
1,5
M6
60
58
Bright, treated
Stainless steel 1.4571
1360688
Material thickness
Clamping range D, max.
Clamping range D, min.
732 18 A4
Item no.
1360658
Material thickness
1
Hole size
M6
Clamping range D, max.
18
Clamping range D, min.
16,5
Surface
Bright, treated
Material
Stainless steel 1.4571
732 33 A4
Item no.
1360672
Material thickness
1,5
Hole size
M6
Clamping range D, max.
33
Clamping range D, min.
31
Surface
Bright, treated
Material
Stainless steel 1.4571
732 38 A4
Item no.
1360676
Material thickness
1,5
Hole size
M6
Clamping range D, max.
38
Clamping range D, min.
36
Surface
Bright, treated
Material
Stainless steel 1.4571
732 50 A4
Item no.
1360686
Material thickness
1,5
Hole size
M6
Clamping range D, max.
50
Clamping range D, min.
48
Surface
Bright, treated
Material
Stainless steel 1.4571
732 60 A4
Item no.
1360688
Material thickness
1,5
Hole size
M6
Clamping range D, max.
60
Clamping range D, min.
58
Surface
Bright, treated
Material
Stainless steel 1.4571
