C mesh cable tray CGR 50 A2
Type CGR 50 50 A2 | Item no. 6016200 | EAN 4012196012671
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
Description

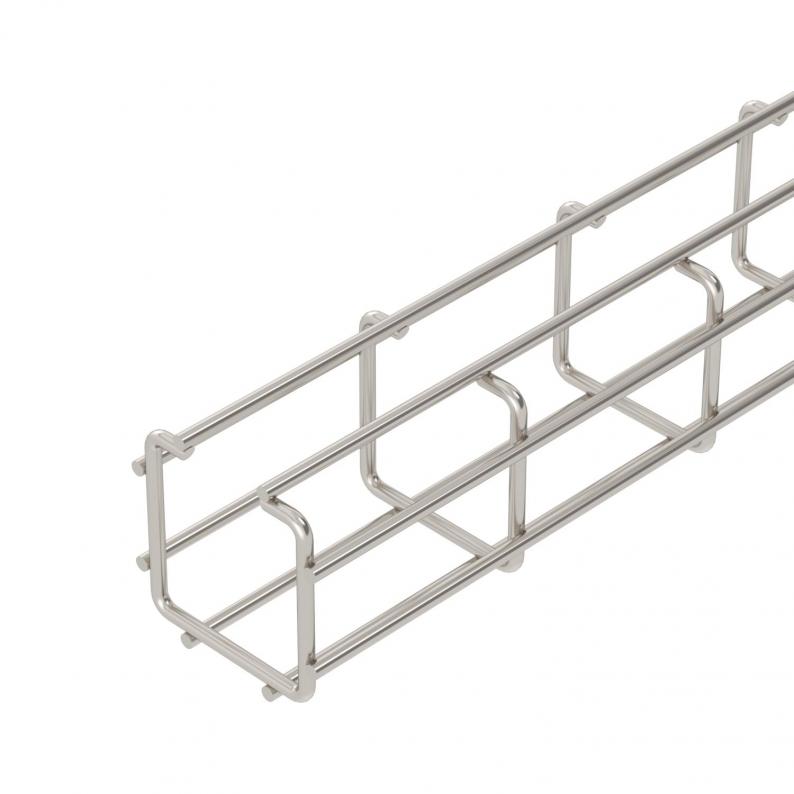

C-shaped mesh cable tray made of spot-welded steel wire of side height 50 mm.
Magnetic shield insulation 15 dB.
Magnetic shield insulation 15 dB.
Technical data

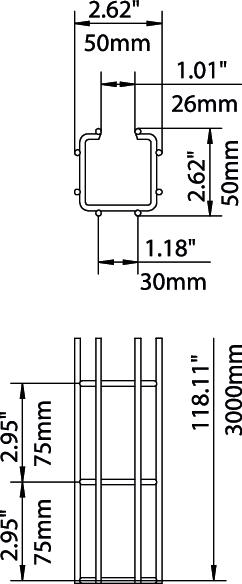

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 50 mm |

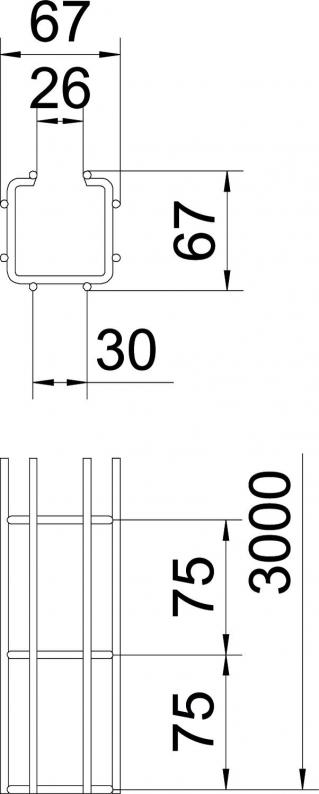

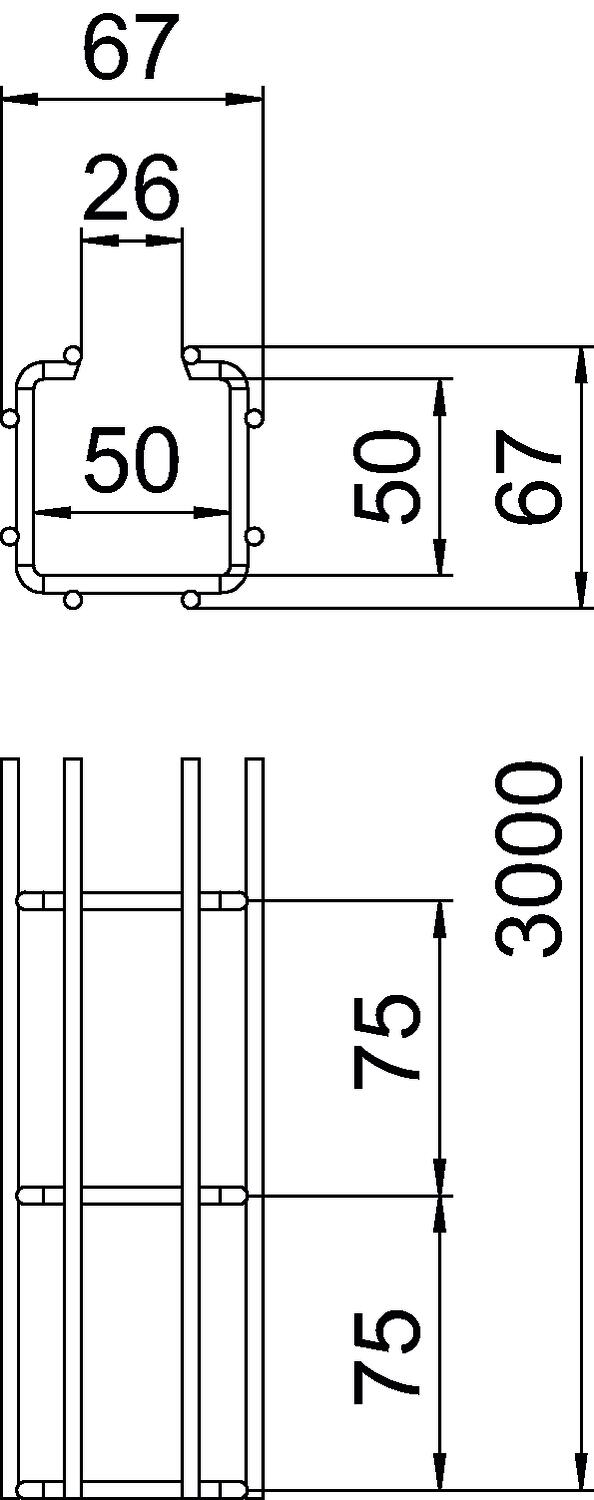

| Dimension A | 26 mm |
| Dimension B | 67 mm |
| Dimension H | 67 mm |
| Dimension l1 | 30 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 13 cm² |
| Rustproof steel, pickled | yes |
| Usable cross-section | 1300 mm² |
| Integrated partition | Without |
| Profile shape | C-shaped |
| Wire diameter | 4,5 mm |
| Dimension | 50x50x3000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,8716 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 0,35 kN/m |
|---|---|
| Support spacing 1.0 m | 0,95 kN/m |
| Support spacing 1.5 m | 0,6 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
