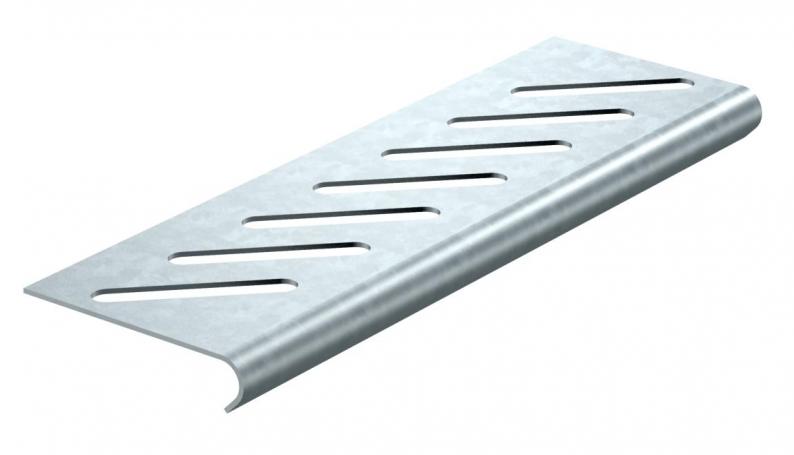

Bottom end plate DD

Bottom end plate DD

Type BEB 050 DD | Item no. 7083616 | EAN 4012196100934

Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Bottom end plate for floor reinforcement at the ends of the cable tray and as cable protection.

For fastening, please order screws, type FRSB M6x12, separately.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Wide span cable tray, side height, 110 mm
  • Wide span cable tray, side height, 160 mm
  • CO₂ footprint (PCF)

Technical data

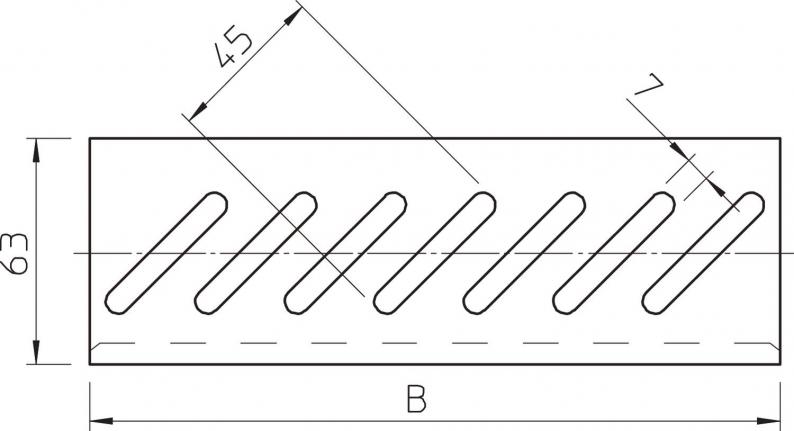

Dimensions

Width50 mm
Dimension B50 mm

Technical data

Maintain electrical functionsno
Wide-span versionno
Rustproof steel, pickledno
DimensionB50mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,0913 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
BEB 050 DD
Item no.
7083616
Width
50
BEB 100 DD
Item no.
7083618
Width
100
BEB 150 DD
Item no.
7083622
Width
150
BEB 200 DD
Item no.
7083626
Width
200
BEB 300 DD
Item no.
7083630
Width
300
BEB 400 DD
Item no.
7083634
Width
400
BEB 500 DD
Item no.
7083638
Width
500
BEB 550 DD
Item no.
7083640
Width
550
BEB 600 DD
Item no.
7083642
Width
600
