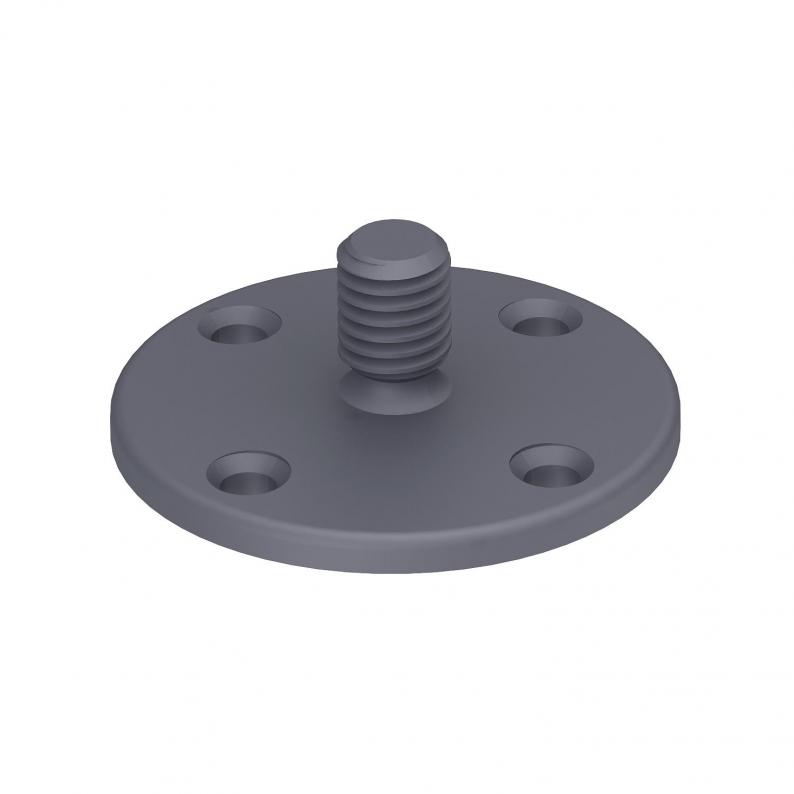

Bonding base including industrial bonding pad
Type 194 K | Item no. 5207266 | EAN 4012195110392
Item no. / Type
5207266 / 194 K
Thread
M8
Smallest selling unit: 20 piece
20piece
Description
• With threaded stem M8
• For mounting cable supports with M8 female thread
• For bonding to concrete, steel or smooth substrates
• Not suitable for rough surfaces such as plaster, wood, bitumen strips
• Processing at > +15 °C and on cleaned substrate
• When installing flat conductors and round conductors, expansion elements are to be used for thermal compensation
• Use on film roofs after consultation with the responsible roof construction company
• For mounting cable supports with M8 female thread
• For bonding to concrete, steel or smooth substrates
• Not suitable for rough surfaces such as plaster, wood, bitumen strips
• Processing at > +15 °C and on cleaned substrate
• When installing flat conductors and round conductors, expansion elements are to be used for thermal compensation
• Use on film roofs after consultation with the responsible roof construction company
Technical data
Technical data
| Thread | M8 |
|---|---|
| Dimension | M8 |
| Material | Polyamide |
| Colour | Grey |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,024 kg CO2e / 1 Piece |
