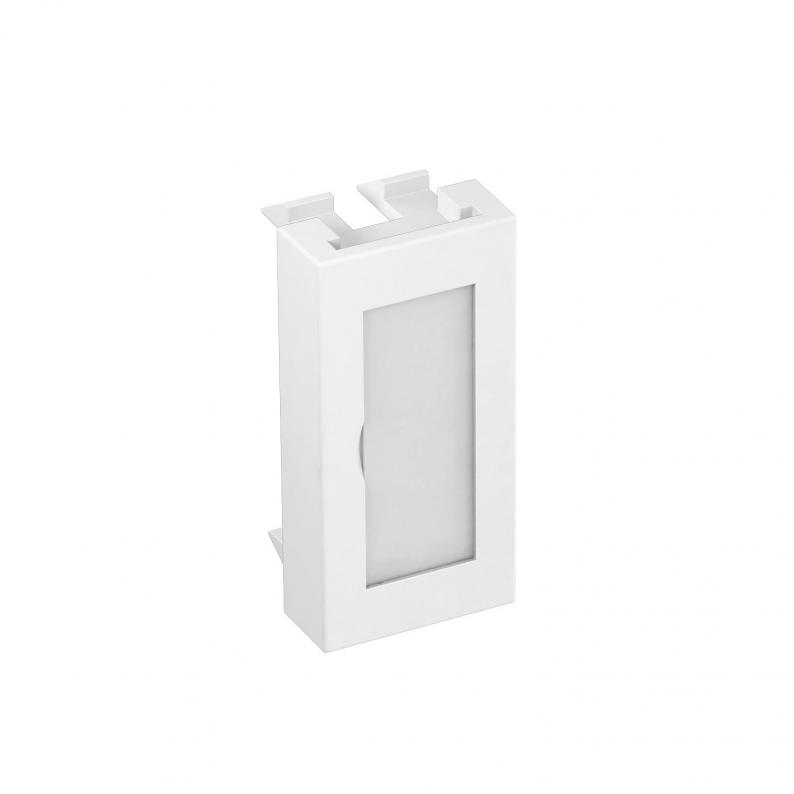

Blanking cover with labelling panel, 1/2 module

Type ADP-BF RW0.5 | Item no. 6117410 | EAN 4012196164813

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Show all variants

Item no. / Type

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Blanking cover with labelling panel, suited for labelling devices in Rapid 45 device installation trunking systems and ISS service poles with a 45 mm system opening.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Technical data

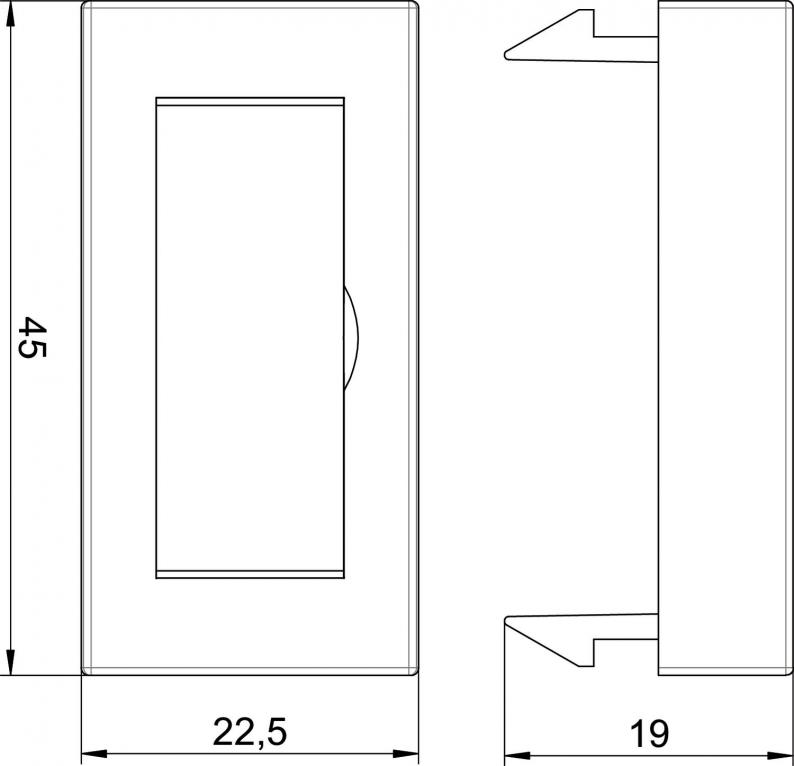

Dimensions

Width	22,5 mm
Height	45 mm

Technical data

Hinged cover	no
Text field/inscription field	yes
Halogen-free	no
Number of units	0
Protection rating	Other
Suitable for flush-mounted installations	no
Suitable for underfloor duct socket	no
Suitable for device installation ducts	yes
Suitable for built-in installations	no
Flush-mounted version	yes
Depth	9 mm
Surface version	Matt
Mounting direction	Horizontal
Transparent	yes
Number of units, horizontal	0
Anzahl der Einheiten vertikal	0
Fastening type	Clamp fastening
Dimension	45x22,5mm
Material	Polycarbonate
Colour	Pure white; RAL 9010
Antibacterial treatment	no
Printed push-button label	Without
Version for cover/operating element for installation switch programme	Blanking cover
Scannable symbol/barrier-free [Bitte prüfen, ob so gemeint. Ist das technische Scannen gemeint oder aber das Fühlen vom Symbol mit den Fingern (für Blinde, da hier auch von barrierefrei gesprochen wird)]	no
Changeable lense/symbol	no
Use of cover/operating element for installation switch programme	Panel
CO2 Footprint (GWP) Cradle-to-Gate	0,0744 kg CO2e / 1 Piece
