Black powder-coated steel bend, with thread

Black powder-coated steel bend, with thread

Type SBNM40 SW
|
Item no. 2046797
|
EAN 4012196387762
Show all variants
Item no. / Type
Thread

Smallest selling unit: 15 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

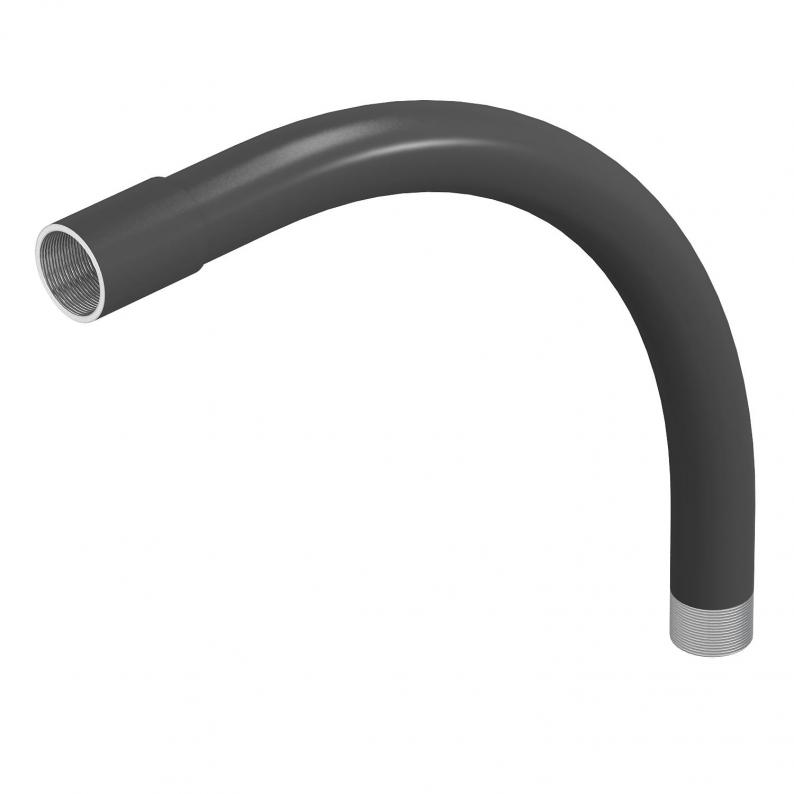

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Dimension A89 mm
Dimension B279 mm
Dimension t1,6 mm
Dimension m (mm)M40
Dimension l20,5 mm
Dimension R170 mm
Dimension D40 mm

Technical data

Halogen-freeno
ThreadM40x1,5
Angle of the bend90 °
Polished surfaceno
With sleeveyes
Flexibleno
Brushed surfaceno
With inspection opening and lidno
Two-partno
For nominal pipe diameter40 mm
Version forThread
DimensionM40x1,5
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005
CO2 Footprint (GWP) Cradle-to-Gate1,7049 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Thread
SBNM16 SW
Item no.
2046793
Thread
M16x1,5
SBNM20 SW
Item no.
2046794
Thread
M20x1,5
SBNM25 SW
Item no.
2046795
Thread
M25x1,5
SBNM32 SW
Item no.
2046796
Thread
M32x1,5
SBNM40 SW
Item no.
2046797
Thread
M40x1,5
SBNM50 SW
Item no.
2046798
Thread
M50x1,5
SBNM63 SW
Item no.
2046799
Thread
M63x1,5
