Beam clamp with pressure plate, horizontal BFK 153 FT
Type BFKD 153 44 FT | Item no. 6003885 | EAN 4012196609215
Item no. / Type
6003885 / BFKD 153 44 FT
Smallest selling unit: 10 piece
10piece
Description

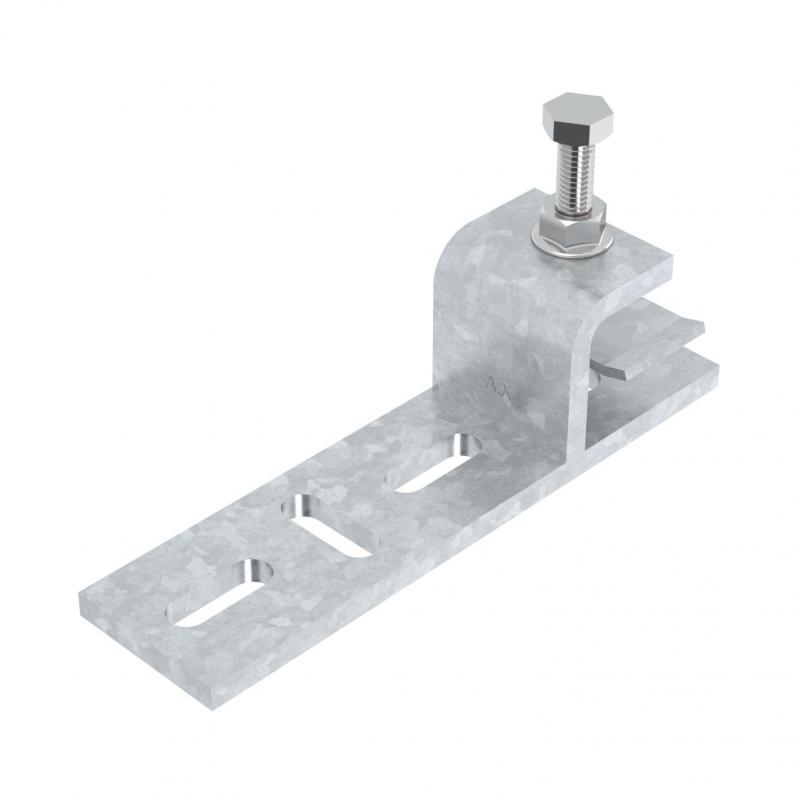

Beam clamp with pressure plate for clamping on the steel girder.
The cable support system attached to the beam clamp runs horizontally.
Technical data

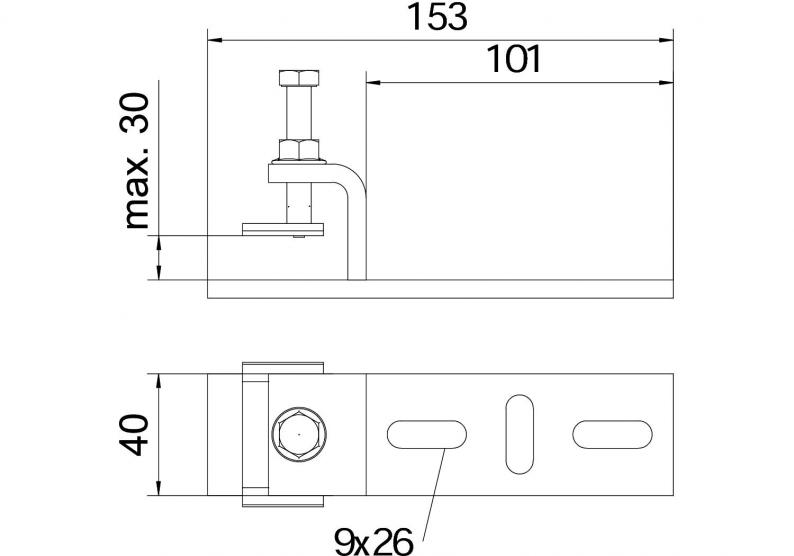

Dimensions
| Width | 153 mm |
|---|---|
| Height | 28 mm |
| Dimension B | 153 mm |
| Dimension b | 101 mm |
| Dimension B1 | 101 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Material thickness | 6 mm |
| Adjustable | yes |
| With screw accessories | no |
| Suitable for profile shapes | C profile |
| Version for | Miscellaneous |
| Dimension | 153x40x44mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0676 kg CO2e / 1 Piece |
