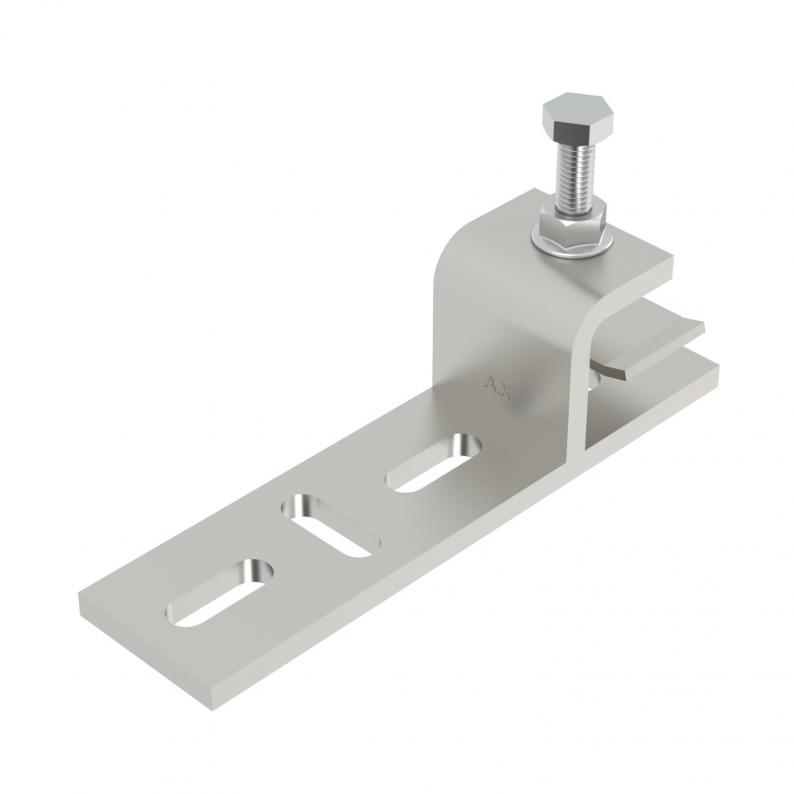

Beam clamp with pressure plate, horizontal BFK 153 A2
Type BFKD 153 44 A2
|Item no. 6003887
|EAN 4012196625352
Item no. / Type
6003887 / BFKD 153 44 A2
Smallest selling unit: 10 piece
10piece
piece
Description
Fastening clamp with pressure plate for clamping on the steel girder.
The cable support system attached to the fastening clamp runs horizontally.
Technical data

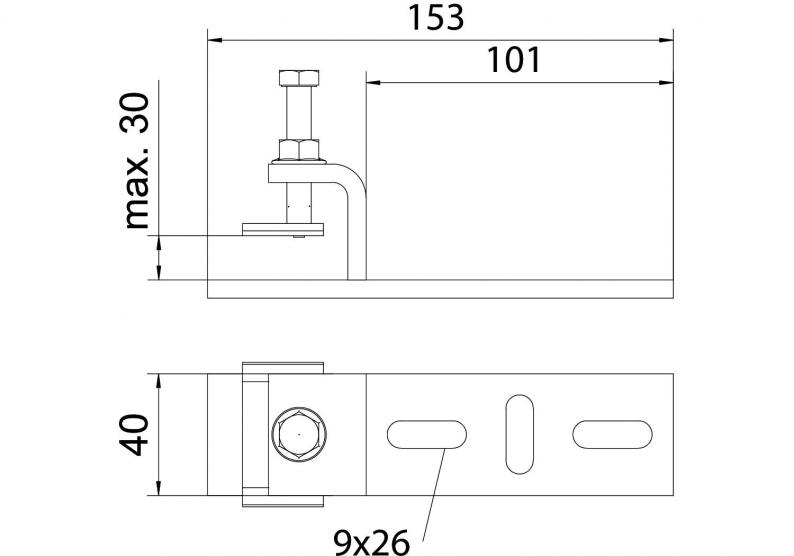

Dimensions
| Width | 153 mm |
|---|---|
| Height | 28 mm |
| Dimension B | 153 mm |
| Dimension b | 101 mm |
| Dimension B1 | 101 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Material thickness | 6 mm |
| Adjustable | yes |
| With screw accessories | no |
| Suitable for profile shapes | C profile |
| Version for | Miscellaneous |
| Dimension | 153x40x44mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,4909 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Dimension b
Item no.
BFKD 153 44 A2
101
6003887
BFKD 153 44 A2
Item no.
6003887
Dimension b
101
