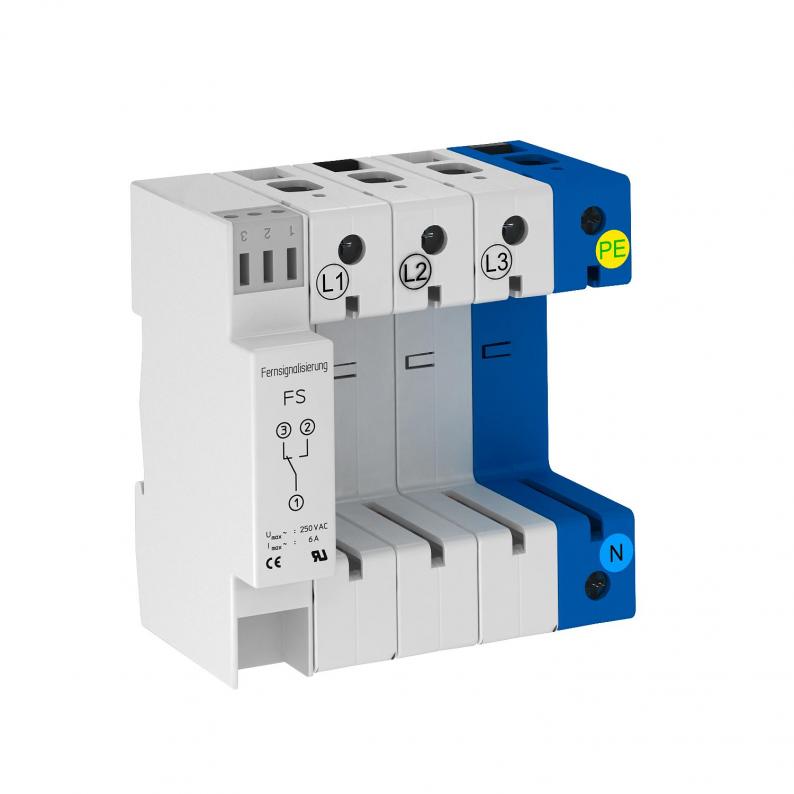

Base V20 and V25 3pole +NPE with remote signaling
Type V20-C U-3+NPE-FS
|Item no. 5095859
|EAN 4012195726074
Item no. / Type
5095859 / V20-C U-3+NPE-FS
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
Base
• Suitable for V 25-B+C or V 20-C and C 25-B+C
• With remote signalling and potential-free changeover contact for function monitoring
• Pre-mounted and ready for connection
• With protection against incorrect insertion
• For TN-S and TT network systems
• Labelled connections
• Suitable for V 25-B+C or V 20-C and C 25-B+C
• With remote signalling and potential-free changeover contact for function monitoring
• Pre-mounted and ready for connection
• With protection against incorrect insertion
• For TN-S and TT network systems
• Labelled connections
Technical data
Technical data
| Signalling on device | None |
|---|---|
| Protection rating | IP20 |
| Remote signalling | yes |
| Pole version | 3+N/PE |
| Version for | 3-pole with NPE; with RS; base |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |

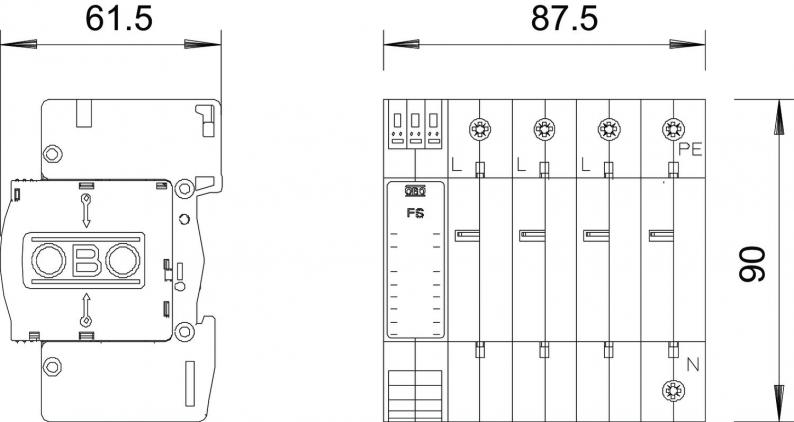

| Dimension | 3+NPE+FS |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,16 kg CO2e / 1 Piece |
Connectivity options
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
|---|
