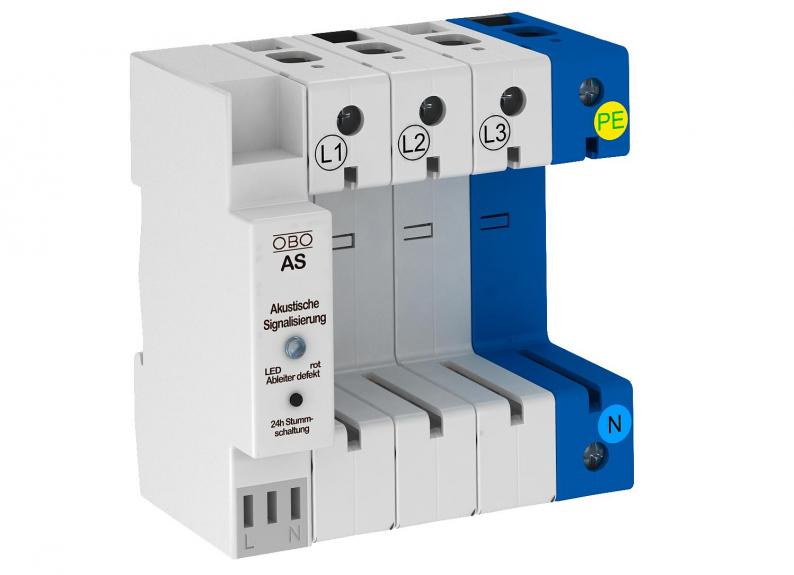

Base, MultiBase with acoustic signalling
Type V20-C U-3+NPE-AS
|Item no. 5096372
|EAN 4012195247104
Item no. / Type
Smallest selling unit: 1 piece
1piece
piece
Description
• Suitable for V 25-B+C, V 20-C and V 10-C
• With remote signalling, potential-free changeover contact, for function monitoring
• With acoustic signalling for function monitoring, signal tone can be shut down for 24 h
• Pre-mounted and ready for connection
• With remote signalling, potential-free changeover contact, for function monitoring
• With acoustic signalling for function monitoring, signal tone can be shut down for 24 h
• Pre-mounted and ready for connection
Technical data
Technical data
| Network form | Other |
|---|---|
| Signalling on device | Optical and acoustic |
| Protection rating | IP20 |
| Remote signalling | yes |
| Pole version | 3+N/PE |
| Installation type | DIN rail 35 mm |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Dimension | 3+NPE+AS |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4102 kg CO2e / 1 Piece |
Connectivity options
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
|---|
